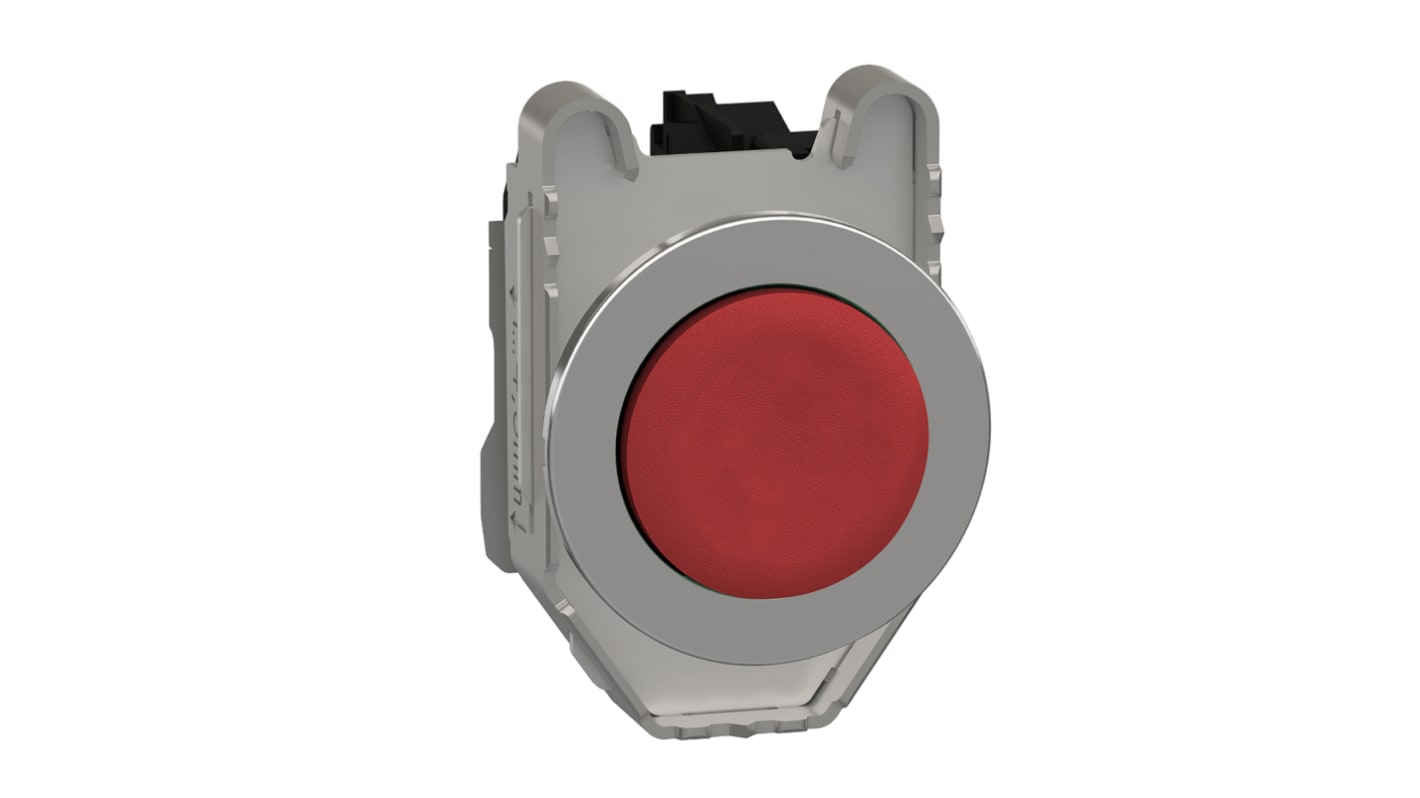

Schneider Electric XB4 Series Push Button Switch, Spring Return, Panel, 30 mm Cutout, SPST, Red LED, 600 V 240 V
- RS Stock No.:
- 185-3720
- Mfr. Part No.:
- XB4FL42
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£18.18
(exc. VAT)
£21.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.18 |
*price indicative
- RS Stock No.:
- 185-3720
- Mfr. Part No.:
- XB4FL42
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Actuator Colour | Red | |
| Product Type | Push Button Switch | |
| Switch Operation | Spring Return | |
| Series | XB4 | |
| Panel Cutout Size | 30 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| LED Colour | Red | |
| Terminal Type | Screw | |
| Contact AC Voltage | 240V | |
| Contact DC Voltage | 600V | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Round | |
| Switch Configuration | 1 NC | |
| Maximum Operating Temperature | 70°C | |
| Width | 36.6 mm | |
| Switch Contact Current | 10 A | |
| Length | 57mm | |
| Height | 47mm | |
| Standards/Approvals | CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60947-5-4UL 508EN/IEC 60947-1JIS C8201-5-1JIS C8201-1 | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Actuator Colour Red | ||
Product Type Push Button Switch | ||
Switch Operation Spring Return | ||
Series XB4 | ||
Panel Cutout Size 30 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
LED Colour Red | ||
Terminal Type Screw | ||
Contact AC Voltage 240V | ||
Contact DC Voltage 600V | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Round | ||
Switch Configuration 1 NC | ||
Maximum Operating Temperature 70°C | ||
Width 36.6 mm | ||
Switch Contact Current 10 A | ||
Length 57mm | ||
Height 47mm | ||
Standards/Approvals CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60947-5-4UL 508EN/IEC 60947-1JIS C8201-5-1JIS C8201-1 | ||
Legend Blank | ||
Operating temperature from -40°C –to 70°C
High vibration resistance with shake-proof terminal screws
Large set of accessories to customize your panels
Various types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching)
Benefits
High performance even in the most demanding environments
Attractive design, reinforced with the flush mounting kit
Flexibility and adaptability through modular design
Simplicity and speed of installation
Wide offer providing a solution for all your applications
Applications
General purpose offer covering all segments and applications Industry
Machines and control panels in packaging, material handling, material working, pumping, etc.
Ideal in extreme environments: food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure
Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.
Flush mounted red projecting pushbutton 1NC "unmarked" screw clamp
