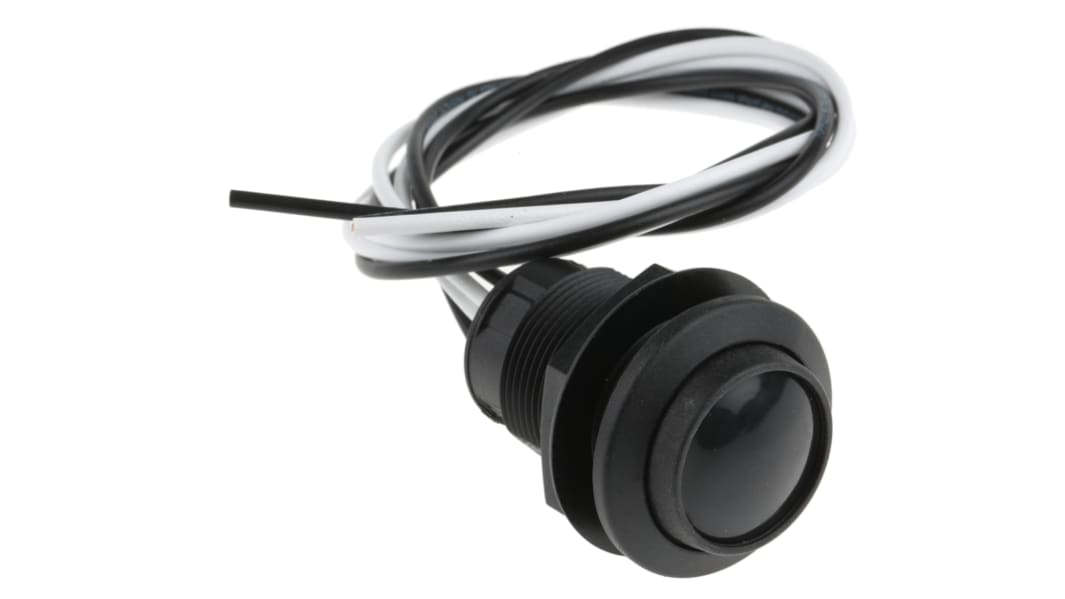

ITW Switches 49-76 Series Push Button Switch, Momentary, Panel Mount, 30.5mm Cutout, SPST, Clear LED, 250V ac, IP67
- RS Stock No.:
- 315-9745
- Mfr. Part No.:
- 49-769026
- Brand:
- ITW Switches
Available to back order for despatch 27/05/2024
Added
Price Each
£17.04
(exc. VAT)
£20.45
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £17.04 |
| 10 - 49 | £15.67 |
| 50 - 99 | £14.49 |
| 100 - 249 | £13.29 |
| 250 + | £11.07 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 315-9745
- Mfr. Part No.:
- 49-769026
- Brand:
- ITW Switches
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BZ
Product Details
IP67 Fully Sealed Pushbutton Switches
Fully back sealed
SPNO contacts rated at 6A 250Vac resistive
Supplied with 0.5m flying leads
Dimensions: Depth behind panel: 46mm, max. panel thickness 22mm, panel cut-out 30.5mm
SPNO contacts rated at 6A 250Vac resistive
Supplied with 0.5m flying leads
Dimensions: Depth behind panel: 46mm, max. panel thickness 22mm, panel cut-out 30.5mm
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 30.5mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Black |
| Contact Configuration | SPST |
| Voltage Rating | 250V ac |
| Push Button Style | Dome |
| LED Colour | Clear |
| IP Rating | IP67 |
| Series | 49-76 |
| Contact Current Rating | 6 A @ 250 V ac |
| Contact Material | Gold Plated |
| Contact AC Voltage Rating | 250V |
| Manufacturer Part No. | 49-769026 |
| Case Colour | Black |
| Terminal Type | Wire Lead |
| Operating Temperature Range | -40 → +80°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
