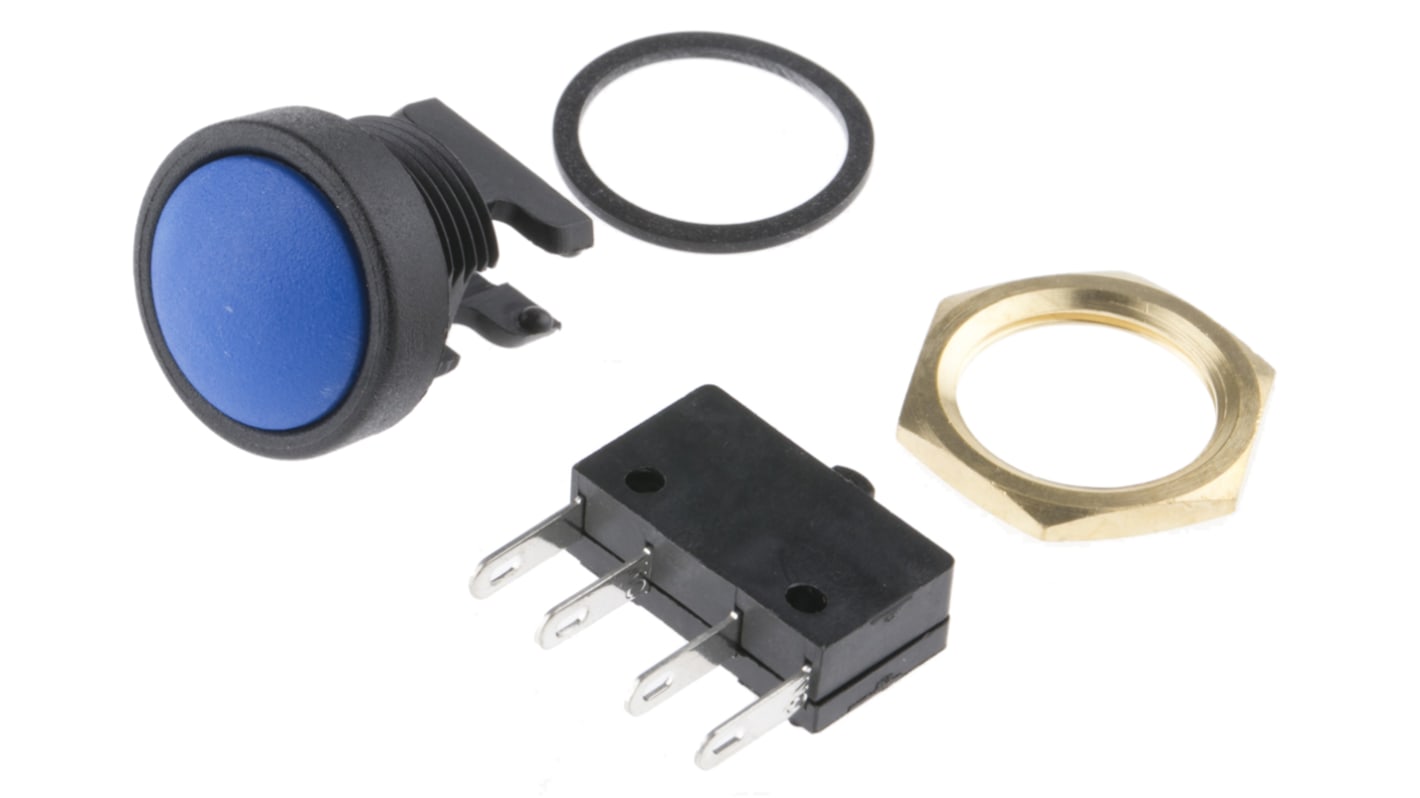

ITW Switches 49-59 Series Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Clear LED, 250V ac, IP67
- RS Stock No.:
- 197-7642
- Mfr. Part No.:
- 49-59126
- Brand:
- ITW Switches
823 In stock - FREE next working day delivery available
Added
Price Each
£10.25
(exc. VAT)
£12.30
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £10.25 |
| 10 - 49 | £9.43 |
| 50 - 99 | £8.71 |
| 100 - 249 | £8.00 |
| 250 + | £7.67 |
- RS Stock No.:
- 197-7642
- Mfr. Part No.:
- 49-59126
- Brand:
- ITW Switches
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BZ
Product Details
High Current Sealed Pushbuttons
The 49-59 series offers a wide selection of options suitable for use in a wide variety of applications. They are panel sealed to IP67 making them ideal for harsh environments. They have a wide selection of colours, illuminated or non-illuminated options and tabs or insulated leads. They are all panel mounted through a 16mm panel cut out.
Panel mount pushbuttons with rear mounted microswitches that snap into place from the rear after assembly of the actuator
UL94V-Ø rated body and button
Form Z (1 N/O + 1 N/C) contact
Panel sealed to IP67
Max.Panel thickness 1.5 mm
UL94V-Ø rated body and button
Form Z (1 N/O + 1 N/C) contact
Panel sealed to IP67
Max.Panel thickness 1.5 mm
Approvals
UL
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 16mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Blue |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Dome |
| LED Colour | Clear |
| IP Rating | IP67 |
| Series | 49-59 |
| Contact Current Rating | 10 A @ 250 V ac |
| Contact Material | Silver |
| Contact AC Voltage Rating | 250V |
| Manufacturer Part No. | 49-59126 |
| Case Colour | Stainless Steel |
| Contact DC Voltage Rating | 50V |
| Operating Temperature Range | -35 → +85°C |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -35°C |
| Terminal Type | Solder |
