Idec MW Series Push Button Switch, Momentary, Panel, 22 mm Cutout, DPDT, IP66 110 V ac
- RS Stock No.:
- 210-4186
- Mfr. Part No.:
- MW1B-M32G
- Brand:
- Idec
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£32.91
(exc. VAT)
£39.49
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £32.91 |
| 5 - 9 | £31.26 |
| 10 - 49 | £29.67 |
| 50 + | £28.23 |
*price indicative
- RS Stock No.:
- 210-4186
- Mfr. Part No.:
- MW1B-M32G
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Series | MW | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | DPDT | |
| IP Rating | IP66 | |
| Minimum Operating Temperature | -25°C | |
| Contact AC Voltage | 110V ac | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | Maintained, Momentary | |
| Switch Contact Current | 10A | |
| Standards/Approvals | CCC, EN, JIS C4520-1991, IEC 60529 | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated No | ||
Series MW | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration DPDT | ||
IP Rating IP66 | ||
Minimum Operating Temperature -25°C | ||
Contact AC Voltage 110V ac | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration Maintained, Momentary | ||
Switch Contact Current 10A | ||
Standards/Approvals CCC, EN, JIS C4520-1991, IEC 60529 | ||
Legend Blank | ||
Non Compliant
- COO (Country of Origin):
- JP

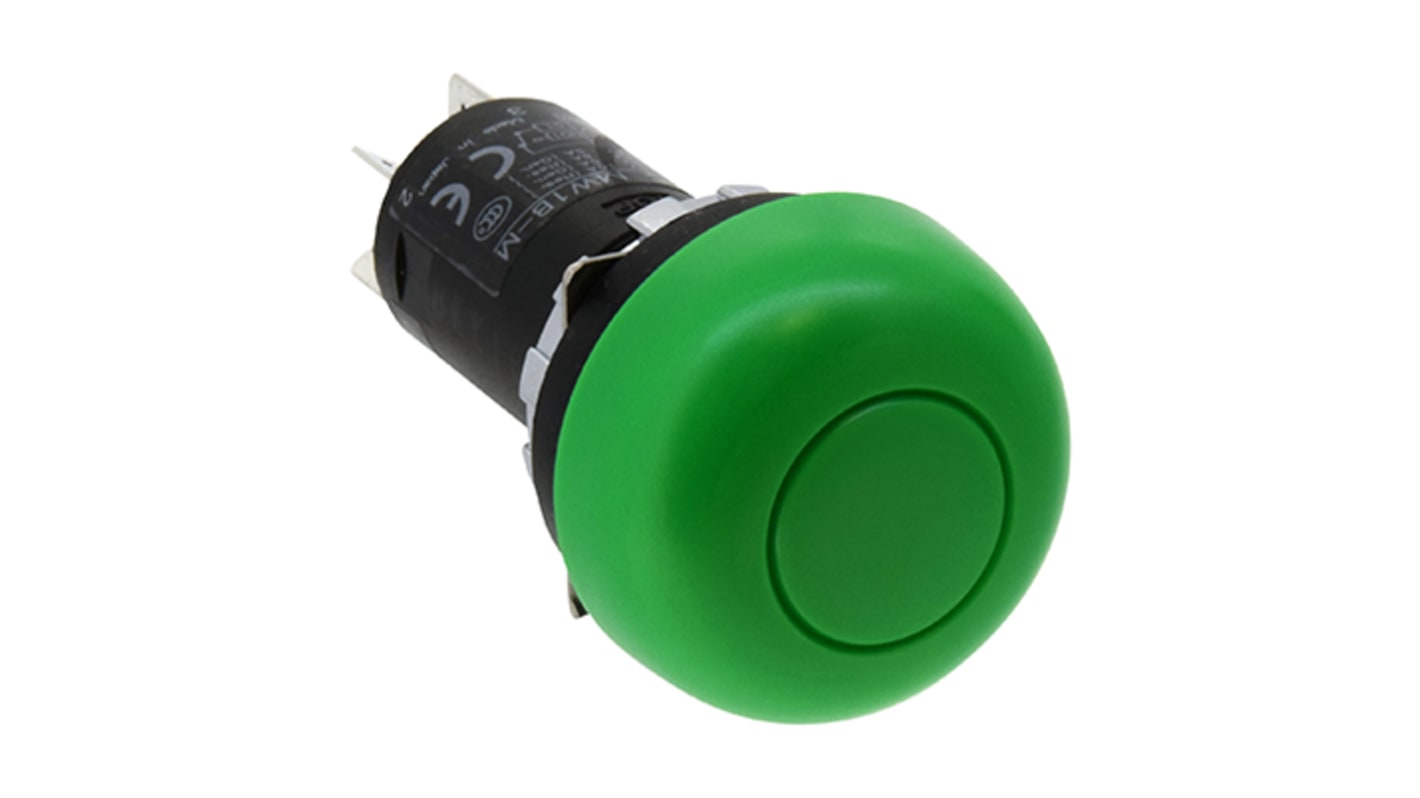

The MW series green color mushroom shape pushbutton has DPDT contacts and provide momentary operation. It provided IP66 degree of protection.
Endures harsh environment
Heavy duty switch
