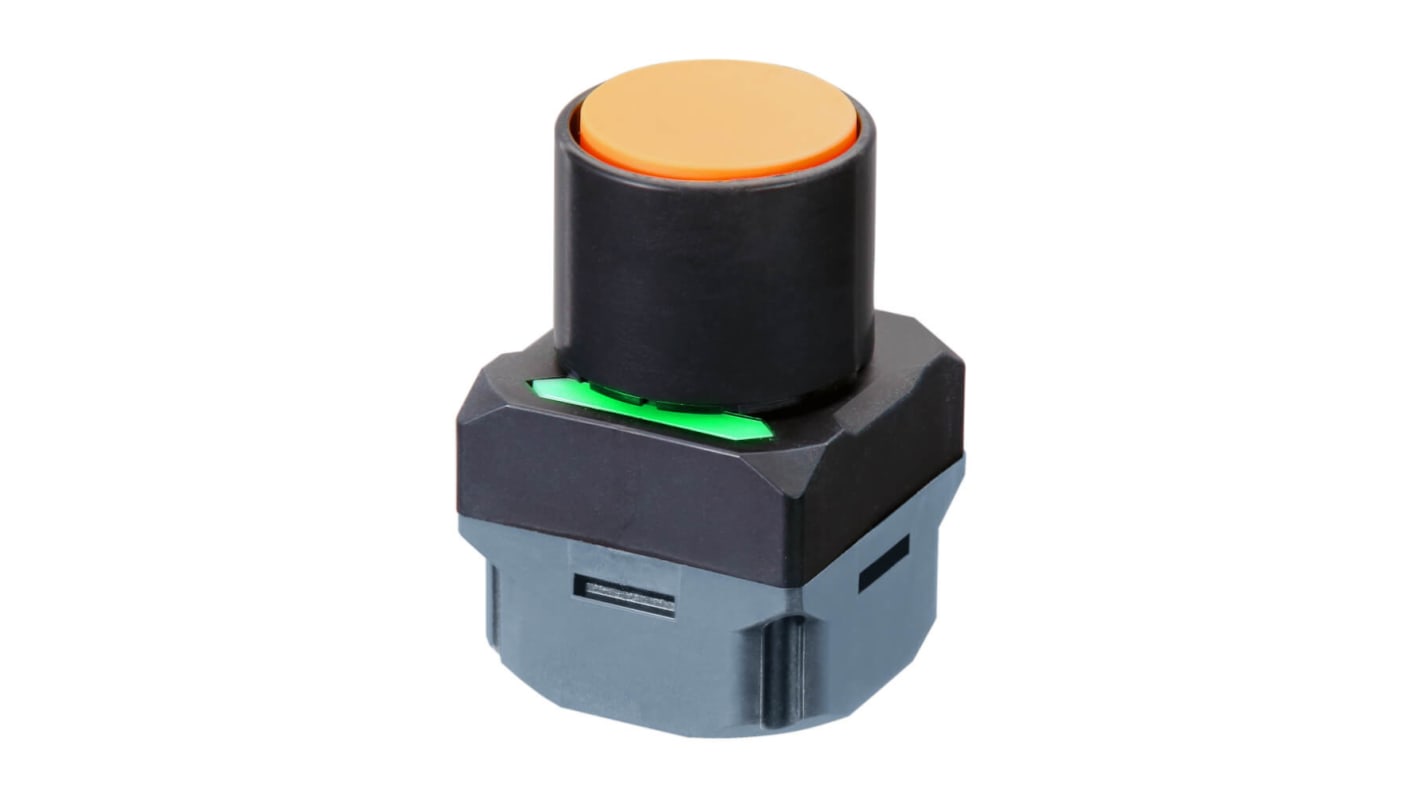

Omron A2W Series Illuminated Push Button Complete Unit, Momentary, 24 mm Cutout, Yellow, Green, Red LED, IP65, 30 V dc
- RS Stock No.:
- 183-0074
- Mfr. Part No.:
- A2W-TB-WC1 EU2BY
- Brand:
- Omron
Subtotal (1 unit)*
£142.81
(exc. VAT)
£171.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £142.81 |
*price indicative
- RS Stock No.:
- 183-0074
- Mfr. Part No.:
- A2W-TB-WC1 EU2BY
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Push Button Complete Unit | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Illuminated | Yes | |
| Series | A2W | |
| Panel Cutout Size | 24 mm | |
| LED Colour | Yellow, Green, Red | |
| Terminal Type | Wireless | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -10°C | |
| Contact DC Voltage | 30V dc | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 0.1 A | |
| Standards/Approvals | EN 300 220-1/-2 EN 301 489-1/-3 IEC 623680-1 EN 62368-1 EN 301 489-1 EN 301 489-3 | |
| Height | 65mm | |
| Length | 65mm | |
| Width | 42 mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Push Button Complete Unit | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Illuminated Yes | ||
Series A2W | ||
Panel Cutout Size 24 mm | ||
LED Colour Yellow, Green, Red | ||
Terminal Type Wireless | ||
IP Rating IP65 | ||
Minimum Operating Temperature -10°C | ||
Contact DC Voltage 30V dc | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 0.1 A | ||
Standards/Approvals EN 300 220-1/-2 EN 301 489-1/-3 IEC 623680-1 EN 62368-1 EN 301 489-1 EN 301 489-3 | ||
Height 65mm | ||
Length 65mm | ||
Width 42 mm | ||
- COO (Country of Origin):
- JP
Wireless switch using sub-GHz band Combines wireless reliability and ease-of-use in consideration of work environments
A Wireless Call Button without a Battery.
8 pushbuttons can be assigned to one receiver unit
Each receiver has 8 transistor outputs (one-shot operation)
A pushbutton can be assigned to multiple outputs of a receiver
Self generated power created by the button operation eliminates the need for a power supply or batteries
Wireless communication is confirmed with a coloured LED indicator on the pushbuttons
922.5MHz frequency band reduces interference, providing a better signal in locations with obstacles
A high-sensitivity magnetic-base antenna is an option when installing the receiver inside a control panel
Applications
Notifying ON/OFF information (i.e. Call a supervisor, missing item information, work completion notification)
Instructions to automated guided vehicles (i.e Instruction to stop or go)
Instructions for manned guided vehicles (i.e. Instructions for opening and closing shutters or doors of warehouses, fork-lifts)
Instructions to a machine (i.e. Stopping, opening and closing doors)
