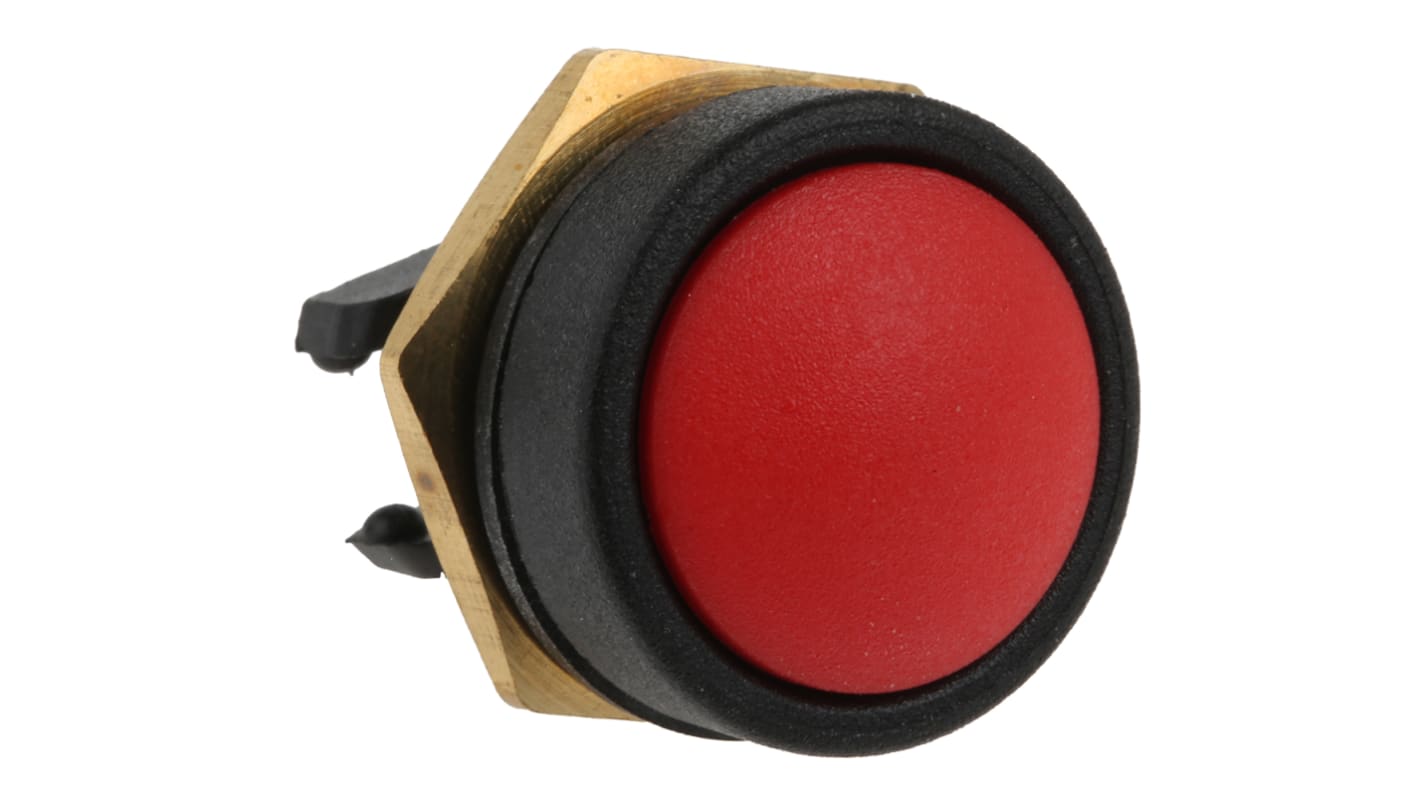

ITW Switches 49-59 Series Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Clear LED, 250V ac, IP67
- RS Stock No.:
- 157-3638
- Mfr. Part No.:
- 49-59122
- Brand:
- ITW Switches
Bulk discount available
Subtotal (1 unit)*
£15.61
(exc. VAT)
£18.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 129 unit(s) ready to ship
- Plus 205 unit(s) ready to ship from another location
- Plus 400 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £15.61 |
| 10 - 49 | £14.36 |
| 50 - 99 | £13.28 |
| 100 - 249 | £12.17 |
| 250 + | £10.16 |
*price indicative
- RS Stock No.:
- 157-3638
- Mfr. Part No.:
- 49-59122
- Brand:
- ITW Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITW Switches | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Series | 49-59 | |
| Panel Cut Out Diameter | 16mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Red | |
| Contact Configuration | SPDT | |
| Voltage Rating | 250V ac | |
| Push Button Style | Dome | |
| LED Colour | Clear | |
| IP Rating | IP67 | |
| Contact Current Rating | 10 A @ 250 V ac | |
| Contact Material | Silver | |
| Manufacturer Part No. | 49-59122 | |
| Contact AC Voltage Rating | 250V | |
| Case Colour | Stainless Steel | |
| Contact DC Voltage Rating | 50V | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -35 → +85°C | |
| Terminal Type | Solder | |
| Minimum Operating Temperature | -35°C | |
Select all | ||
|---|---|---|
Brand ITW Switches | ||
Switch Operation Momentary | ||
Illuminated No | ||
Series 49-59 | ||
Panel Cut Out Diameter 16mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Red | ||
Contact Configuration SPDT | ||
Voltage Rating 250V ac | ||
Push Button Style Dome | ||
LED Colour Clear | ||
IP Rating IP67 | ||
Contact Current Rating 10 A @ 250 V ac | ||
Contact Material Silver | ||
Manufacturer Part No. 49-59122 | ||
Contact AC Voltage Rating 250V | ||
Case Colour Stainless Steel | ||
Contact DC Voltage Rating 50V | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -35 → +85°C | ||
Terminal Type Solder | ||
Minimum Operating Temperature -35°C | ||
- COO (Country of Origin):
- BZ
High Current Sealed Pushbuttons
The 49-59 series offers a wide selection of options suitable for use in a wide variety of applications. They are panel sealed to IP67 making them ideal for harsh environments. They have a wide selection of colours, illuminated or non-illuminated options and tabs or insulated leads. They are all panel mounted through a 16mm panel cut out.
Panel mount pushbuttons with rear mounted microswitches that snap into place from the rear after assembly of the actuator
UL94V-Ø rated body and button
Form Z (1 N/O + 1 N/C) contact
Panel sealed to IP67
Max.Panel thickness 1.5 mm
UL94V-Ø rated body and button
Form Z (1 N/O + 1 N/C) contact
Panel sealed to IP67
Max.Panel thickness 1.5 mm
Approvals
UL
