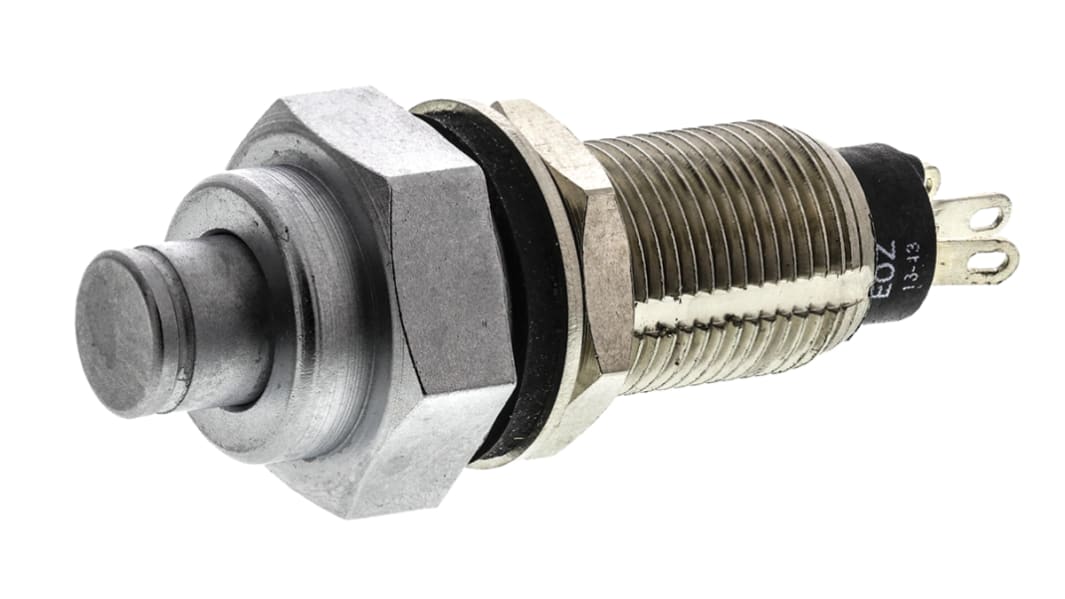

EOZ Push Button Switch, Momentary, Panel Mount, 10mm Cutout, SPST, 12 - 220V ac, IP67
- RS Stock No.:
- 115-6053
- Mfr. Part No.:
- 17.17282.22
- Brand:
- EOZ
Subtotal (1 unit)*
£51.53
(exc. VAT)
£61.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 542 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £51.53 |
*price indicative
- RS Stock No.:
- 115-6053
- Mfr. Part No.:
- 17.17282.22
- Brand:
- EOZ
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EOZ | |
Switch Operation | Momentary | |
Illuminated | No | |
Panel Cut Out Diameter | 10mm | |
Mounting Type | Panel Mount | |
Push Button Colour | Silver | |
Contact Configuration | SPST | |
Voltage Rating | 12 - 220V ac | |
Push Button Style | Round | |
IP Rating | IP67 | |
Contact Current Rating | 2.5 A @ 110 V ac | |
Contact Material | Silver | |
Manufacturer Part No. | 17.17282.22 | |
Terminal Type | Solder | |
Select all | ||
---|---|---|
Brand EOZ | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cut Out Diameter 10mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration SPST | ||
Voltage Rating 12 - 220V ac | ||
Push Button Style Round | ||
IP Rating IP67 | ||
Contact Current Rating 2.5 A @ 110 V ac | ||
Contact Material Silver | ||
Manufacturer Part No. 17.17282.22 | ||
Terminal Type Solder | ||
- COO (Country of Origin):
- CH
DJET miniature pushbuttons
These DJET series toggle and pushbutton switches are ideal for use across a number of industries and environments such as:-
• Outdoor applications
• Telecommunications
• Military Equipment
• Aviation Equipment
• Medical Equipment
• Power Supplies
• Telecommunications
• Military Equipment
• Aviation Equipment
• Medical Equipment
• Power Supplies
How are they fitted?
The switches are mounted by pushing them through the mounting hole in the front panel and then secured with a fixing nut.
This 17.17282.22 momentary push button switch has a mat chrome finish.
Features and Benefits
• Silver contact material is an excellent conductor of both electricity and heat and is a strong metal that easily resists corrosion and rust.
• IP67 front sealing – (totally protected against dust and protected against the effects of temporary immersion in liquids between 15cm and 1m. Duration of test 30 minutes).
• Single pole switch which controls just one circuit.
• Momentary push switch button only makes electrical contact whilst held in that position, once you let go the switch returns to the off position.
• Fit in to a mounting hole of 10 mm.
• IP67 front sealing – (totally protected against dust and protected against the effects of temporary immersion in liquids between 15cm and 1m. Duration of test 30 minutes).
• Single pole switch which controls just one circuit.
• Momentary push switch button only makes electrical contact whilst held in that position, once you let go the switch returns to the off position.
• Fit in to a mounting hole of 10 mm.
