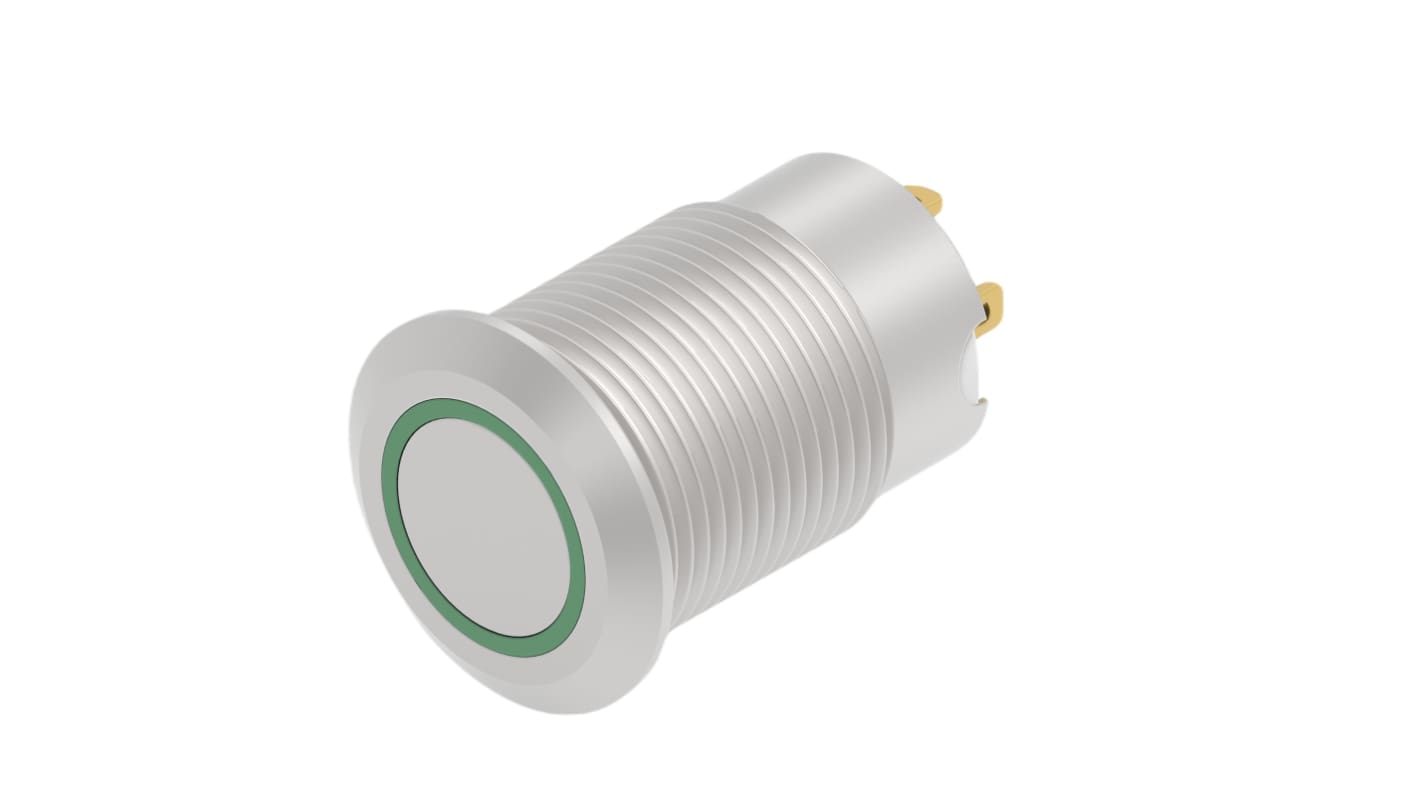

TE Connectivity AV 12 Series Illuminated Push Button Switch, Momentary, Screw Mount, 12mm Cutout, SPST, Red/Green LED,
- RS Stock No.:
- 609-767
- Mfr. Part No.:
- AV12F10EA24Q04
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£11.04
(exc. VAT)
£13.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 110 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.04 |
*price indicative
- RS Stock No.:
- 609-767
- Mfr. Part No.:
- AV12F10EA24Q04
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 12mm | |
| Series | AV 12 | |
| Mounting Type | Screw Mount | |
| Push Button Colour | White | |
| Contact Configuration | SPST | |
| Voltage Rating | 24V | |
| Push Button Style | Round | |
| LED Colour | Red/Green | |
| IP Rating | IP67 | |
| Push Button Diameter | 12mm | |
| Push Button Material | Stainless Steel | |
| Contact Current Rating | 100mA | |
| Contact Material | Brass | |
| Contact DC Voltage Rating | 24V | |
| Manufacturer Part No. | AV12F10EA24Q04 | |
| Legend | (Blank) | |
| Case Colour | White | |
| Panel Cut Out Width | 14mm | |
| Terminal Type | Solder | |
| Operating Temperature Range | -20 → 55°C | |
| Body Material | Polyamide | |
| Panel Cut Out Height | 21.2mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum DC Voltage | 24V | |
| Maximum Operating Temperature | +55°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cut Out Diameter 12mm | ||
Series AV 12 | ||
Mounting Type Screw Mount | ||
Push Button Colour White | ||
Contact Configuration SPST | ||
Voltage Rating 24V | ||
Push Button Style Round | ||
LED Colour Red/Green | ||
IP Rating IP67 | ||
Push Button Diameter 12mm | ||
Push Button Material Stainless Steel | ||
Contact Current Rating 100mA | ||
Contact Material Brass | ||
Contact DC Voltage Rating 24V | ||
Manufacturer Part No. AV12F10EA24Q04 | ||
Legend (Blank) | ||
Case Colour White | ||
Panel Cut Out Width 14mm | ||
Terminal Type Solder | ||
Operating Temperature Range -20 → 55°C | ||
Body Material Polyamide | ||
Panel Cut Out Height 21.2mm | ||
Minimum Operating Temperature -20°C | ||
Maximum DC Voltage 24V | ||
Maximum Operating Temperature +55°C | ||
