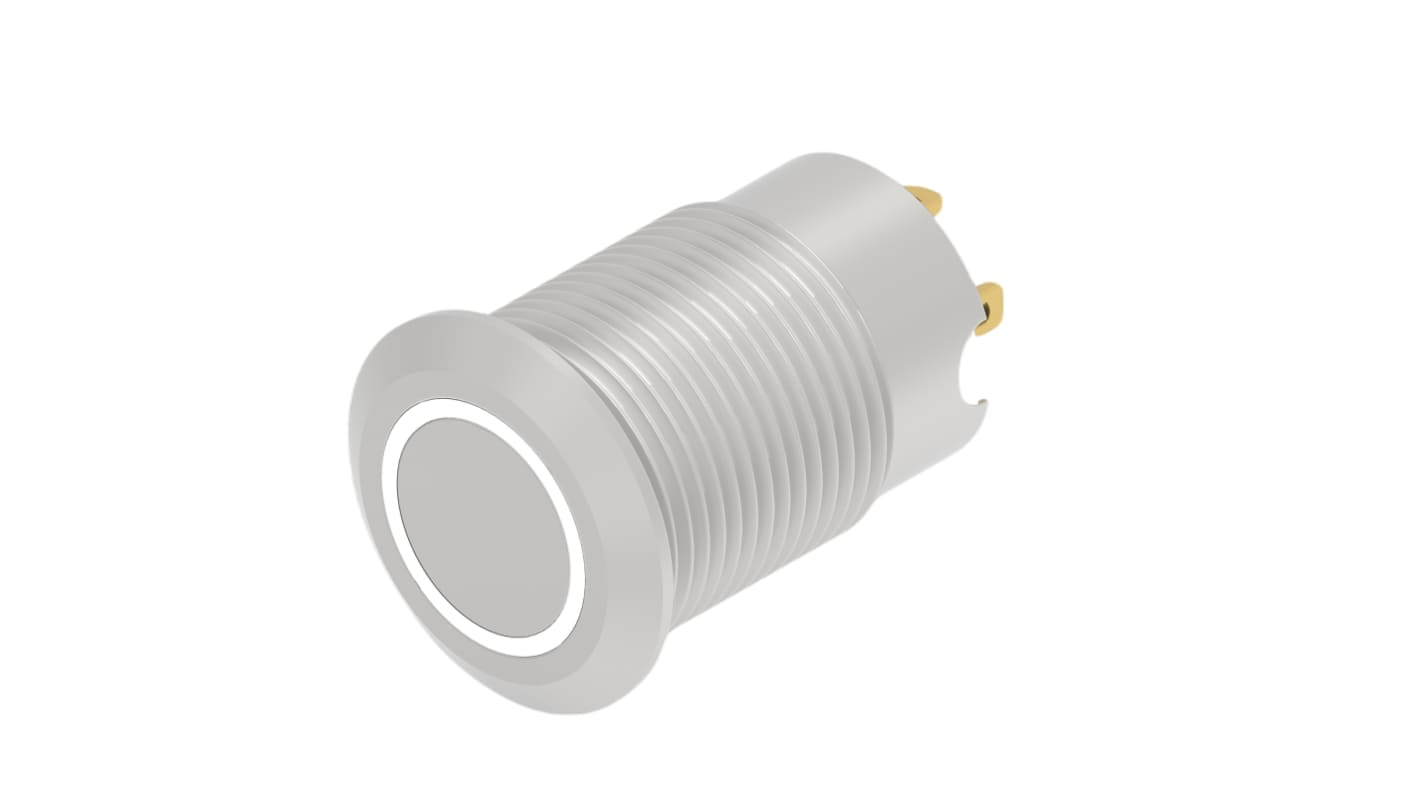

TE Connectivity AV12 Series Illuminated Push Button Switch, Momentary, Screw, 12 mm Cutout, SPST, White LED, IP67, 24 V
- RS Stock No.:
- 609-761
- Mfr. Part No.:
- AV12F10E124Q04
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£10.71
(exc. VAT)
£12.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 98 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.71 |
*price indicative
- RS Stock No.:
- 609-761
- Mfr. Part No.:
- AV12F10E124Q04
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Switch Operation | Momentary | |
| Actuator Colour | Natural | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | AV12 | |
| Panel Cutout Size | 12 mm | |
| Mount Type | Screw | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| LED Colour | White | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -20°C | |
| Actuator Style | Rocker | |
| Contact AC Voltage | 24V | |
| Contact DC Voltage | 24V | |
| Maximum Operating Temperature | 55°C | |
| Length | 16.5mm | |
| Height | 21.2mm | |
| Switch Contact Current | 100 mA | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Switch Operation Momentary | ||
Actuator Colour Natural | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series AV12 | ||
Panel Cutout Size 12 mm | ||
Mount Type Screw | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
LED Colour White | ||
IP Rating IP67 | ||
Minimum Operating Temperature -20°C | ||
Actuator Style Rocker | ||
Contact AC Voltage 24V | ||
Contact DC Voltage 24V | ||
Maximum Operating Temperature 55°C | ||
Length 16.5mm | ||
Height 21.2mm | ||
Switch Contact Current 100 mA | ||
Standards/Approvals RoHS | ||
The TE Connectivity Anti Vandal Switch is designed for security and reliability in a variety of panel mount industrial and building applications. The large pushbutton and available LED indicators illuminate the switch and allow for an easy user interface. Switches are sealed to IP67 and available in single and double pole configurations.
Enable flexibility with various pushbutton symbols including spot ring and power logo
Achieve a vandal resistant solution with a jam nut accessible at rear of the panel
Ease of installation with available flying lead terminations
