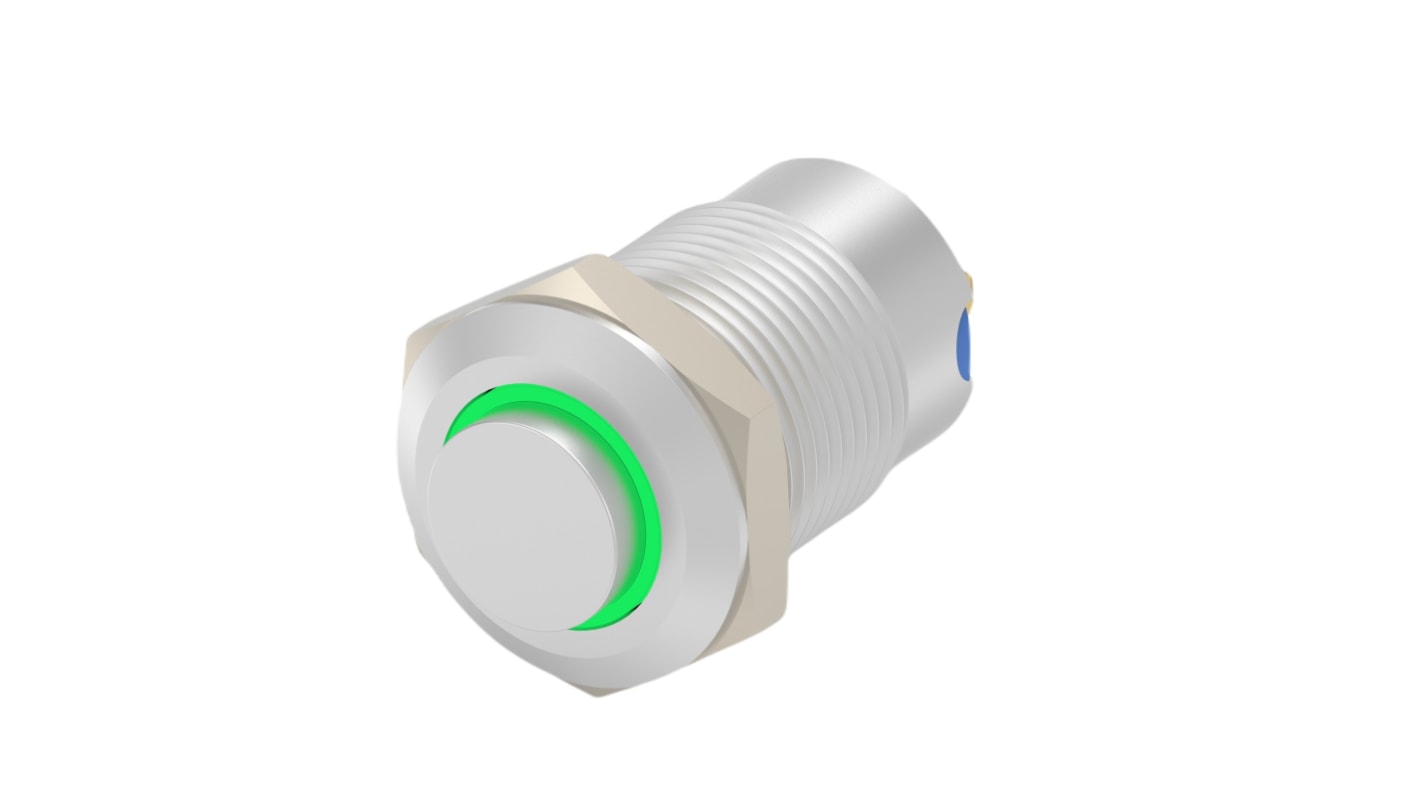

TE Connectivity AV12 Series Illuminated Push Button Switch, Momentary, Threaded, 14 mm Cutout, SPST, Green LED, IP67, 24
- RS Stock No.:
- 170-696
- Mfr. Part No.:
- AV1210E624R04
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£10.41
(exc. VAT)
£12.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 69 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.41 |
*price indicative
- RS Stock No.:
- 170-696
- Mfr. Part No.:
- AV1210E624R04
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Panel Cutout Size | 14 mm | |
| Series | AV12 | |
| Mount Type | Threaded | |
| Contact Configuration | SPST | |
| LED Colour | Green | |
| Terminal Type | Threaded Connector | |
| IP Rating | IP67 | |
| Actuator Style | Large pushbutton | |
| Contact AC Voltage | 24V | |
| Minimum Operating Temperature | -20°C | |
| Contact DC Voltage | 24V | |
| Switch Configuration | 2P | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 1 A | |
| Standards/Approvals | RoHS | |
| Length | 20mm | |
| Legend | Power Logo, Ring, Spot | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Panel Cutout Size 14 mm | ||
Series AV12 | ||
Mount Type Threaded | ||
Contact Configuration SPST | ||
LED Colour Green | ||
Terminal Type Threaded Connector | ||
IP Rating IP67 | ||
Actuator Style Large pushbutton | ||
Contact AC Voltage 24V | ||
Minimum Operating Temperature -20°C | ||
Contact DC Voltage 24V | ||
Switch Configuration 2P | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 1 A | ||
Standards/Approvals RoHS | ||
Length 20mm | ||
Legend Power Logo, Ring, Spot | ||
The TE Connectivity Anti Vandal Switch is designed for security and reliability in a variety of panel mount industrial and building applications. The large pushbutton and available LED indicators illuminate the switch and allow for an easy user interface. They are sealed to IP67.
Allows for an easy user interface with a large pushbutton
Enable flexibility with various pushbutton symbol including spot and power logo
Ease of installation with available flying lead terminations
Achieves a vandal proof solution with a jam nut accessible for rear of panel
