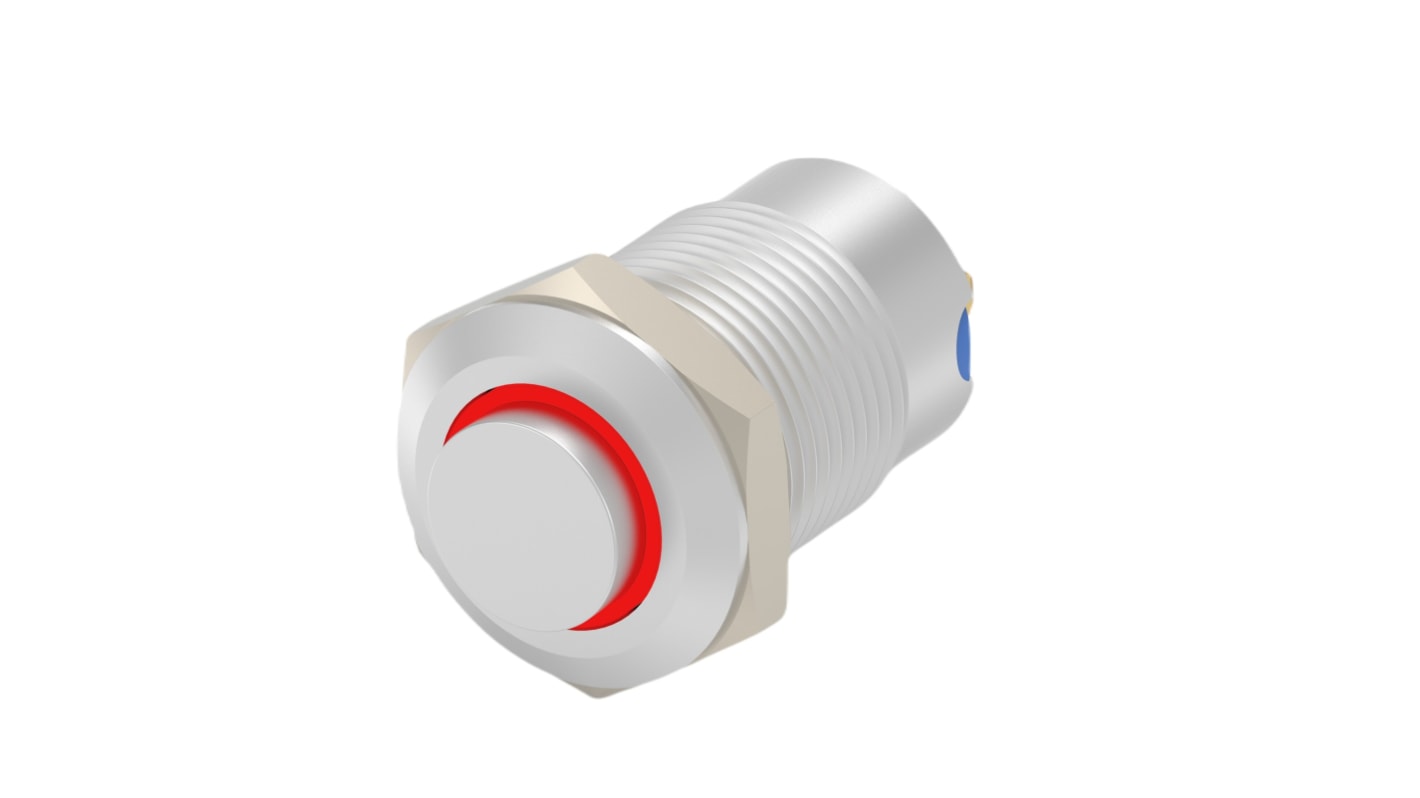

TE Connectivity AV12 Series Illuminated Push Button Switch, Momentary, Threaded, 14 mm Cutout, SPST, Red LED, IP67, 24 V
- RS Stock No.:
- 170-693
- Mfr. Part No.:
- AV1210E324R04
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£10.41
(exc. VAT)
£12.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 94 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.41 |
*price indicative
- RS Stock No.:
- 170-693
- Mfr. Part No.:
- AV1210E324R04
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cutout Size | 14 mm | |
| Series | AV12 | |
| Mount Type | Threaded | |
| Contact Configuration | SPST | |
| Terminal Type | Threaded Connector | |
| LED Colour | Red | |
| IP Rating | IP67 | |
| Actuator Style | Large pushbutton | |
| Contact AC Voltage | 24V | |
| Contact DC Voltage | 24V | |
| Minimum Operating Temperature | -20°C | |
| Switch Configuration | 2P | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 1 A | |
| Length | 20mm | |
| Standards/Approvals | RoHS | |
| Legend | Spot, Ring, Power Logo | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cutout Size 14 mm | ||
Series AV12 | ||
Mount Type Threaded | ||
Contact Configuration SPST | ||
Terminal Type Threaded Connector | ||
LED Colour Red | ||
IP Rating IP67 | ||
Actuator Style Large pushbutton | ||
Contact AC Voltage 24V | ||
Contact DC Voltage 24V | ||
Minimum Operating Temperature -20°C | ||
Switch Configuration 2P | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 1 A | ||
Length 20mm | ||
Standards/Approvals RoHS | ||
Legend Spot, Ring, Power Logo | ||
The TE Connectivity Anti Vandal Switch is designed for security and reliability in a variety of panel mount industrial and building applications. The large pushbutton and available LED indicators illuminate the switch and allow for an easy user interface. They are sealed to IP67.
Allows for an easy user interface with a large pushbutton
Enable flexibility with various pushbutton symbol including spot and power logo
Ease of installation with available flying lead terminations
Achieves a vandal proof solution with a jam nut accessible for rear of panel
