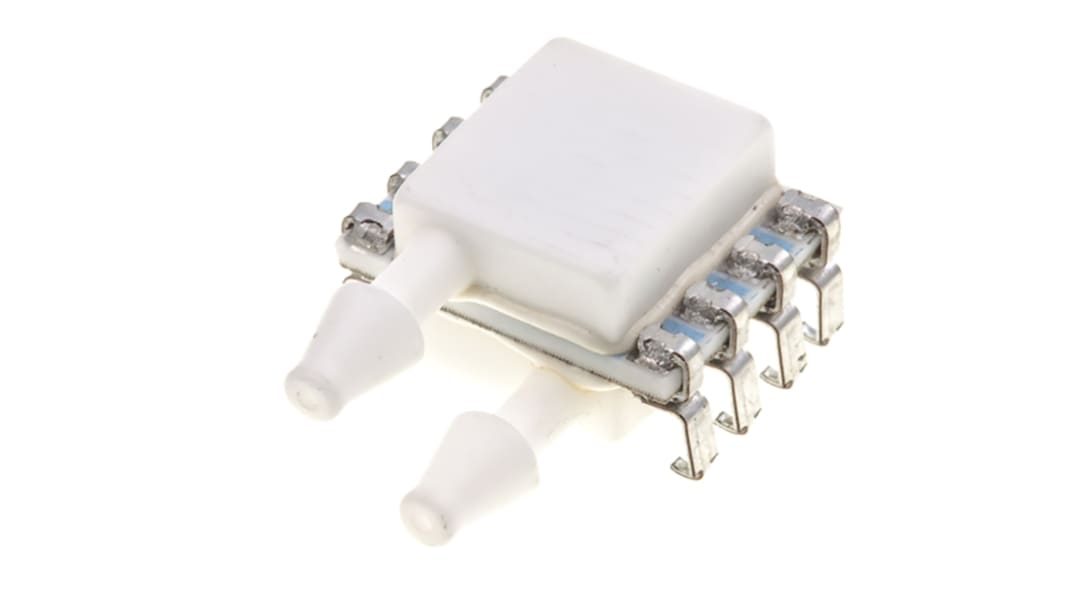

TE Connectivity Pressure TransducerPCB 8 Dual Sideport
- RS Stock No.:
- 268-3667
- Mfr. Part No.:
- 4525DO-DS5AI015DP
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 tray of 10 units)*
£609.45
(exc. VAT)
£731.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 10 - 10 | £60.945 | £609.45 |
| 20 - 20 | £49.698 | £496.98 |
| 30 + | £49.131 | £491.31 |
*price indicative
- RS Stock No.:
- 268-3667
- Mfr. Part No.:
- 4525DO-DS5AI015DP
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Overload Pressure | 300psi | |
| Sensor Type | Differential Pressure Sensor | |
| Product Type | Pressure Transducer | |
| Mount Type | PCB | |
| Package Type | Dual Sideport | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 15 psi | |
| Maximum Supply Voltage | 5.5V | |
| Accuracy | -0.25 to 0.25 % SPAN | |
| Maximum Operating Temperature | 105°C | |
| Length | 12.7mm | |
| Height | 7.2mm | |
| Standards/Approvals | REACH, RoHS | |
| Series | MS4525DO | |
| Width | 17.4 mm | |
| Minimum Operating Pressure | 0psi | |
| Minimum Operating Temperature | -25°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Overload Pressure 300psi | ||
Sensor Type Differential Pressure Sensor | ||
Product Type Pressure Transducer | ||
Mount Type PCB | ||
Package Type Dual Sideport | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 15 psi | ||
Maximum Supply Voltage 5.5V | ||
Accuracy -0.25 to 0.25 % SPAN | ||
Maximum Operating Temperature 105°C | ||
Length 12.7mm | ||
Height 7.2mm | ||
Standards/Approvals REACH, RoHS | ||
Series MS4525DO | ||
Width 17.4 mm | ||
Minimum Operating Pressure 0psi | ||
Minimum Operating Temperature -25°C | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The TE Connectivity transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure and temperature transducer designed to meet the strictest requirements from OEM customers. It is fully calibrated and temperature compensated with a total error band of less than 1.0 % over the compensated range. The sensor operates from single supply of either 3.3 or 5 VDC and requires a single external component for proper operation.
PSI Pressure Ranges
PCB Mountable
Digital Output
Barbed Pressure Ports
