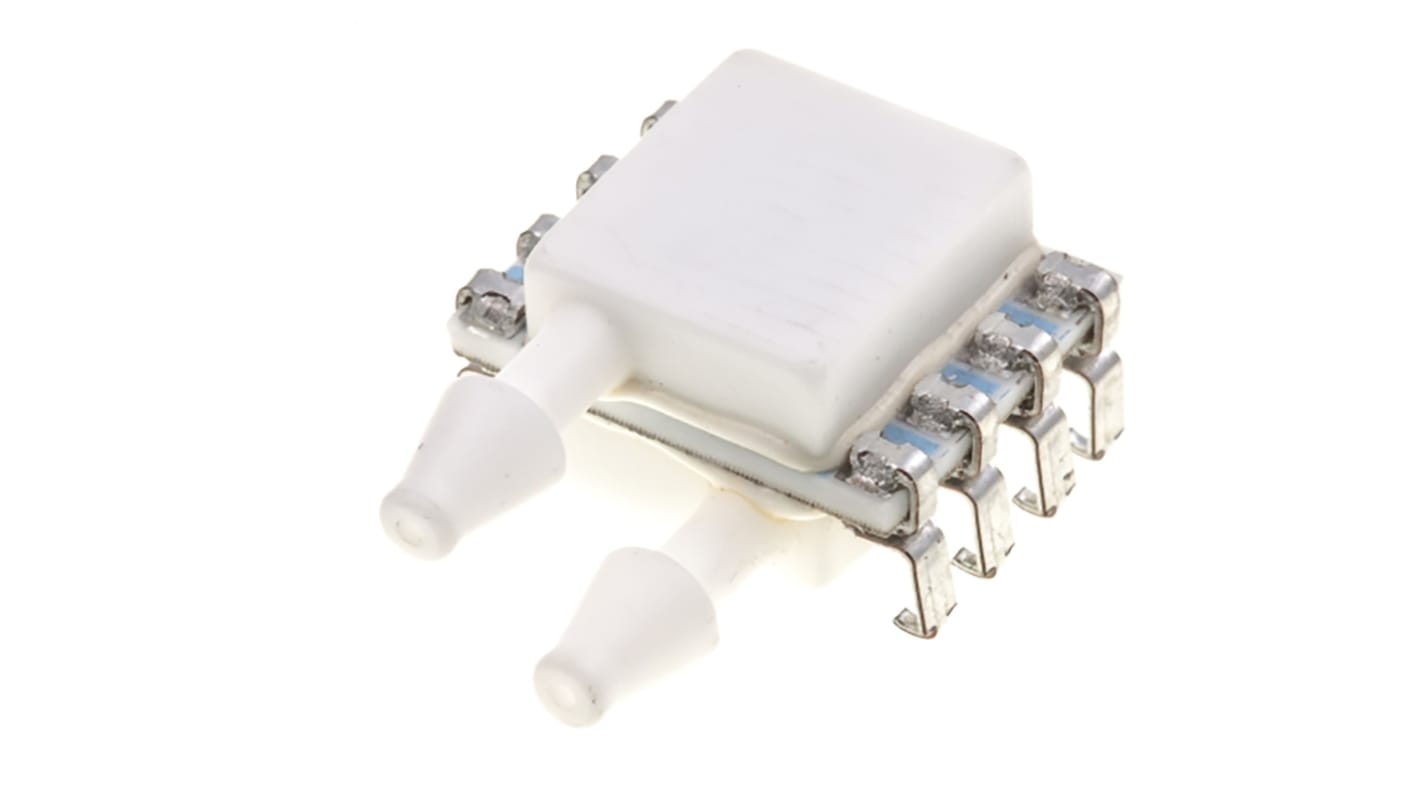

TE Connectivity 4525DO-DS3BK001DPL Pressure SensorPCB 8 Dual Sideport
- RS Stock No.:
- 239-1723
- Mfr. Part No.:
- 4525DO-DS3BK001DPL
- Brand:
- TE Connectivity
Subtotal (1 box of 10 units)*
£351.13
(exc. VAT)
£421.36
(inc. VAT)
Add 10 units to get free delivery
Last RS stock
- Final 10 unit(s), ready to ship
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £35.113 | £351.13 |
*price indicative
- RS Stock No.:
- 239-1723
- Mfr. Part No.:
- 4525DO-DS3BK001DPL
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Overload Pressure | 300psi | |
| Sensor Type | Differential Pressure Sensor | |
| Product Type | Pressure Sensor | |
| Mount Type | PCB | |
| Package Type | Dual Sideport | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 150 psi | |
| Maximum Supply Voltage | 3.3V | |
| Port Type | Dual Side | |
| Accuracy | ±0.25 % | |
| Maximum Operating Temperature | 105°C | |
| Length | 12.5mm | |
| Series | MS4525DO | |
| Standards/Approvals | EN 61000-4-2 | |
| Height | 9.9mm | |
| Width | 9.9 mm | |
| Minimum Operating Pressure | 1psi | |
| Minimum Operating Temperature | -25°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Overload Pressure 300psi | ||
Sensor Type Differential Pressure Sensor | ||
Product Type Pressure Sensor | ||
Mount Type PCB | ||
Package Type Dual Sideport | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 150 psi | ||
Maximum Supply Voltage 3.3V | ||
Port Type Dual Side | ||
Accuracy ±0.25 % | ||
Maximum Operating Temperature 105°C | ||
Length 12.5mm | ||
Series MS4525DO | ||
Standards/Approvals EN 61000-4-2 | ||
Height 9.9mm | ||
Width 9.9 mm | ||
Minimum Operating Pressure 1psi | ||
Minimum Operating Temperature -25°C | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The TE Connectivity Pressure Sensor IC is a small, ceramic based, PCB mounted pressure transducer from TE Connectivity. The transducer is built using our proprietary UltraStable™ process and the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers.
PSI Pressure Ranges
PCB Mountable
Digital Output
Barbed Pressure Ports
