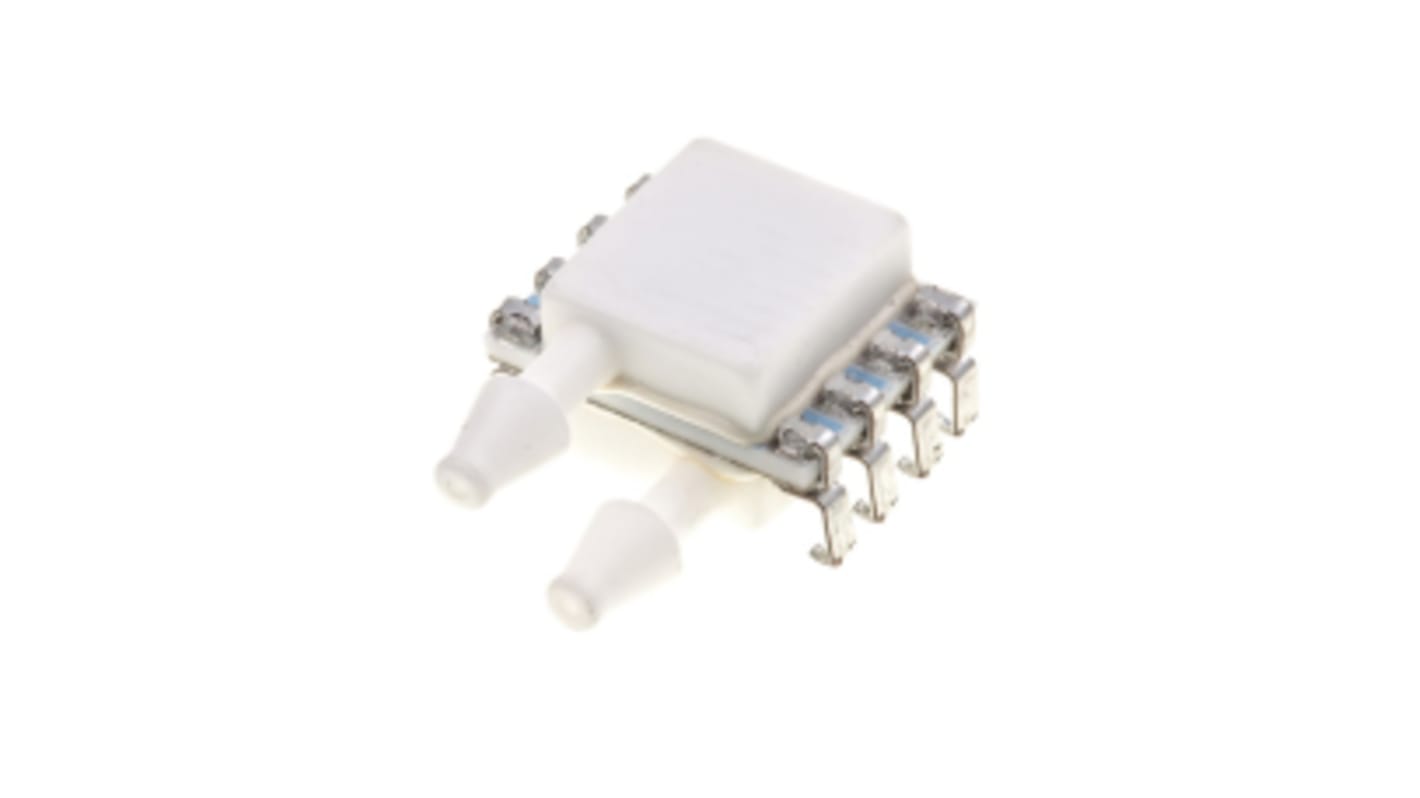

TE Connectivity Piezoresistive Pressure Sensor, 0.072psi Operating Max, PCB Mount, 8-Pin, 300psi Overload Max, Dual

Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
146-8231
Mfr. Part No.:
4515-DS5A002DP
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Sensor Type

Differential Pressure Sensors

Maximum Overload Pressure

300psi

Mounting Type

PCB Mount

Package Type

Dual Sideport

Pin Count

8

Dimensions

17.4 x 12.4 x 7.5mm

Maximum Operating Pressure

0.072psi

Maximum Operating Supply Voltage

5 V

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-10 °C

COO (Country of Origin):
CN
The MS54XX SMD pressure sensor series is designed for pressure sensor systems with highest demands on resolution and accuracy. The device consists of a silicon micromachined pressure sensor die mounted on a 6.2 x 6.4 mm ceramic carrier. The MS54XX can be delivered in a high sensitivity version giving a maximal output voltage or in a high linearity version. Both versions provide an output voltage directly proportional to the applied pressure.

1, 7, 12, and 70 bar absolute pressure range
Uncompensated
Piezo resistive silicon micromachined sensor
Miniature surface mount
Ceramic carrier
Low noise, high sensitivity, high linearity
