Infineon BTS500201TADATMA2High Side, High Side Power Control Switch
- RS Stock No.:
- 258-0742
- Mfr. Part No.:
- BTS500201TADATMA2
- Brand:
- Infineon
Subtotal (1 reel of 1000 units)*
£2,470.00
(exc. VAT)
£2,960.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £2.47 | £2,470.00 |
*price indicative
- RS Stock No.:
- 258-0742
- Mfr. Part No.:
- BTS500201TADATMA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Power Switch Type | High Side | |
Power Switch Topology | High Side | |
Maximum Operating Supply Voltage | 18 V | |
Select all | ||
---|---|---|
Brand Infineon | ||
Power Switch Type High Side | ||
Power Switch Topology High Side | ||
Maximum Operating Supply Voltage 18 V | ||

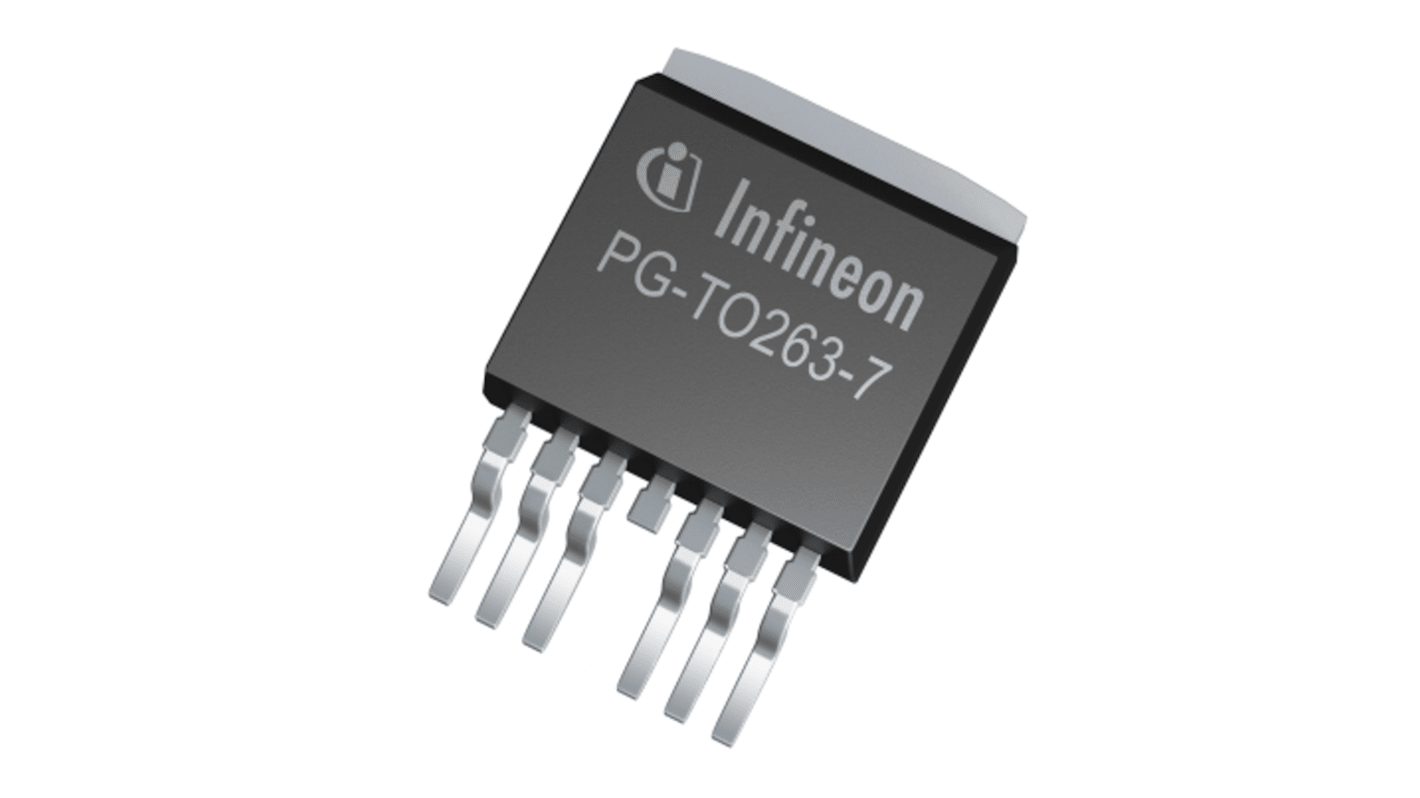

The Infineon smart high-side power switch is a 2.0 mΩ single channel power switch, embedded in a PG-TO-263-7-10 package, providing protective functions and diagnosis. It contains Infineon ReverSave functionality. The power transistor is built by a N-channel power MOSFET with charge pump. It is specially designed to drive high current loads up to 60 A, for applications like switched battery couplings, power distribution switches, heaters, glow plugs, in the harsh automotive environment.
Electrostatic discharge protection
Optimized Electromagnetic Compatibility
Logic ground independent from load ground
Very low leakage current at OUT pin
Compatible to cranking pulse requirement
Embedded diagnostic functions
Optimized Electromagnetic Compatibility
Logic ground independent from load ground
Very low leakage current at OUT pin
Compatible to cranking pulse requirement
Embedded diagnostic functions
