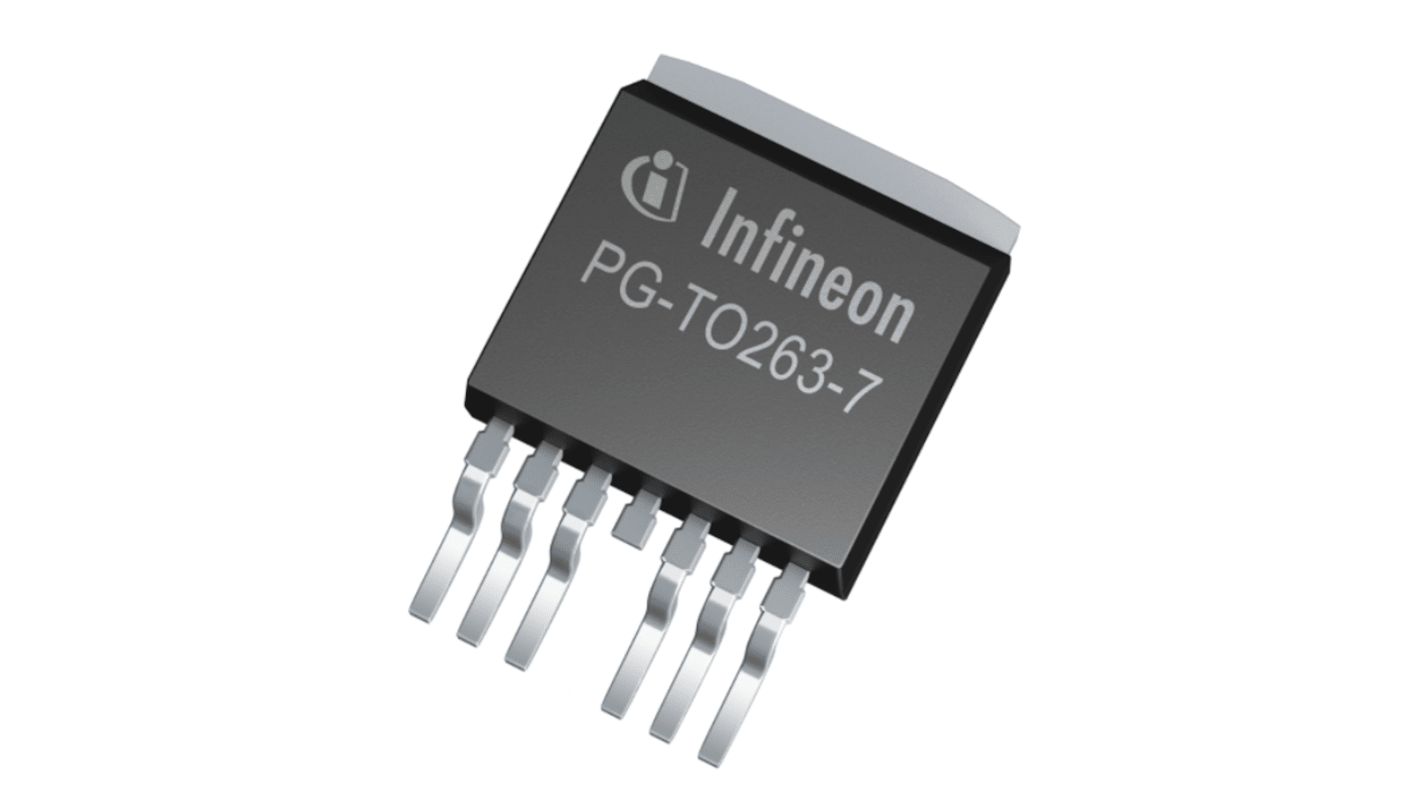

Infineon BTS500251TADATMA2 High Side 1, High Side Power Switch IC 7-Pin, TO-263
- RS Stock No.:
- 229-1778
- Mfr. Part No.:
- BTS500251TADATMA2
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 5 units)*
£15.55
(exc. VAT)
£18.65
(inc. VAT)
Add 20 units to get free delivery
In Stock
- 1,945 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £3.11 | £15.55 |
| 25 - 45 | £2.644 | £13.22 |
| 50 - 120 | £2.456 | £12.28 |
| 125 - 245 | £2.302 | £11.51 |
| 250 + | £2.114 | £10.57 |
*price indicative
- RS Stock No.:
- 229-1778
- Mfr. Part No.:
- BTS500251TADATMA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Topology | High Side | |
| Product Type | Power Switch IC | |
| Power Switch Type | High Side | |
| Switch On Resistance RdsOn | 5mΩ | |
| Number of Outputs | 3 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | -0.3V | |
| Package Type | TO-263 | |
| Pin Count | 7 | |
| Maximum Supply Voltage | 18V | |
| Operating Current | 30A | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 4.4mm | |
| Standards/Approvals | No | |
| Length | 10mm | |
| Width | 15 mm | |
| Automotive Standard | AEC | |
| Series | BTS50025 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Topology High Side | ||
Product Type Power Switch IC | ||
Power Switch Type High Side | ||
Switch On Resistance RdsOn 5mΩ | ||
Number of Outputs 3 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Minimum Supply Voltage -0.3V | ||
Package Type TO-263 | ||
Pin Count 7 | ||
Maximum Supply Voltage 18V | ||
Operating Current 30A | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Height 4.4mm | ||
Standards/Approvals No | ||
Length 10mm | ||
Width 15 mm | ||
Automotive Standard AEC | ||
Series BTS50025 | ||
The Infineon smart high side power switch embedded in a PG-TO-263-7-10 package, providing protective functions and diagnosis. It contains Infineon ReverSave functionality. The power transistor is built by a n channel power MOSFET with charge pump. It is specially designed to drive high current loads up to 60 A, for applications like switched battery couplings, power distribution switches, heaters, glow plugs, in the harsh automotive environment.
It is RoHS compliant and AEC qualified
It has low stand by current
It has optimized EMC
