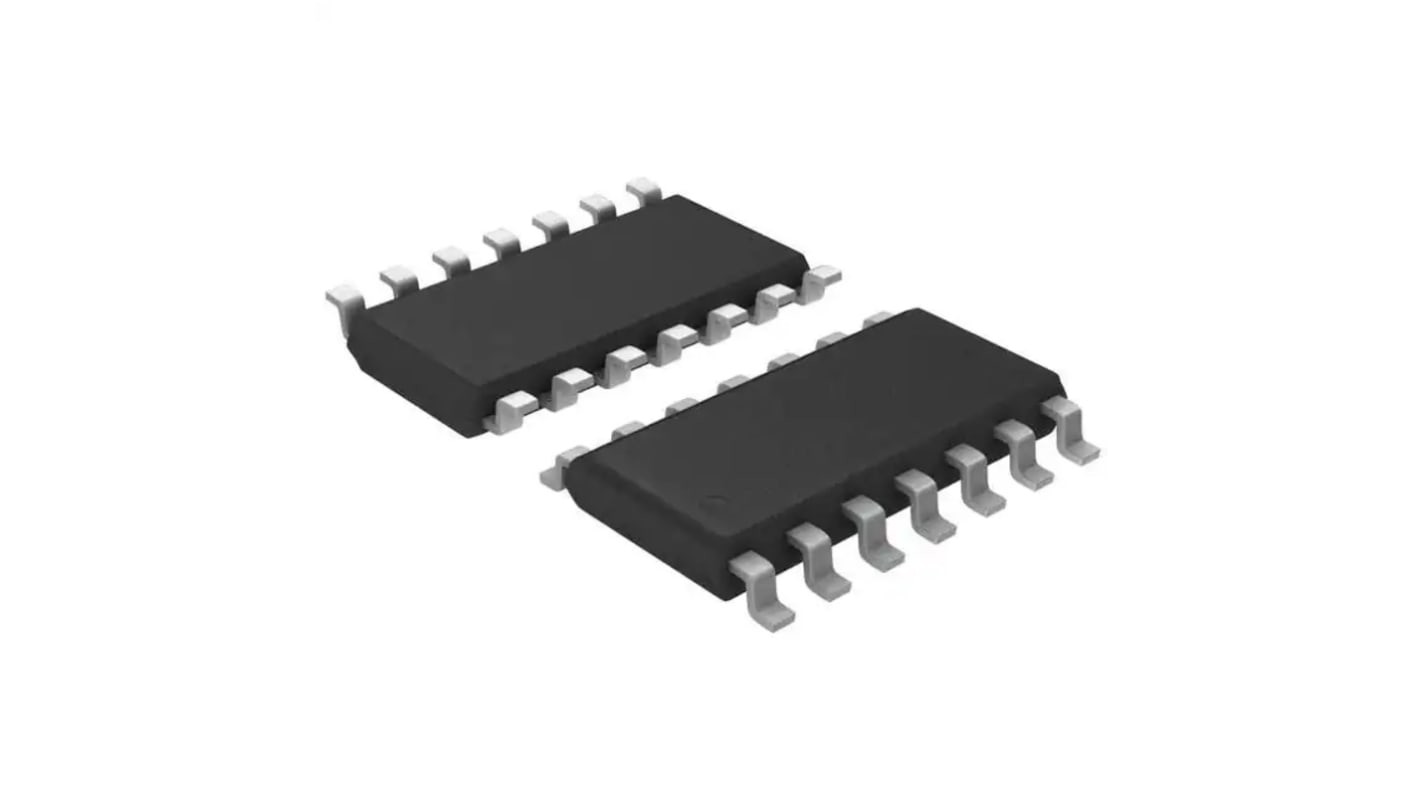

Infineon High Side 2, High Side Power Switch IC 14-Pin, PG-DSO-14
- RS Stock No.:
- 250-0579
- Mfr. Part No.:
- BTS5210GXUMA1
- Brand:
- Infineon
Subtotal (1 reel of 2500 units)*
£2,500.00
(exc. VAT)
£3,000.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £1.00 | £2,500.00 |
*price indicative
- RS Stock No.:
- 250-0579
- Mfr. Part No.:
- BTS5210GXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Power Switch Type | High Side | |
| Switch On Resistance RdsOn | 110mΩ | |
| Number of Outputs | 2 | |
| Number of Inputs | 2 | |
| Mount Type | Surface | |
| Package Type | PG-DSO-14 | |
| Minimum Supply Voltage | 5.5V | |
| Maximum Supply Voltage | 40V | |
| Pin Count | 14 | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 2.4A | |
| Length | 8.75mm | |
| Height | 1.75mm | |
| Standards/Approvals | AEC Green product (RoHS) | |
| Width | 4mm | |
| Automotive Standard | AEC | |
| Series | PROFET | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Switch On Resistance RdsOn 110mΩ | ||
Number of Outputs 2 | ||
Number of Inputs 2 | ||
Mount Type Surface | ||
Package Type PG-DSO-14 | ||
Minimum Supply Voltage 5.5V | ||
Maximum Supply Voltage 40V | ||
Pin Count 14 | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Operating Current 2.4A | ||
Length 8.75mm | ||
Height 1.75mm | ||
Standards/Approvals AEC Green product (RoHS) | ||
Width 4mm | ||
Automotive Standard AEC | ||
Series PROFET | ||
The Infineon makes this high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions. It has a very low standby current CMOS Compatible input, improved electromagnetic compatibility (EMC), fast demagnetization of inductive loads. It has a stable behaviour at under voltage, wide operating voltage range and logic ground independent from load ground.
Fast demagnetization of inductive loads
Optimized Electromagnetic Compatibility (EMC)
Overload protection, current limitation, short circuit protection and thermal shutdown with restart
Electrostatic Discharge protection (ESD) and reverse battery protection
