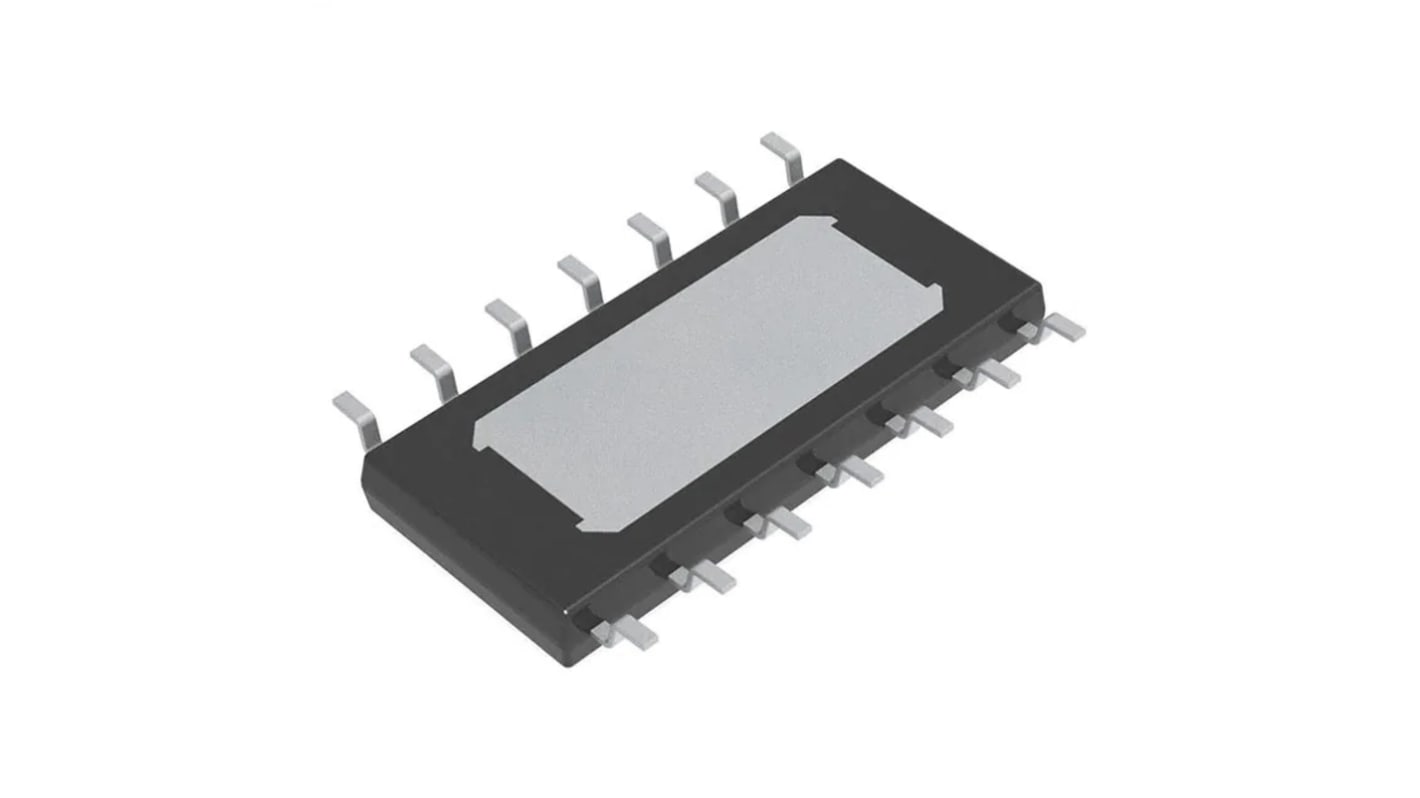

Infineon BTF60702ERVXUMA1 High Side 2, High Side Power Switch IC 14-Pin, PG-TDSO-14

RS Stock No.:: 250-0572
Mfr. Part No.:: BTF60702ERVXUMA1
Brand:: Infineon

Infineon BTF60702ERVXUMA1 High Side 2, High Side Power Switch IC 14-Pin, PG-TDSO-14

Subtotal (1 reel of 3000 units)*

£5,229.00

(exc. VAT)

£6,276.00

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

3,000 unit(s) shipping from 16 June 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
3000 +	£1.743	£5,229.00

*price indicative

RS Stock No.:: 250-0572
Mfr. Part No.:: BTF60702ERVXUMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	Power Switch IC
	Power Switch Topology	High Side
	Power Switch Type	High Side
	Switch On Resistance RdsOn	135mΩ
	Number of Outputs	1
	Power Rating	1.80W
	Number of Inputs	2
	Mount Type	Surface
	Package Type	PG-TDSO-14
	Minimum Supply Voltage	3.80V
	Pin Count	14
	Maximum Supply Voltage	48V
	Operating Current	3A
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS
	Height	1.15mm
	Width	3.9mm
	Length	8.65mm
	Series	BTF6070-2ERV
	Automotive Standard	AEC-Q11, AEC-Q100, AEC-Q2

	Select all
	Brand Infineon
	Product Type Power Switch IC
	Power Switch Topology High Side
	Power Switch Type High Side
	Switch On Resistance RdsOn 135mΩ
	Number of Outputs 1
	Power Rating 1.80W
	Number of Inputs 2
	Mount Type Surface
	Package Type PG-TDSO-14
	Minimum Supply Voltage 3.80V
	Pin Count 14
	Maximum Supply Voltage 48V
	Operating Current 3A
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS
	Height 1.15mm
	Width 3.9mm
	Length 8.65mm
	Series BTF6070-2ERV
	Automotive Standard AEC-Q11, AEC-Q100, AEC-Q2

Datasheet - BTF60702ERVXUMA1

Infineon BTF6070-2ERV Series Power Switch IC, 1.80W Power, 3A Operating Current - BTF60702ERVXUMA1

This power switch IC is a high-side switching device designed for automotive and industrial contexts. It operates from a low supply threshold and supports up to medium-voltage supplies, providing a single switched output controlled by two inputs. The device is intended for surface assembly in Compact module designs and is suitable where thermal stability across a wide temperature range is required.

Features and Benefits:

• 48V Maximum Supply Voltage enables higher-voltage system integration
• 3.8V Minimum Supply Voltage allows low-voltage control compatibility
• 135mΩ Switch On Resistance reduces conduction losses
• 3A Operating Current supports moderate load delivery
• -40 to150°C Operating Temperature range sustains harsh environments

Applications

• Suitable for 48V supply high-side switch for automotive systems
• Ideal for dual-input single-output control arrangements
• Used with surface-mount power management modules
• Can be used for switching loads up to 3A in electrical subsystems
• Suitable for designs requiring low Rds(on) MOSFET performance
