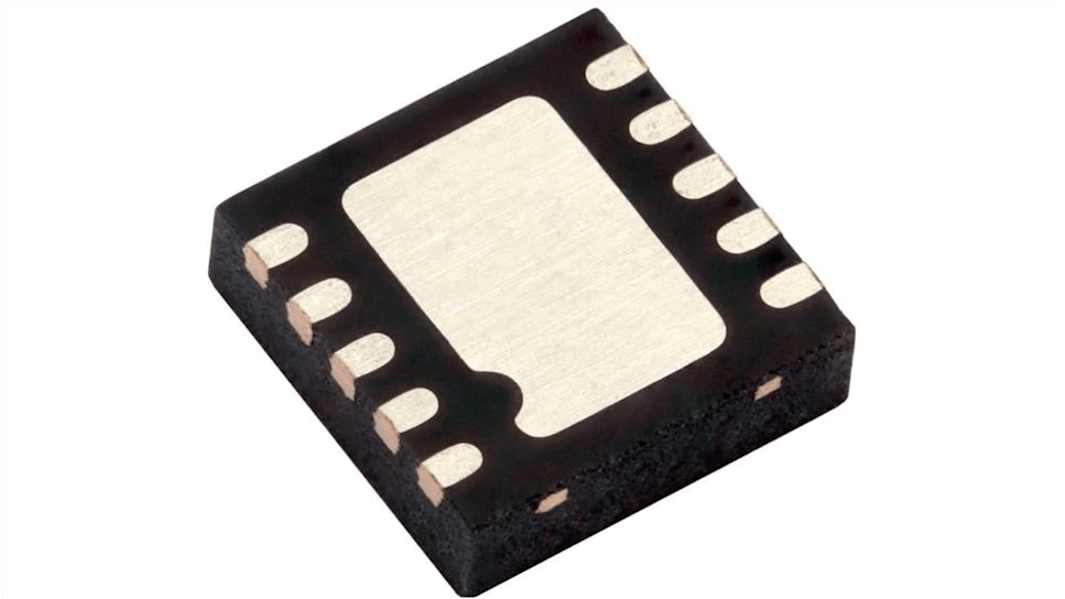

Vishay SIP32434ADN-T1E4 High Side 1, Load Switch Power Switch IC 10-Pin, DFN-10

View all Power Switch ICs
Bulk discount available

Subtotal (1 pack of 10 units)*

£8.76

(exc. VAT)

£10.51

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 4,940 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 40£0.876£8.76
50 - 90£0.648£6.48
100 - 240£0.552£5.52
250 - 490£0.502£5.02
500 +£0.489£4.89

*price indicative

Packaging Options:
RS Stock No.:
240-5287
Mfr. Part No.:
SIP32434ADN-T1E4
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Power Switch IC

Power Switch Topology

High Side

Power Switch Type

Load Switch

Switch On Resistance RdsOn

33mΩ

Number of Outputs

5

Number of Inputs

1

Mount Type

Surface

Package Type

DFN-10

Minimum Supply Voltage

2.8V

Pin Count

10

Maximum Supply Voltage

23V

Operating Current

6A

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Width

3 mm

Length

3mm

Standards/Approvals

No

Automotive Standard

No

Series

SiP32434

The Vishay SIP32434 series single-channel load switches that integrate multiple control and protection features, which provide increased controllability and reliability, with simplified designs and minimal external components. It protect both power sources and downstream circuitry connected to the switch from overloads, short circuits, voltage surges, and excessive inrush currents.

2.8 V to 23 V operation voltage

28 V max. voltage rating with 24 V internal OVP

33 mΩ typical switch resistance

0.5 A to 6 A current limit setting range

Current limit accuracy of ± 7 %

Fast short circuit protection response

OCP triggering without overhead current

Programmable turn-on slew rate

Turn-on delay 190 μs
