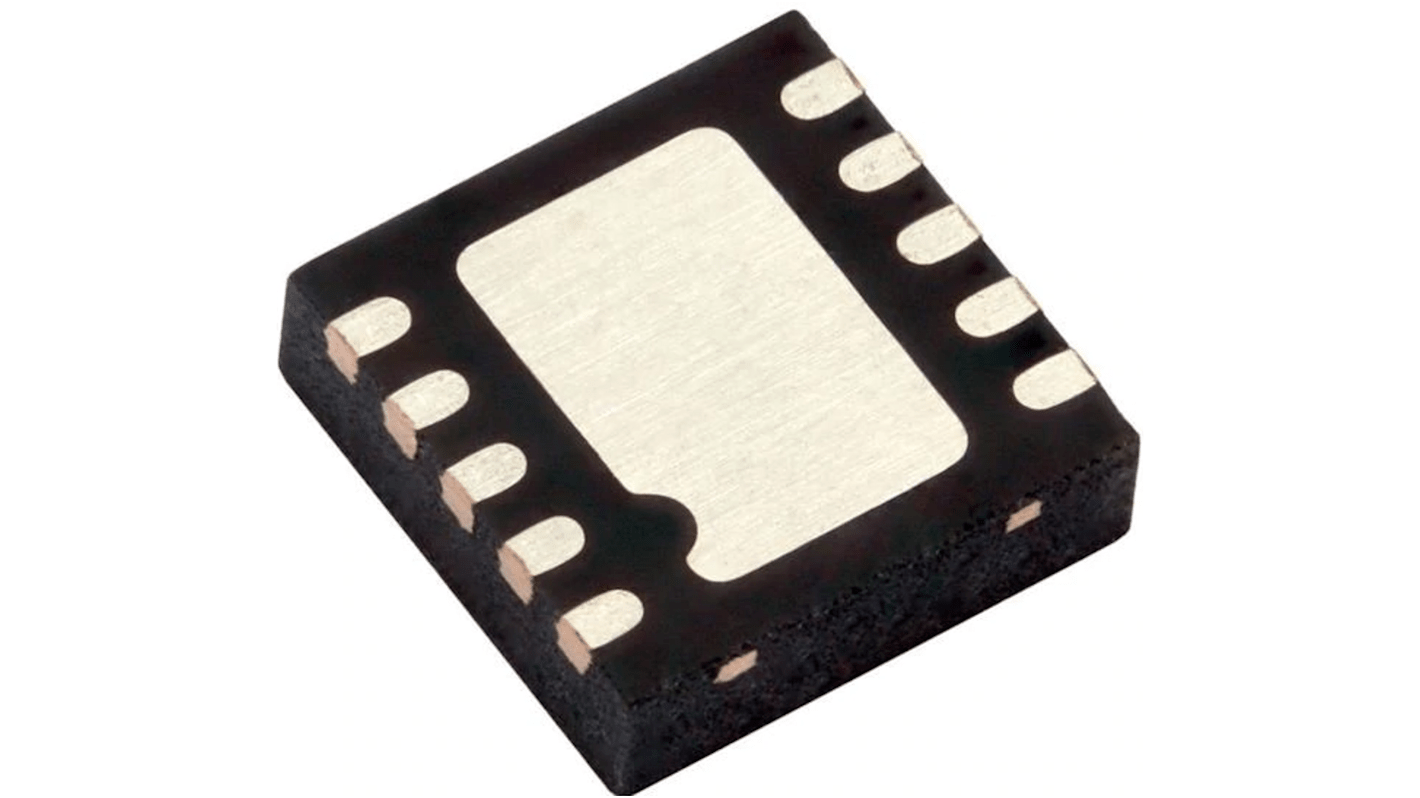

Vishay High Side 1, Load Switch Power Switch IC 10-Pin, DFN-10
- RS Stock No.:
- 240-5286
- Mfr. Part No.:
- SIP32434ADN-T1E4
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£1,401.00
(exc. VAT)
£1,680.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.467 | £1,401.00 |
*price indicative
- RS Stock No.:
- 240-5286
- Mfr. Part No.:
- SIP32434ADN-T1E4
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Power Switch Type | Load Switch | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 33mΩ | |
| Number of Outputs | 5 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Package Type | DFN-10 | |
| Minimum Supply Voltage | 2.8V | |
| Pin Count | 10 | |
| Maximum Supply Voltage | 23V | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 6A | |
| Width | 3 mm | |
| Standards/Approvals | No | |
| Length | 3mm | |
| Series | SiP32434 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Power Switch Type Load Switch | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 33mΩ | ||
Number of Outputs 5 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Package Type DFN-10 | ||
Minimum Supply Voltage 2.8V | ||
Pin Count 10 | ||
Maximum Supply Voltage 23V | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Operating Current 6A | ||
Width 3 mm | ||
Standards/Approvals No | ||
Length 3mm | ||
Series SiP32434 | ||
Automotive Standard No | ||
The Vishay SIP32434 series single-channel load switches that integrate multiple control and protection features, which provide increased controllability and reliability, with simplified designs and minimal external components. It protect both power sources and downstream circuitry connected to the switch from overloads, short circuits, voltage surges, and excessive inrush currents.
2.8 V to 23 V operation voltage
28 V max. voltage rating with 24 V internal OVP
33 mΩ typical switch resistance
0.5 A to 6 A current limit setting range
Current limit accuracy of ± 7 %
Fast short circuit protection response
OCP triggering without overhead current
Programmable turn-on slew rate
Turn-on delay 190 μs
