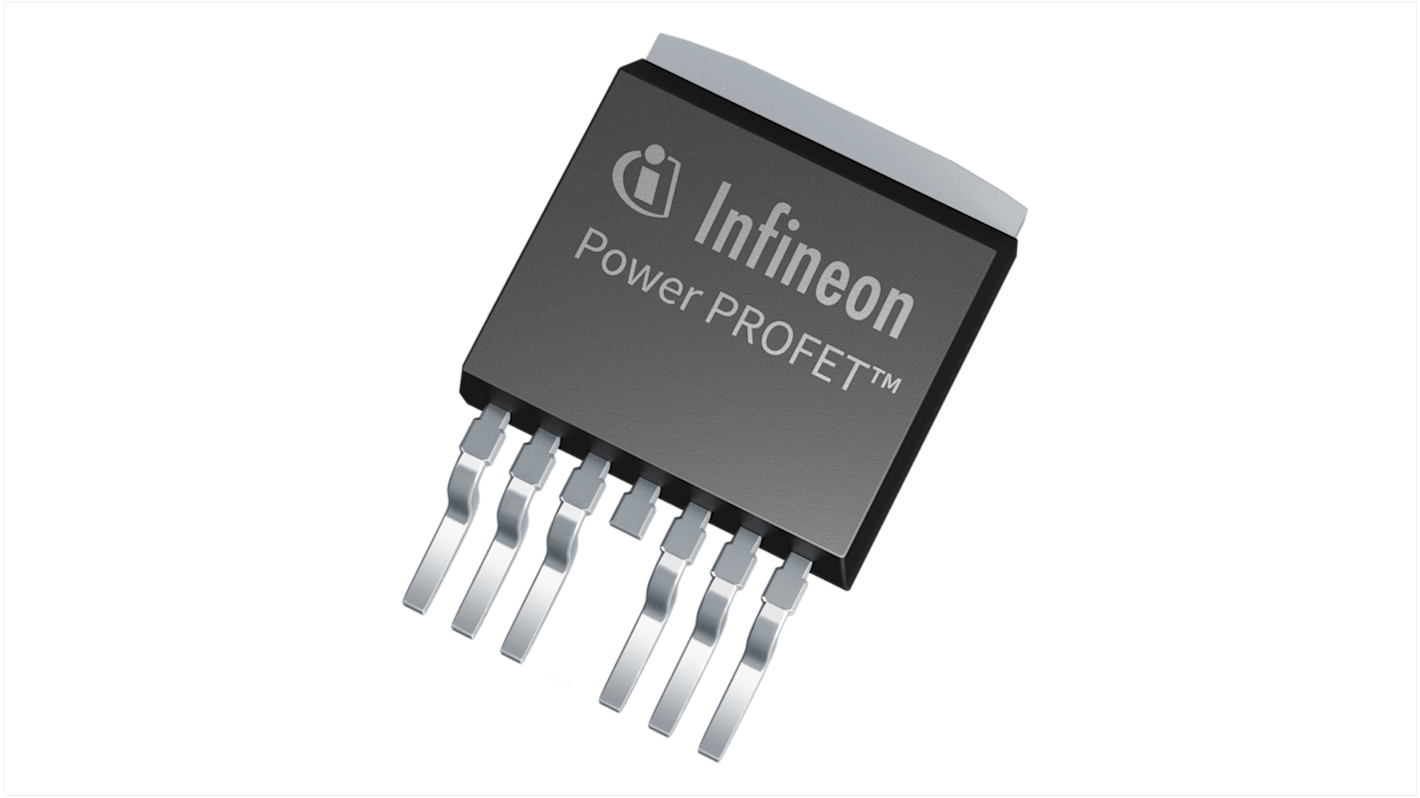

Infineon BTS500151TADATMA2 High Side 1, High Side Power Switch Power Switch IC 7-Pin, TO-263
- RS Stock No.:
- 223-8476
- Mfr. Part No.:
- BTS500151TADATMA2
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£8.22
(exc. VAT)
£9.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3,414 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £4.11 | £8.22 |
| 10 - 18 | £3.70 | £7.40 |
| 20 - 48 | £3.495 | £6.99 |
| 50 - 98 | £3.245 | £6.49 |
| 100 + | £3.00 | £6.00 |
*price indicative
- RS Stock No.:
- 223-8476
- Mfr. Part No.:
- BTS500151TADATMA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Type | High Side Power Switch | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 3mΩ | |
| Number of Outputs | 5 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | -0.3V | |
| Package Type | TO-263 | |
| Maximum Supply Voltage | 18V | |
| Pin Count | 7 | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 33A | |
| Maximum Operating Temperature | 150°C | |
| Height | 4.4mm | |
| Length | 10mm | |
| Standards/Approvals | No | |
| Width | 15 mm | |
| Automotive Standard | AEC | |
| Series | BTS50015 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Type High Side Power Switch | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 3mΩ | ||
Number of Outputs 5 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Minimum Supply Voltage -0.3V | ||
Package Type TO-263 | ||
Maximum Supply Voltage 18V | ||
Pin Count 7 | ||
Minimum Operating Temperature -40°C | ||
Operating Current 33A | ||
Maximum Operating Temperature 150°C | ||
Height 4.4mm | ||
Length 10mm | ||
Standards/Approvals No | ||
Width 15 mm | ||
Automotive Standard AEC | ||
Series BTS50015 | ||
The Infineon BTS50015 series is a single channel smart high side power switch providing protective functions and diagnosis. It is specially designed to drive high current loads up to 80 A, for applications like switched battery couplings, power distribution switches, heaters, glow plugs, in the harsh automotive environment.
Electrostatic discharge protection
Optimized electromagnetic compatibility
Logic ground independent from load ground
Very low leakage current at OUT pin
Embedded diagnostic functions
Embedded protection functions
Green product
AEC qualified
