- RS Stock No.:
- 178-4289
- Mfr. Part No.:
- FUSB307BMPX
- Brand:
- onsemi
Available to back order for despatch 10/12/2024
Added
Price Each (On a Reel of 3000)
£1.062
(exc. VAT)
£1.274
(inc. VAT)
Units | Per unit | Per Reel* |
3000 + | £1.062 | £3,186.00 |
*price indicative |
- RS Stock No.:
- 178-4289
- Mfr. Part No.:
- FUSB307BMPX
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
The FUSB307B targets system designers looking to implement up to four USB Type-C port controllers (TCPC) with USB-PD capabilities. This solution provides integrated Type-C Rev 1.3 detection circuitry enabling manual attach/detach detection. Time critical Power Delivery functionality is handled autonomously, offloading the μProcessor or Type-C Port Manager (TCPM).
USB-PD Interface Specification Rev 1.0 Ver. 1.2 Compatible
USB Type-C Rev 1.3 Compatible
USB-PD Rev3.0 Ver. 1.1 Compatible: Fast Role Swap, Sink Transmit, Extended Data Messages (Chunked)
USB-PD Interface Specification Support: Automatic GoodCRC Packet Response, Automatic Retries of Sending Packet, All SOP* Types Supported
VBUS Source and Sink Control
Integrated 3 W Capable VCONN to CCx Switch
10-bit VBUS ADC
Programmable GPIOs
4 Selectable I2C Addresses
USB Type-C Rev 1.3 Compatible
USB-PD Rev3.0 Ver. 1.1 Compatible: Fast Role Swap, Sink Transmit, Extended Data Messages (Chunked)
USB-PD Interface Specification Support: Automatic GoodCRC Packet Response, Automatic Retries of Sending Packet, All SOP* Types Supported
VBUS Source and Sink Control
Integrated 3 W Capable VCONN to CCx Switch
10-bit VBUS ADC
Programmable GPIOs
4 Selectable I2C Addresses
Specifications
Attribute | Value |
---|---|
Power Switch Type | USB |
Maximum Operating Supply Voltage | 21.5 V |
Maximum Operating Current | 210.5mA |
Number of Outputs | 1 |
Mounting Type | Surface Mount |

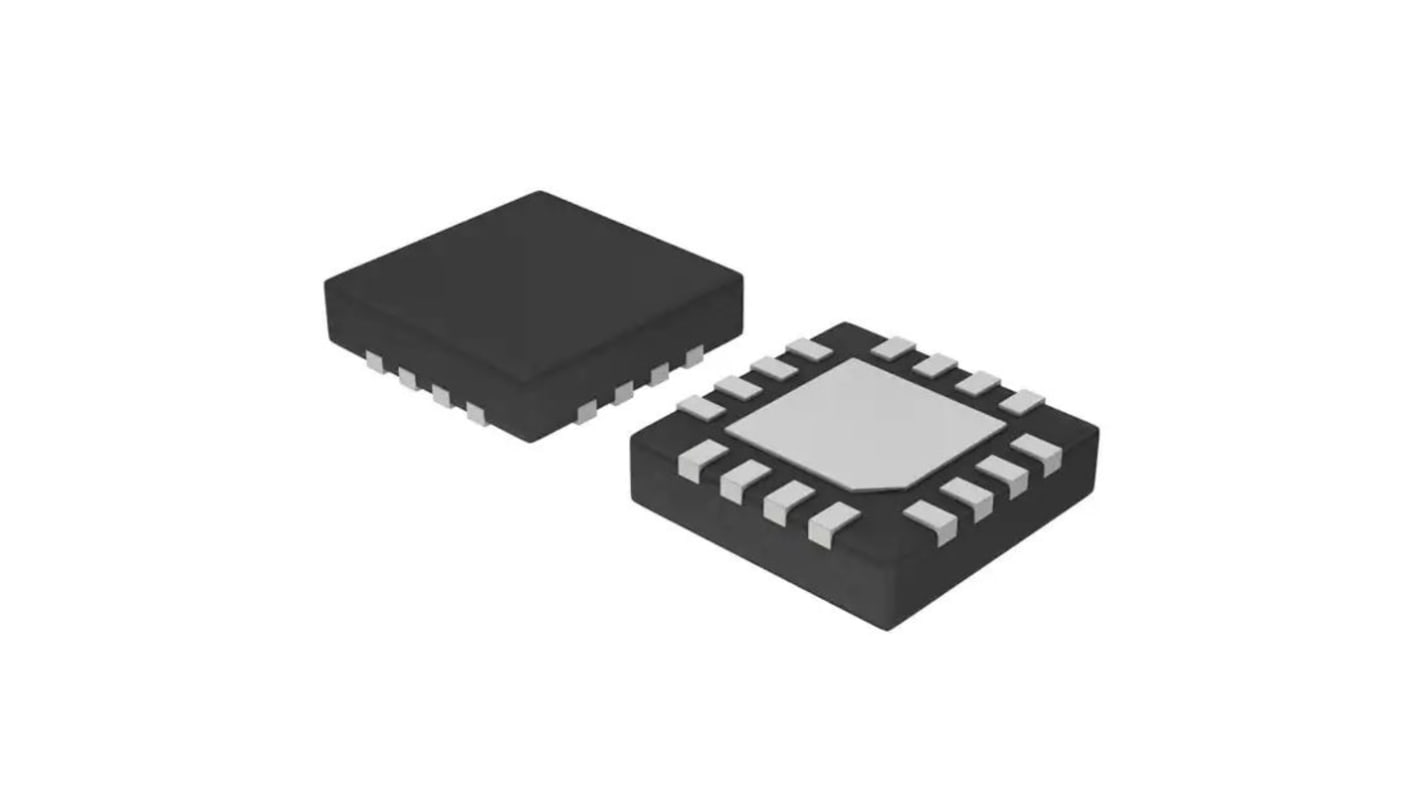

Package Type | WQFN |
Pin Count | 16 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Dimensions | 3 x 3 x 0.75mm |
