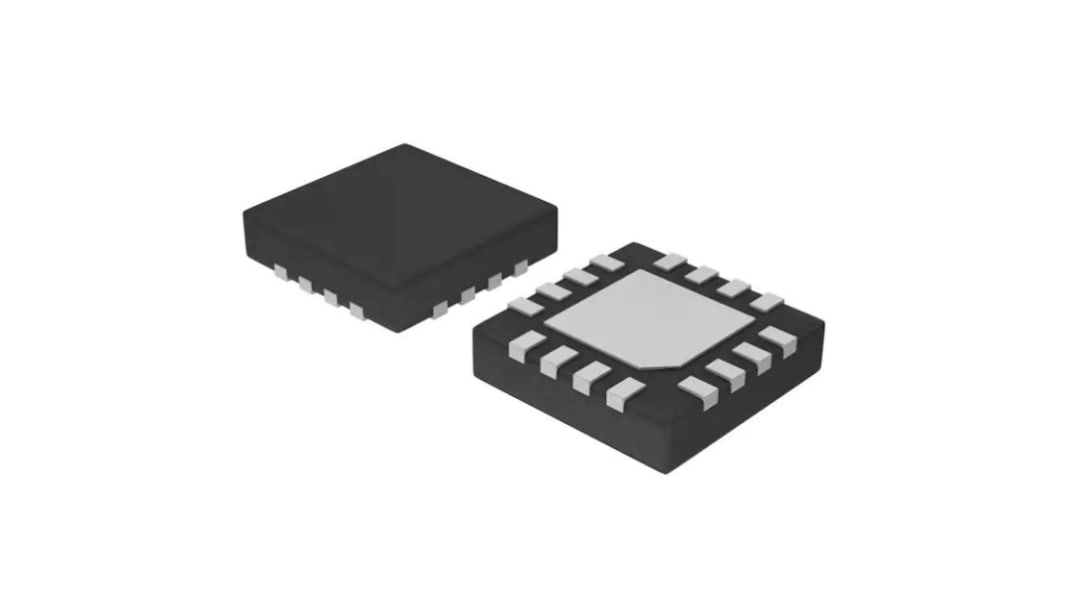

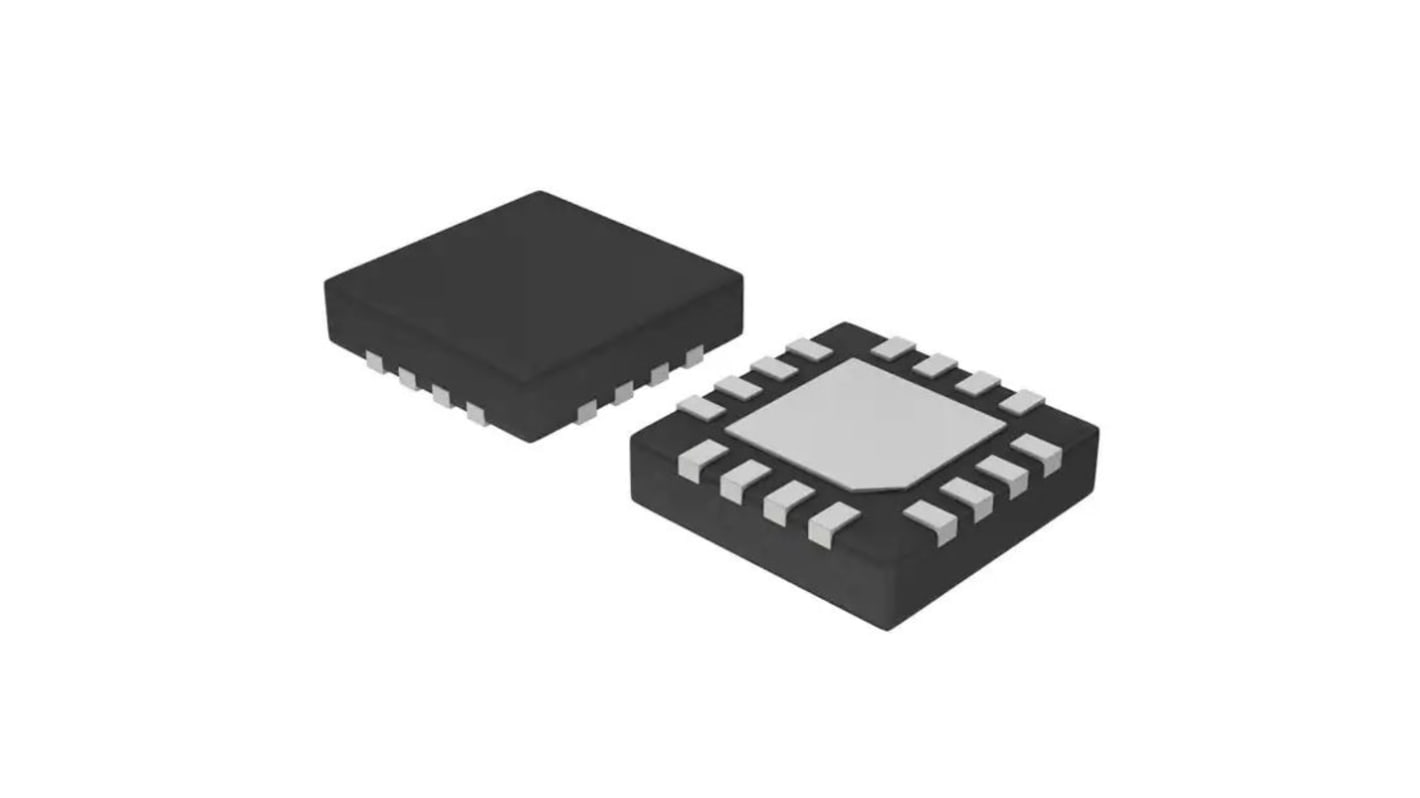

onsemi FUSB307BMPX High Side 1, USB Power Power Switch IC 16-Pin, WQFN
- RS Stock No.:
- 178-4474
- Mfr. Part No.:
- FUSB307BMPX
- Brand:
- onsemi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 3000)
£1.041
(exc. VAT)
£1.249
(inc. VAT)
- RS Stock No.:
- 178-4474
- Mfr. Part No.:
- FUSB307BMPX
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Power Switch Type | USB Power | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Number of Outputs | 1 | |
| Number of Inputs | 1 | |
| Interface Type | USB, USB Type C | |
| Mount Type | Surface | |
| Package Type | WQFN | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 21.5V | |
| Operating Current | 210.5mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.75mm | |
| Standards/Approvals | USB Type-C Rev 1.3, USB-PD Interface Specification Rev 1.0, USB-PD Rev3.0 | |
| Width | 3 mm | |
| Length | 3mm | |
| Automotive Standard | No | |
| Series | FUSB307B | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Power Switch Type USB Power | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Number of Outputs 1 | ||
Number of Inputs 1 | ||
Interface Type USB, USB Type C | ||
Mount Type Surface | ||
Package Type WQFN | ||
Pin Count 16 | ||
Maximum Supply Voltage 21.5V | ||
Operating Current 210.5mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 0.75mm | ||
Standards/Approvals USB Type-C Rev 1.3, USB-PD Interface Specification Rev 1.0, USB-PD Rev3.0 | ||
Width 3 mm | ||
Length 3mm | ||
Automotive Standard No | ||
Series FUSB307B | ||
- COO (Country of Origin):
- TH
The FUSB307B targets system designers looking to implement up to four USB Type-C port controllers (TCPC) with USB-PD capabilities. This solution provides integrated Type-C Rev 1.3 detection circuitry enabling manual attach/detach detection. Time critical Power Delivery functionality is handled autonomously, offloading the μProcessor or Type-C Port Manager (TCPM).
USB-PD Interface Specification Rev 1.0 Ver. 1.2 Compatible
USB Type-C Rev 1.3 Compatible
USB-PD Rev3.0 Ver. 1.1 Compatible: Fast Role Swap, Sink Transmit, Extended Data Messages (Chunked)
USB-PD Interface Specification Support: Automatic GoodCRC Packet Response, Automatic Retries of Sending Packet, All SOP* Types Supported
VBUS Source and Sink Control
Integrated 3 W Capable VCONN to CCx Switch
10-bit VBUS ADC
Programmable GPIOs
4 Selectable I2C Addresses
