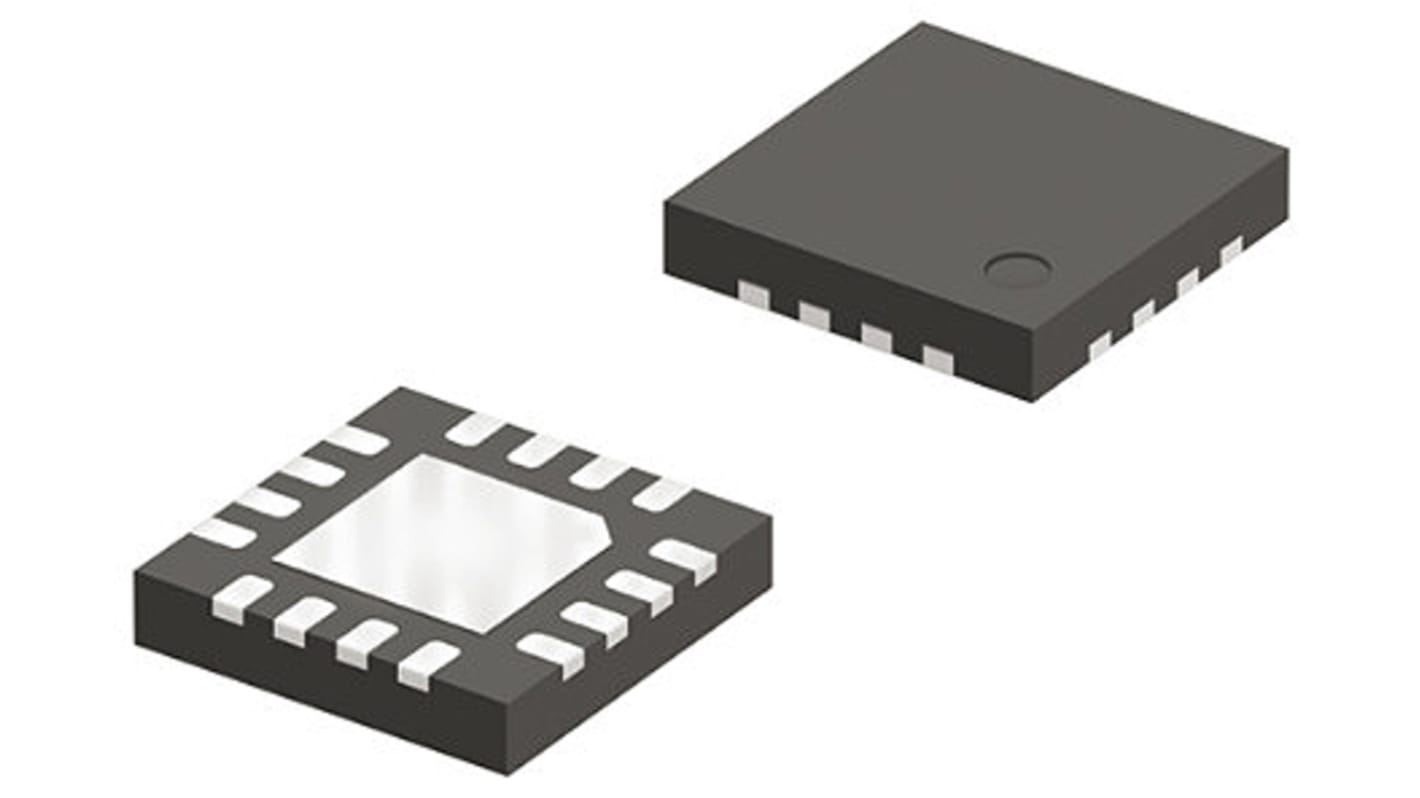

onsemi FSUSB74UMX High Side 4, USB Power high Speed USB Multiplexer/Switch 16-Pin, UMLP
- RS Stock No.:
- 862-9205
- Mfr. Part No.:
- FSUSB74UMX
- Brand:
- onsemi
Subtotal (1 pack of 5 units)*
£1.56
(exc. VAT)
£1.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 8,930 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.312 | £1.56 |
*price indicative
- RS Stock No.:
- 862-9205
- Mfr. Part No.:
- FSUSB74UMX
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Power Switch Topology | High Side | |
| Power Switch Type | USB Power | |
| Product Type | high Speed USB Multiplexer/Switch | |
| Switch On Resistance RdsOn | 9Ω | |
| Number of Outputs | 1 | |
| Number of Inputs | 4 | |
| Interface Type | USB 2.0 | |
| Mount Type | Surface | |
| Package Type | UMLP | |
| Minimum Supply Voltage | 2.5V | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 4.4V | |
| Operating Current | 9μA | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 0.5mm | |
| Width | 2.6 mm | |
| Length | 1.8mm | |
| Standards/Approvals | USB 2.0 High-Speed, USB 2.0 Full-Speed | |
| Series | FSUSB74 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Power Switch Topology High Side | ||
Power Switch Type USB Power | ||
Product Type high Speed USB Multiplexer/Switch | ||
Switch On Resistance RdsOn 9Ω | ||
Number of Outputs 1 | ||
Number of Inputs 4 | ||
Interface Type USB 2.0 | ||
Mount Type Surface | ||
Package Type UMLP | ||
Minimum Supply Voltage 2.5V | ||
Pin Count 16 | ||
Maximum Supply Voltage 4.4V | ||
Operating Current 9μA | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Height 0.5mm | ||
Width 2.6 mm | ||
Length 1.8mm | ||
Standards/Approvals USB 2.0 High-Speed, USB 2.0 Full-Speed | ||
Series FSUSB74 | ||
Automotive Standard No | ||
