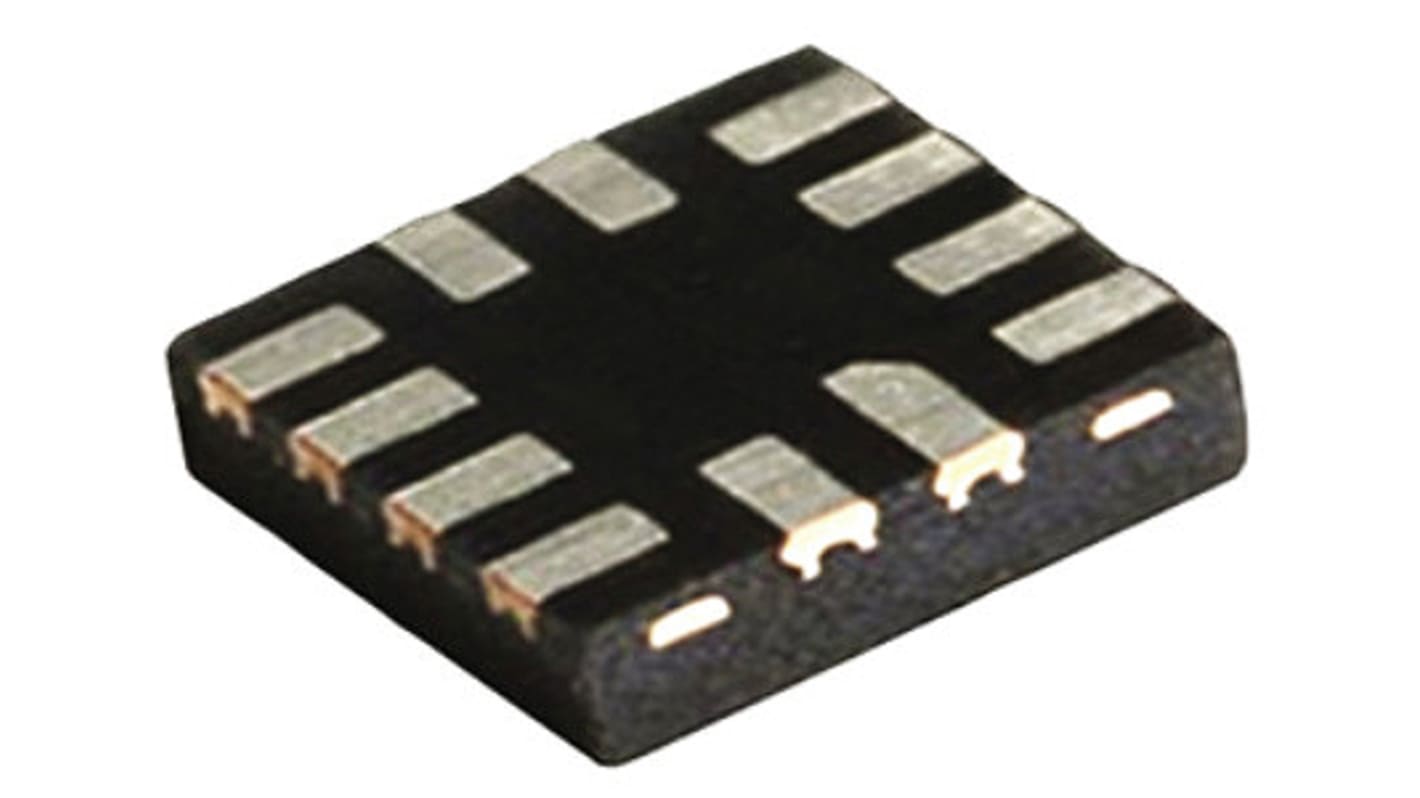

onsemi High Side 2 Power Switch IC 12-Pin, UMLP
- RS Stock No.:
- 864-4712
- Mfr. Part No.:
- FSUSB63UMX
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.05
(exc. VAT)
£1.26
(inc. VAT)
- RS Stock No.:
- 864-4712
- Mfr. Part No.:
- FSUSB63UMX
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 6Ω | |
| Number of Outputs | 2 | |
| Number of Inputs | 2 | |
| Interface Type | USB 2.0 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2.7V | |
| Package Type | UMLP | |
| Pin Count | 12 | |
| Maximum Supply Voltage | 4.4V | |
| Operating Current | 7.5μA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 1.8mm | |
| Standards/Approvals | No | |
| Width | 1.8 mm | |
| Height | 0.5mm | |
| Automotive Standard | No | |
| Series | FSUSB63 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 6Ω | ||
Number of Outputs 2 | ||
Number of Inputs 2 | ||
Interface Type USB 2.0 | ||
Mount Type Surface | ||
Minimum Supply Voltage 2.7V | ||
Package Type UMLP | ||
Pin Count 12 | ||
Maximum Supply Voltage 4.4V | ||
Operating Current 7.5μA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 1.8mm | ||
Standards/Approvals No | ||
Width 1.8 mm | ||
Height 0.5mm | ||
Automotive Standard No | ||
Series FSUSB63 | ||
USB Switches, Fairchild Semiconductor
Switches and Multiplexers, Fairchild Semiconductor
Fairchild's analogue and mixed signal switching ICs are developed with a particular focus on USB, audio, video, and signal routing applications.
