Phoenix Contact PCB Power Relay, 24V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 898-7661
- Distrelec Article No.:
- 304-02-485
- Mfr. Part No.:
- 2961341
- Brand:
- Phoenix Contact
Bulk discount available
View bulk pricing optionsSubtotal (10 units, in packs of 10)*
£85.24
(exc. VAT)
£102.29
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 200 unit(s) ready to ship
- Plus 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £8.524 | £85.24 |
| 50 - 90 | £8.064 | £80.64 |
| 100 + | £7.672 | £76.72 |
*price indicative
- RS Stock No.:
- 898-7661
- Distrelec Article No.:
- 304-02-485
- Mfr. Part No.:
- 2961341
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | REL-MR- 24DC/1IC | |
| Terminal Type | PCB Pin | |
| Switching Current | 16A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 1.4kΩ | |
| Maximum Operating Temperature | 85°C | |
| Length | 29mm | |
| Standards/Approvals | cRU Listed, VDE, UL Listed, cULus, cUL Listed | |
| Height | 15.7mm | |
| Width | 12.7mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series REL-MR- 24DC/1IC | ||
Terminal Type PCB Pin | ||
Switching Current 16A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 1.4kΩ | ||
Maximum Operating Temperature 85°C | ||
Length 29mm | ||
Standards/Approvals cRU Listed, VDE, UL Listed, cULus, cUL Listed | ||
Height 15.7mm | ||
Width 12.7mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- AT

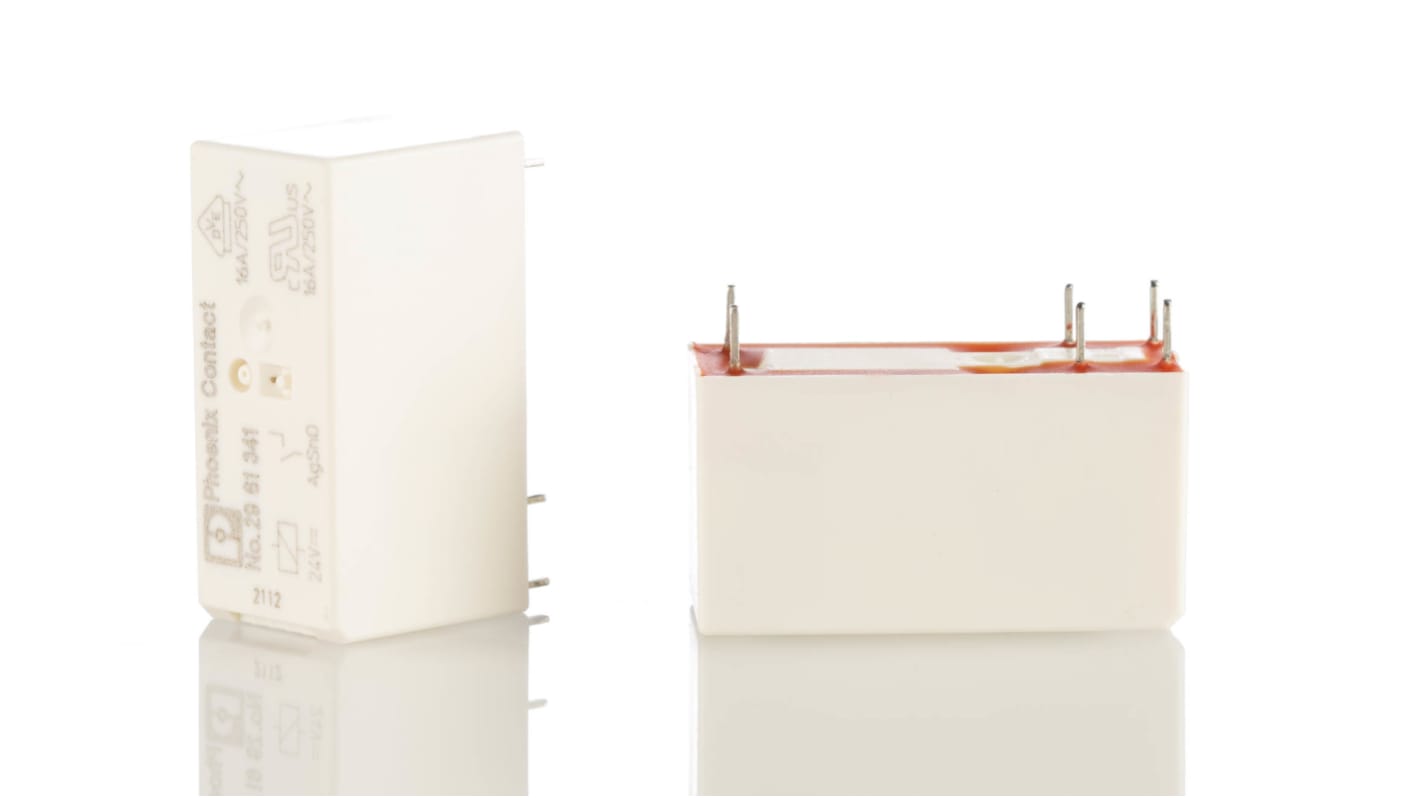

Phoenix Contact PCB Miniature Power Relay, 24V DC Input, SPNO Contacts - REL-MR- 24DC/ 1IC - 2961341
Choose this miniature power relay from Phoenix Contact to safely power devices attached to your printed circuit board. It can withstand inrush currents of up to 130A to power on heavy-duty equipment. The relay has an SPNO (single pole normally open) configuration, meaning it returns to an open state in the event of power loss for maximum operational safety. You can rely on it for rapid switching, thanks to a fast response time of 8ms.
Thanks to its silver tin oxide contact material, the relay is highly conductive and resistant to corrosion to ensure reliable signal transmission, even in damp conditions. Its space-saving dimensions of 29 (length) x 12.7 (width) x 15.7mm (height) let you maximise the packing density of your PCB. As the relay plugs directly into your board, it's fast and simple to install.
• Nominal input voltage of 24V DC for use in low-voltage applications
• Meets IEC 60664 safety standards for insulation in low-voltage systems
• Robust service life of 30 million mechanical cycles for long-lasting performance
• Wide operating temperature range of -40°C to +85°C for use in demanding environments
Phoenix Contact REL-MR Series
