Phoenix Contact PCB Power Relay, 24V dc Coil, 16A Switching Current, SPST

View all Power Relays

Subtotal (1 unit)*

£9.12

(exc. VAT)

£10.94

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£9.12

*price indicative

RS Stock No.:
201-3967
Mfr. Part No.:
2908040
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Coil Voltage

24V dc

Product Type

Power Relay

Contact Configuration

SPST

Mount Type

PCB

Series

REL-PR1

Terminal Type

Plug-In

Switching Current

16A

Switching AC Voltage

250V ac

Minimum Operating Temperature

-40°C

Switching DC Voltage

250V dc

Maximum Operating Temperature

70°C

Width

45.5mm

Height

36.1mm

Coil Power

1.68W

Length

38.6mm

Standards/Approvals

IEC 60664, IEC 61810

Contact Material

Silver Alloy

COO (Country of Origin):
PL

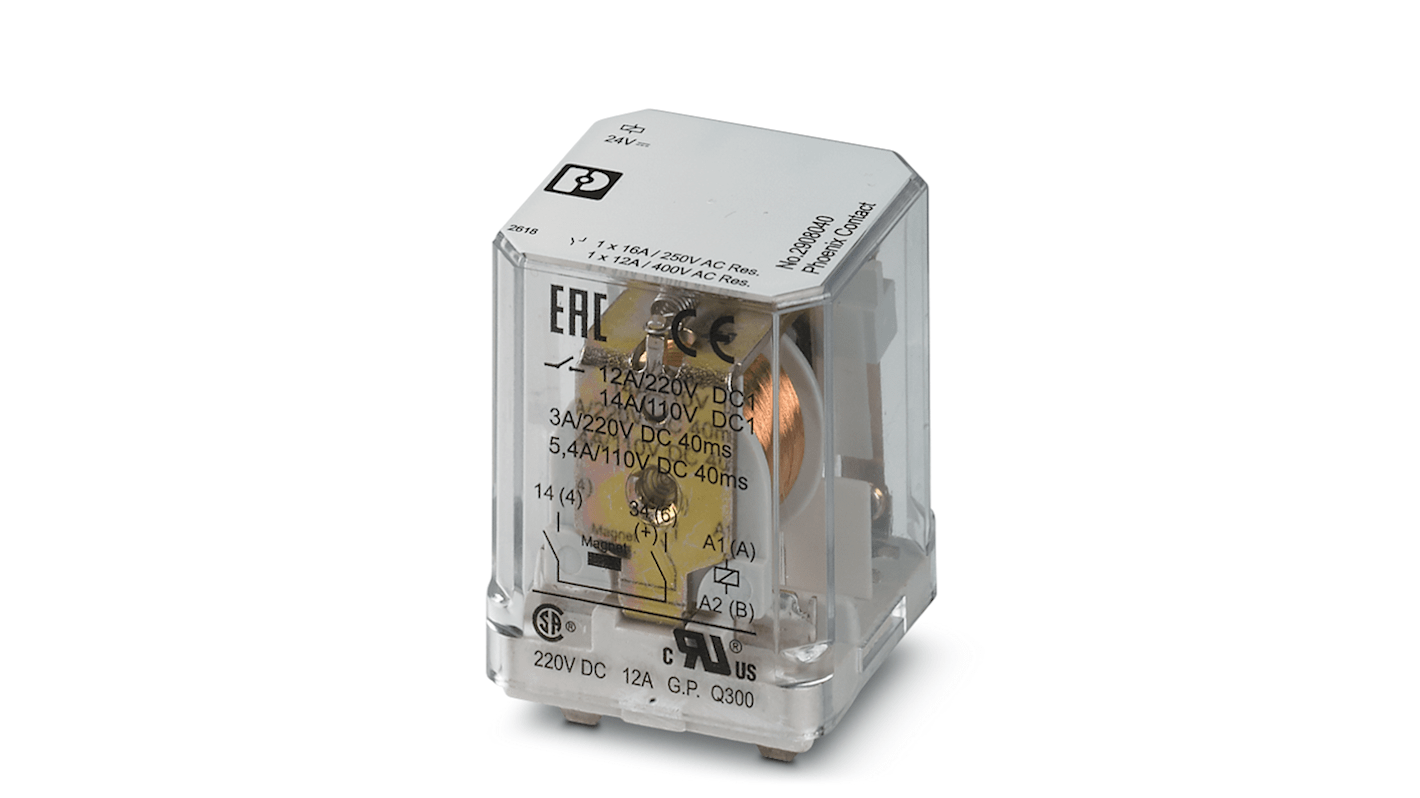

Phoenix Contact Non-Latching Relay Module, SPNO - REL-PR1-24DC/1/MB - 2908040


Choose this plug-in relay from Phoenix Contact for switching high DC loads in household appliances, industrial machinery and telecommunications equipment. The unit can be mounted onto a PCB (printed circuit board), so it's particularly useful in modular electromechanical systems.

This single relay uses silver-alloy contacts that offer good conductivity and good resistance to corrosion. A blowout magnet ensures that the switching arc is safely directed away during operation.

The unit works efficiently in a temperature range of -40°C to +70°C, making it suitable for use in tough industrial settings. A service life of 20 million cycles means you can be confident of durability and minimal maintenance.

• SPNO (single pole, normally open) contact configuration

• Coil power of 1.68 W

• Coil voltage of 24 V DC

• Switching current of 0.005 A

• Isolation coil to contact of 2.5 kV

• Typical input current of 70 mA

• Typical response time of 20 ms

• Typical release time of 15 ms

• Power dissipation of 1.6 W for nominal condition

• Dimensions of 38.6 (width) x 36.1 (height) x 45.5 mm (depth)
