Phoenix Contact DIN Rail Power Relay, 230V ac Coil, 8A Switching Current, 3PDT
- RS Stock No.:
- 794-3636
- Mfr. Part No.:
- 2903276
- Brand:
- Phoenix Contact

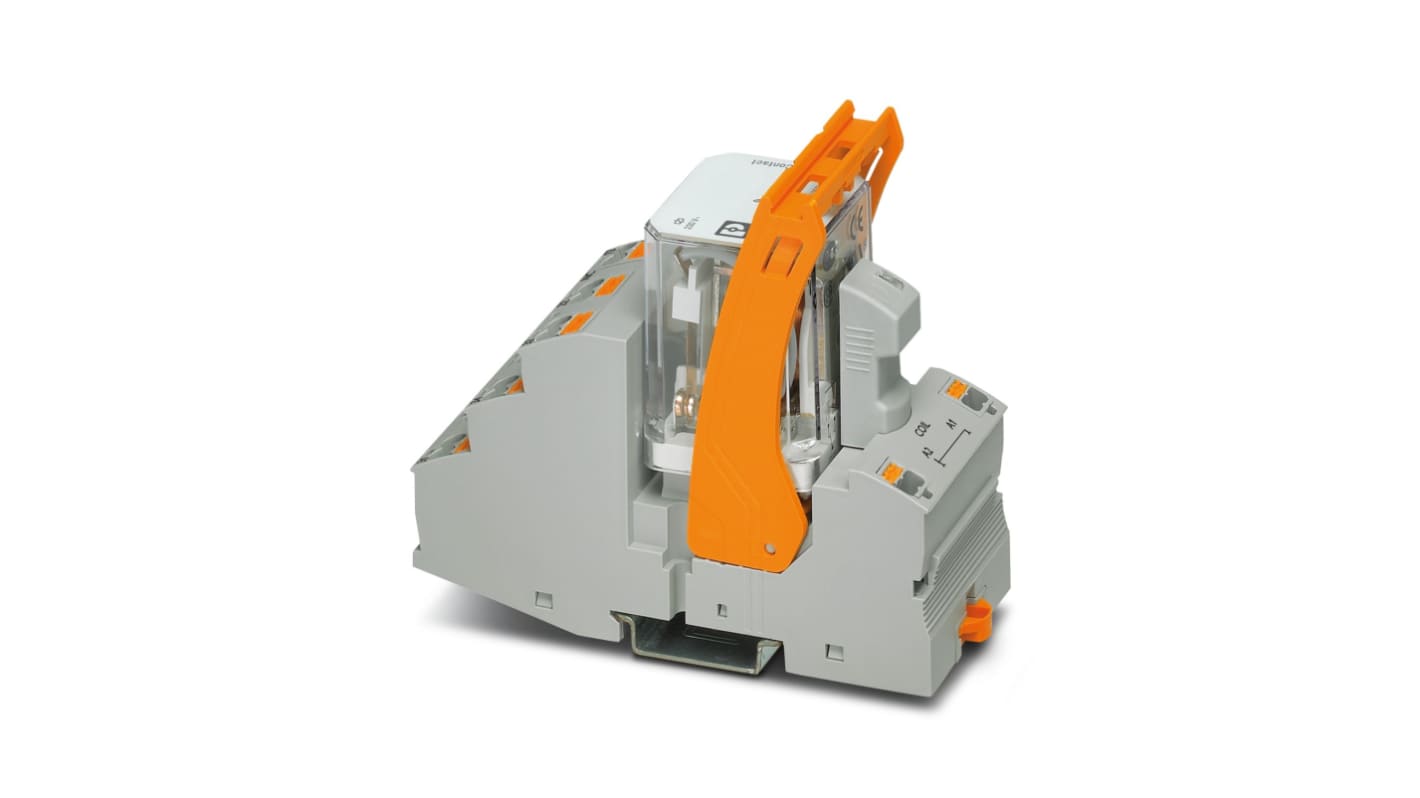

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£27.96
(exc. VAT)
£33.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £27.96 |
| 5 - 9 | £27.09 |
| 10 + | £25.95 |
*price indicative
- RS Stock No.:
- 794-3636
- Mfr. Part No.:
- 2903276
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 230V ac | |
| Contact Configuration | 3PDT | |
| Mounting Type | DIN Rail | |
| Switching Current | 8A | |
| Number of Poles | 3 | |
| Latching | No | |
| Series | RIF | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 440V ac | |
| Maximum Switching Voltage DC | 250V dc | |
| Length | 43mm | |
| Coil Resistance | 7080Ω | |
| Coil Power | 2.8W | |
| Height | 111mm | |
| Contact Material | Silver Alloy | |
| Depth | 90mm | |
| Life | 10000000 (Mechanical) cycles | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +40°C | |
| Maximum Switching Power AC | 4 kVA | |
| Maximum Switching Power DC | 216 W | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 230V ac | ||
Contact Configuration 3PDT | ||
Mounting Type DIN Rail | ||
Switching Current 8A | ||
Number of Poles 3 | ||
Latching No | ||
Series RIF | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 440V ac | ||
Maximum Switching Voltage DC 250V dc | ||
Length 43mm | ||
Coil Resistance 7080Ω | ||
Coil Power 2.8W | ||
Height 111mm | ||
Contact Material Silver Alloy | ||
Depth 90mm | ||
Life 10000000 (Mechanical) cycles | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +40°C | ||
Maximum Switching Power AC 4 kVA | ||
Maximum Switching Power DC 216 W | ||
Application Power | ||
RIF 4 Power Relay Module
Professional range of power relays that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.
Easy wiring due to push in connection technology
Easy handling and extension of range
Plug in display/suppressor module
AC and DC versions
2 and 3 contact options
Yellow LED indicator
Varistor or damping diode protective circuit
Easy handling and extension of range
Plug in display/suppressor module
AC and DC versions
2 and 3 contact options
Yellow LED indicator
Varistor or damping diode protective circuit
