Phoenix Contact DIN Rail Power Relay, 120V ac Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 212-7314
- Mfr. Part No.:
- 2903704
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£13.06
(exc. VAT)
£15.67
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.06 |
*price indicative
- RS Stock No.:
- 212-7314
- Mfr. Part No.:
- 2903704
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Relay | |
| Coil Voltage | 120V ac | |
| Contact Configuration | 3PDT | |
| Mount Type | DIN Rail | |
| Series | REL-PR3-120AC/3X21 | |
| Terminal Type | Plug-In | |
| Switching Current | 16A | |
| Switching Power | 4kVA | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 440V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 1.9kΩ | |
| Maximum Operating Temperature | 55°C | |
| Length | 36.1mm | |
| Height | 36.1mm | |
| Coil Power | 2.76W | |
| Standards/Approvals | CSA/UL Recognised/cUL Recognised/EAC/EAC/cULus Recognised | |
| Width | 38.6mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Relay | ||
Coil Voltage 120V ac | ||
Contact Configuration 3PDT | ||
Mount Type DIN Rail | ||
Series REL-PR3-120AC/3X21 | ||
Terminal Type Plug-In | ||
Switching Current 16A | ||
Switching Power 4kVA | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 440V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 1.9kΩ | ||
Maximum Operating Temperature 55°C | ||
Length 36.1mm | ||
Height 36.1mm | ||
Coil Power 2.76W | ||
Standards/Approvals CSA/UL Recognised/cUL Recognised/EAC/EAC/cULus Recognised | ||
Width 38.6mm | ||
Contact Material Silver Nickel Alloy | ||

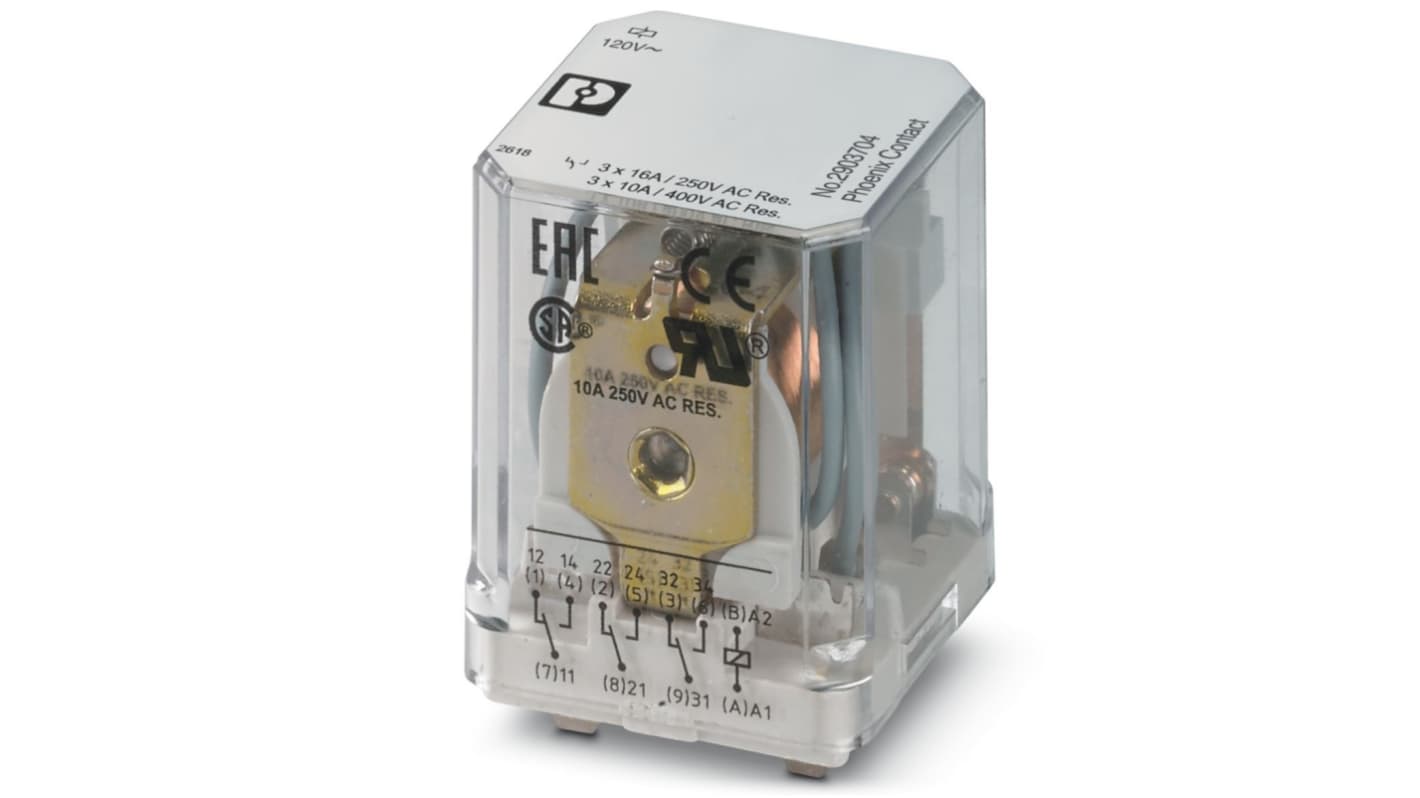

The Phoenix Contact Plug-in high-power relay with power contacts.
3 PDTs
coil voltage: 120 V AC
