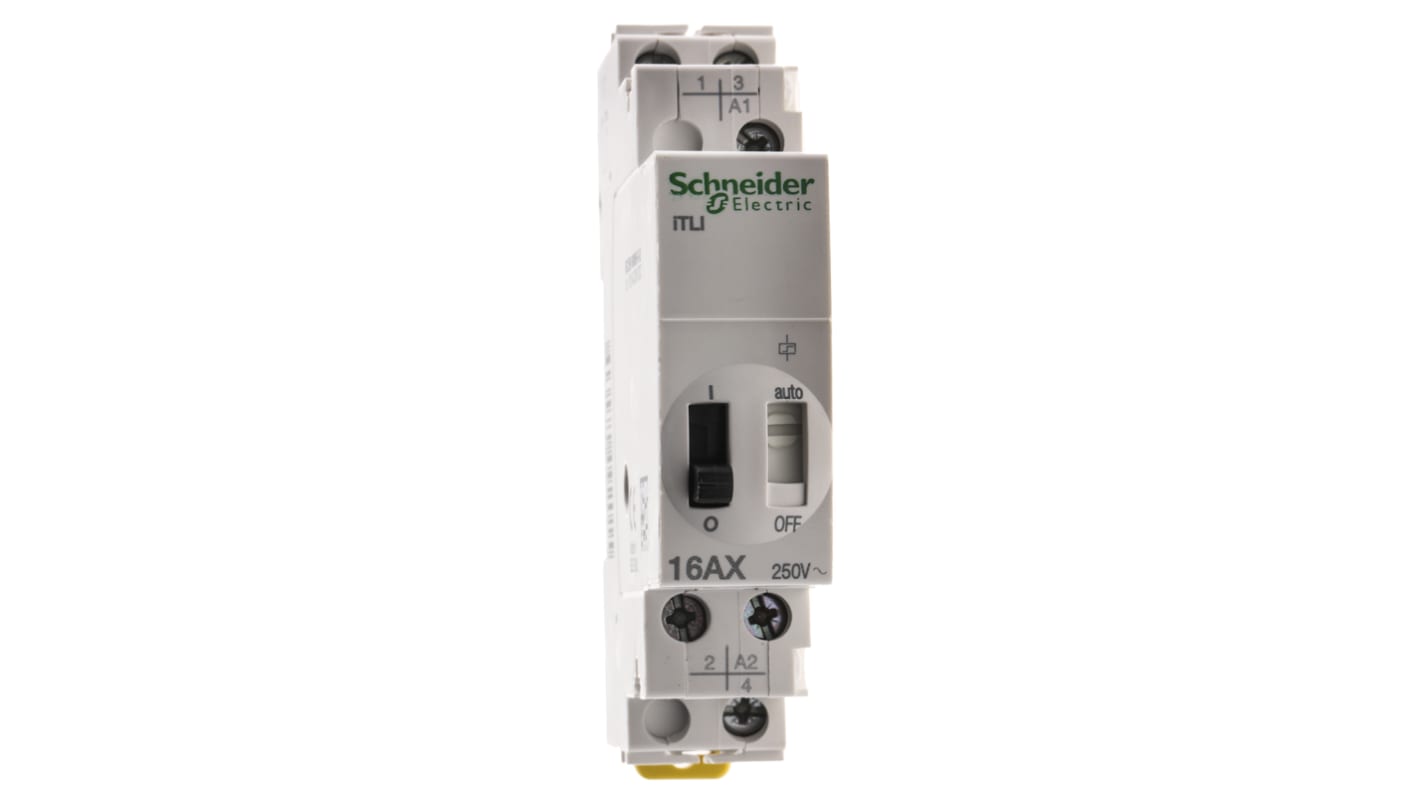

Schneider Electric DIN Rail Power Relay, 12V ac Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 791-3039
- Mfr. Part No.:
- A9C30015
- Brand:
- Schneider Electric
Unavailable
RS will no longer stock this product.
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3039
- Mfr. Part No.:
- A9C30015
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Relay | |
| Coil Voltage | 12V ac | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | ACTI9 iTL | |
| Switching Voltage | 250V | |
| Switching Current | 16A | |
| Width | 18mm | |
| Standards/Approvals | ISO 14025:2010, RoHS Directive (European Directive 2002/95/EC of 27 January 2003), RoHS Directive (European Directive 2011/65/EU of 8 June 2011), EN 15804:2012 + A1:2013 | |
| Length | 86mm | |
| Height | 71mm | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Relay | ||
Coil Voltage 12V ac | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series ACTI9 iTL | ||
Switching Voltage 250V | ||
Switching Current 16A | ||
Width 18mm | ||
Standards/Approvals ISO 14025:2010, RoHS Directive (European Directive 2002/95/EC of 27 January 2003), RoHS Directive (European Directive 2011/65/EU of 8 June 2011), EN 15804:2012 + A1:2013 | ||
Length 86mm | ||
Height 71mm | ||
Better World Product Yes | ||
Acti9 iTL Impulse Relays
iTL impulse relays are used to control by pushbuttons lighting circuits consisting of incandescent lamps, low-voltage halogen lamps, fluorescent lamps and discharge lamps.
Closing of the impulse relay pole is triggered by an impulse on the coil
Having two stable mechanical positions, the pole will be opened by the next impulse
Can be controlled by an unlimited number of pushbuttons.
Zero energy consumption
