MPN

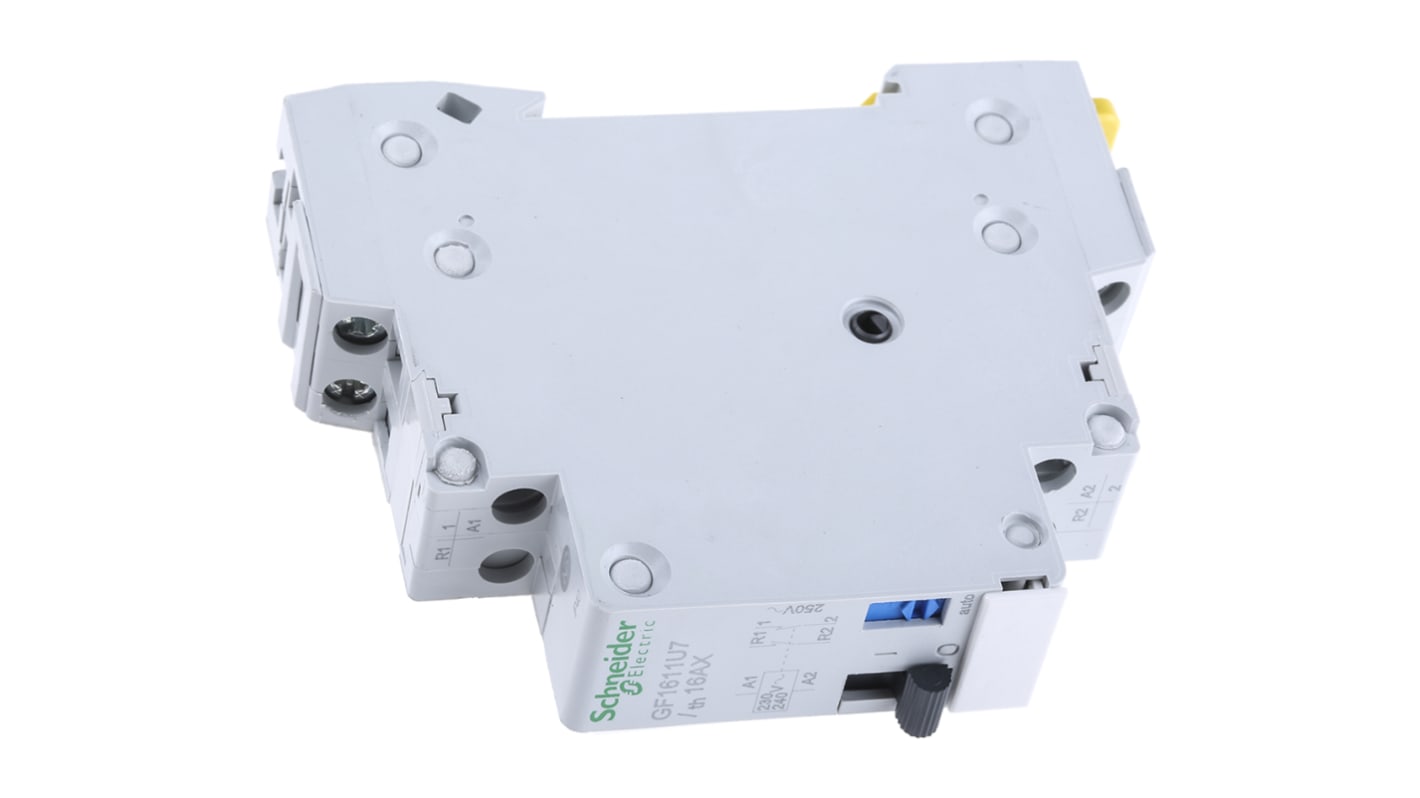

Schneider Electric DIN Rail Power Relay, 230V ac, 240 V ac Coil, 16A Switching Current, SPDT

RS Stock No.:: 244-0078
Mfr. Part No.:: GF1611U7
Brand:: Schneider Electric

Schneider Electric DIN Rail Power Relay, 230V ac, 240 V ac Coil, 16A Switching Current, SPDT

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£53.14

(exc. VAT)

£63.77

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship
Plus 10 unit(s) ready to ship from another location
Plus 3 unit(s) shipping from 08 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£53.14
5 - 9	£51.52
10 +	£48.81

*price indicative

RS Stock No.:: 244-0078
Mfr. Part No.:: GF1611U7
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Coil Voltage	230V ac, 240V ac
	Product Type	Power Relay
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	TeSyS GC/GY
	Terminal Type	Screw Clamp
	Switching Current	16A
	Impulse Duration	70ms
	Width	18mm
	Standards/Approvals	NF C 61-112, IEC 60669-1, IEC 60669-2
	Height	81mm
	Length	64mm

	Select all
	Brand Schneider Electric
	Coil Voltage 230V ac, 240V ac
	Product Type Power Relay
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series TeSyS GC/GY
	Terminal Type Screw Clamp
	Switching Current 16A
	Impulse Duration 70ms
	Width 18mm
	Standards/Approvals NF C 61-112, IEC 60669-1, IEC 60669-2
	Height 81mm
	Length 64mm

RoHS Status: Exempt

Control/Impulse Relays for Modular Contactors

Latch on impulse and remain latched until another impulse is applied

Max 1 min on, with min. 4 min off

Make Time 70 ms

Current shown is I_th

Schneider Electric Modular Contactors

Low noise a.c. compact modular contactors and accessories are ideal for heating lighting and building service type applications. The units are designed for mounting in control panels or cabinets on symmetrical DIN rail or they may be housed in modular enclosures.

Standards

Conforms to IEC947-5-1, IEC669-1, IEC669-2.
