Schneider Electric DIN Rail Power Relay, 230 → 240V ac Coil, 16A Switching Current
- RS Stock No.:
- 220-1208
- Mfr. Part No.:
- A9C34811
- Brand:
- Schneider Electric
2 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£68.33
(exc. VAT)
£82.00
(inc. VAT)
| Units | Per unit |
| 1 + | £68.33 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-1208
- Mfr. Part No.:
- A9C34811
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BE
Product Details

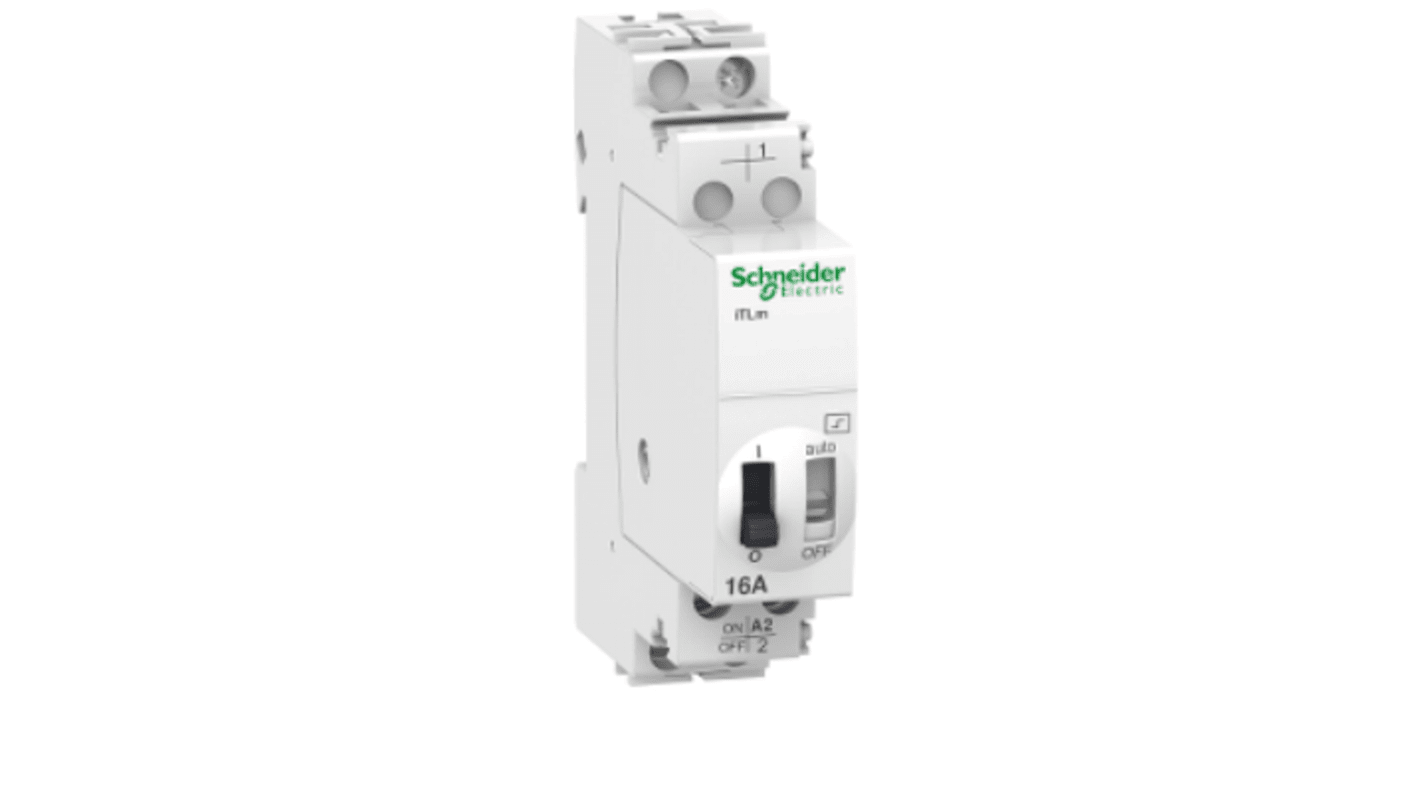

The Schneider Electric Acti9 iTLm is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day.
The impulse relays allow latched type control orders from a changeover contact (switch, time switch, thermostat)
It is mainly used for lighting control applications
The Ui rated insulation voltage is 440VAC
It is mainly used for lighting control applications
The Ui rated insulation voltage is 440VAC
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 230 → 240V ac |
| Mounting Type | DIN Rail |
| Switching Current | 16A |
| Number of Poles | 1 |
| Terminal Type | Tunnel |
| Length | 18mm |
| Depth | 60mm |
| Better World Verification | Green Premium |
| Height | 84mm |
| Series | ITLm |
| Better World Product | Yes |
