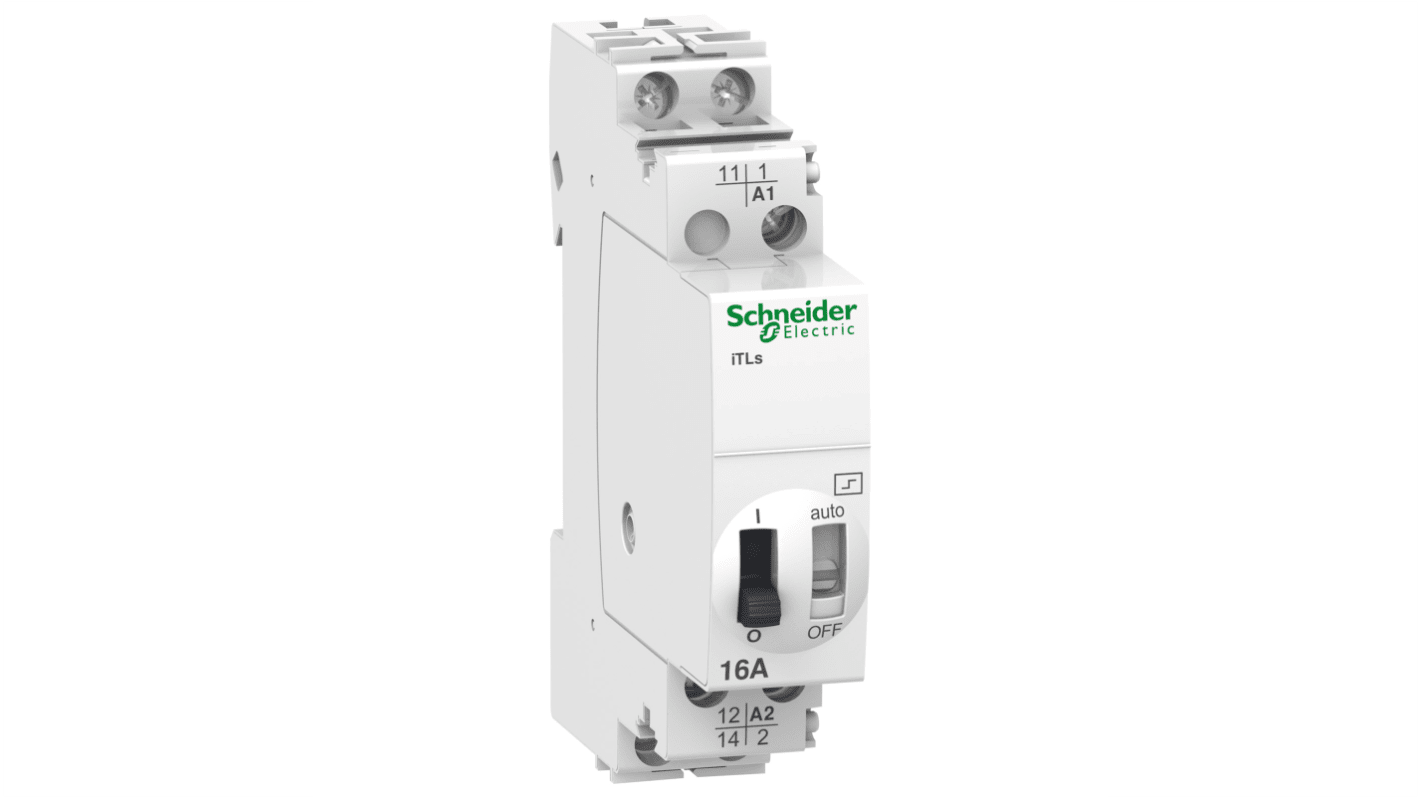

Schneider Electric DIN Rail Power Relay, 110 V dc, 230 → 240V ac Coil, 16A Switching Current
- RS Stock No.:
- 220-1207
- Mfr. Part No.:
- A9C32811
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£74.29
(exc. VAT)
£89.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £74.29 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-1207
- Mfr. Part No.:
- A9C32811
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Coil Voltage | 110 V dc, 230 → 240V ac | |
Mounting Type | DIN Rail | |
Switching Current | 16A | |
Number of Poles | 1 | |
Series | ITLs | |
Terminal Type | Tunnel | |
Length | 18mm | |
Depth | 60mm | |
Better World Product | Yes | |
Height | 84mm | |
Better World Verification | Green Premium | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Coil Voltage 110 V dc, 230 → 240V ac | ||
Mounting Type DIN Rail | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Series ITLs | ||
Terminal Type Tunnel | ||
Length 18mm | ||
Depth 60mm | ||
Better World Product Yes | ||
Height 84mm | ||
Better World Verification Green Premium | ||
- COO (Country of Origin):
- BE
The Schneider Electric Acti9 iTLs is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 100 switching operations/day or 5 switching operations/minute.
It is mainly used for lighting control applications
This impulse relays allow remote indication of their operating state
The operating frequency is 50Hz or 60Hz
It is DIN rail mountable
Pollution degree is 3
Overvoltage category is IV
This impulse relays allow remote indication of their operating state
The operating frequency is 50Hz or 60Hz
It is DIN rail mountable
Pollution degree is 3
Overvoltage category is IV
