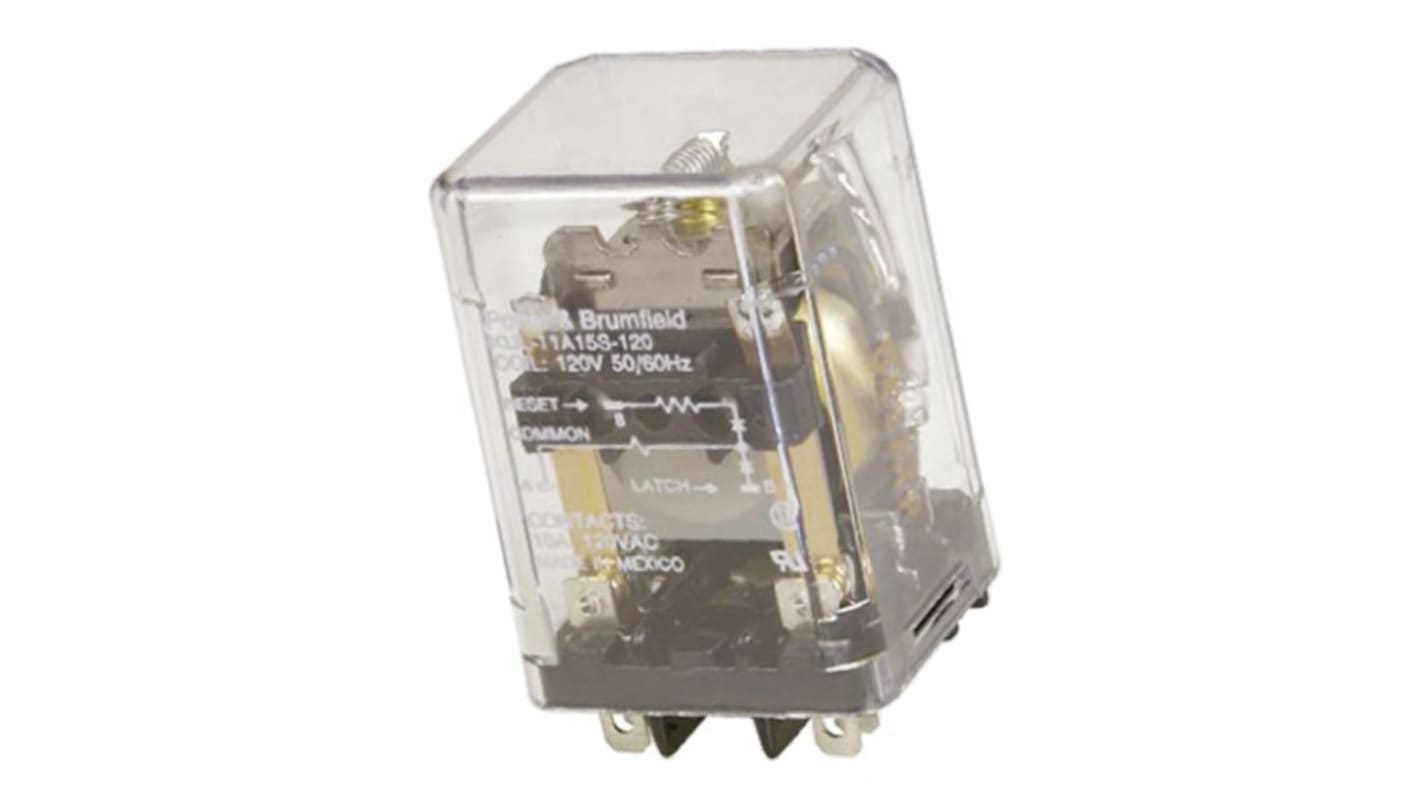

TE Connectivity Power Relay, 120V Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 783-0855
- Mfr. Part No.:
- KUL-11A15S-120
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£69.90
(exc. VAT)
£83.88
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £69.90 |
| 10 - 24 | £58.29 |
| 25 - 49 | £53.54 |
| 50 - 149 | £49.71 |
| 150 + | £48.44 |
*price indicative
- RS Stock No.:
- 783-0855
- Mfr. Part No.:
- KUL-11A15S-120
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 120V | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Series | T92 | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -45°C | |
| Switching AC Voltage | 240V ac | |
| Coil Resistance | 3.7kΩ | |
| Maximum Operating Temperature | 70°C | |
| Height | 54.8mm | |
| Standards/Approvals | CSA, UL, UR | |
| Width | 35.7mm | |
| Length | 38.9mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 120V | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Series T92 | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Minimum Operating Temperature -45°C | ||
Switching AC Voltage 240V ac | ||
Coil Resistance 3.7kΩ | ||
Maximum Operating Temperature 70°C | ||
Height 54.8mm | ||
Standards/Approvals CSA, UL, UR | ||
Width 35.7mm | ||
Length 38.9mm | ||
Contact Material Silver Alloy | ||
KUL Series Relay
KUL Series relay from TE Connectivity are used typically in alarm systems, process and power control and machine tools.
Magnetic latching
