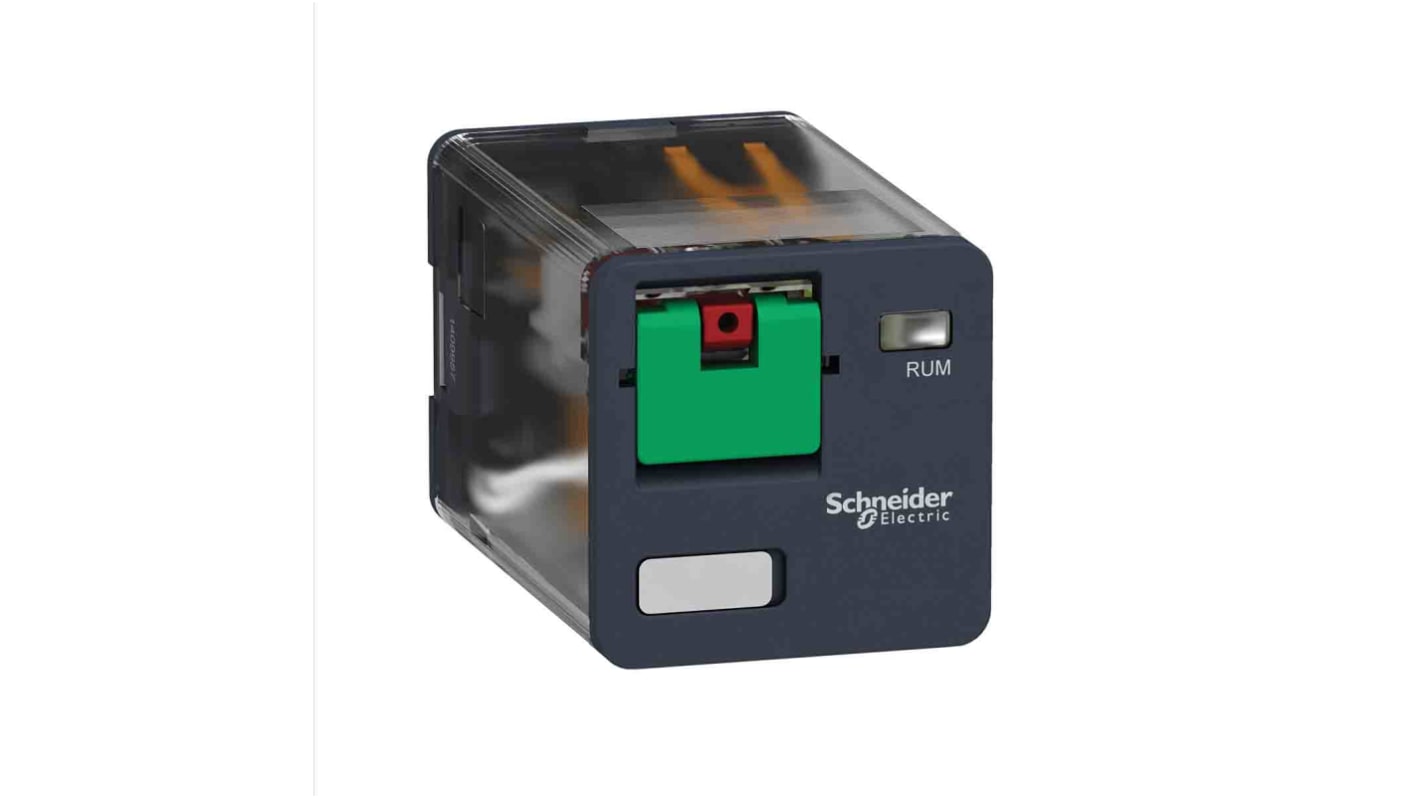

Schneider Electric Power Relay, 120V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 220-5149
- Mfr. Part No.:
- RUMC31F7
- Brand:
- Schneider Electric
Subtotal (1 pack of 10 units)*
£155.86
(exc. VAT)
£187.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £15.586 | £155.86 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-5149
- Mfr. Part No.:
- RUMC31F7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Relay | |
| Coil Voltage | 120V ac | |
| Contact Configuration | DPDT | |
| Series | Harmony Relay RUM | |
| Switching Current | 10A | |
| Switching DC Voltage | 30V dc | |
| Switching Power | 2.5kVA | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 300V ac | |
| Coil Resistance | 1.7kΩ | |
| Maximum Operating Temperature | 55°C | |
| Coil Power | 280W | |
| Standards/Approvals | UL 508, UL, RoHS, REACH, EN/IEC 61810-1, EAC, CSA C22.2 No. 14, CSA | |
| Contact Material | Silver Nickel Alloy | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Relay | ||
Coil Voltage 120V ac | ||
Contact Configuration DPDT | ||
Series Harmony Relay RUM | ||
Switching Current 10A | ||
Switching DC Voltage 30V dc | ||
Switching Power 2.5kVA | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 300V ac | ||
Coil Resistance 1.7kΩ | ||
Maximum Operating Temperature 55°C | ||
Coil Power 280W | ||
Standards/Approvals UL 508, UL, RoHS, REACH, EN/IEC 61810-1, EAC, CSA C22.2 No. 14, CSA | ||
Contact Material Silver Nickel Alloy | ||
Better World Product Yes | ||
The Schneider electric range zelio RUM of universal plug-in relay on base, Spring return lockable test button for testing contacts A mechanical indication of relay status No adjustments required for standard operation Socket to be ordered separately. Supply voltage is 24Vac and current is 10A.Relays are electrical switches that are operated by electrical impulses with the primary function to open and close a circuit, they can also be referred to as industrial switches.
Green Premium product
Mercury free
REACh free of SVHC
