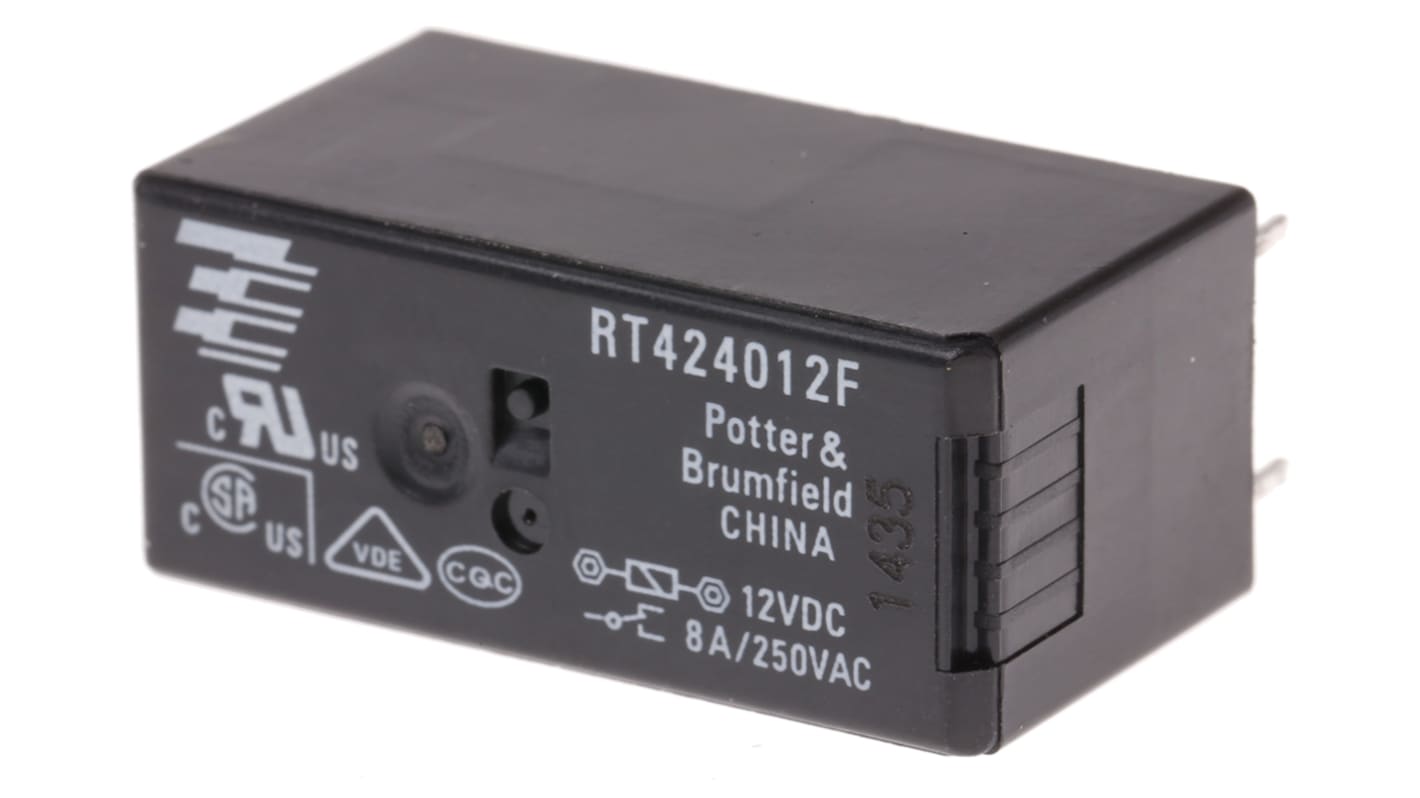

TE Connectivity PCB Power Relay, 12V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 782-1264
- Mfr. Part No.:
- RT424012F
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£2.46
(exc. VAT)
£2.95
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,782 unit(s) shipping from 04 May 2026
- Plus 1 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.46 |
*price indicative
- RS Stock No.:
- 782-1264
- Mfr. Part No.:
- RT424012F
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | RT2 | |
| Terminal Type | Solder | |
| Switching Current | 8A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -45°C | |
| Switching Power | 400mW | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 360Ω | |
| Length | 29mm | |
| Height | 15.7mm | |
| Standards/Approvals | UR, CSA, UL | |
| Coil Power | 400mW | |
| Width | 12.7mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series RT2 | ||
Terminal Type Solder | ||
Switching Current 8A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -45°C | ||
Switching Power 400mW | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 360Ω | ||
Length 29mm | ||
Height 15.7mm | ||
Standards/Approvals UR, CSA, UL | ||
Coil Power 400mW | ||
Width 12.7mm | ||
Contact Material Silver Nickel Alloy | ||
RT Series
Professional RT Series general purpose industrial low profile PCB relay.
5mm Pinning
Operating Temperature:-40 to + 70°C
Dimensions: L 29mm, W 12.7mm, D 15.7mm
UL Class F coil insulation.
Monostable coil magnetic system
Approvals
cULus, CSA, VDE, RoHS
