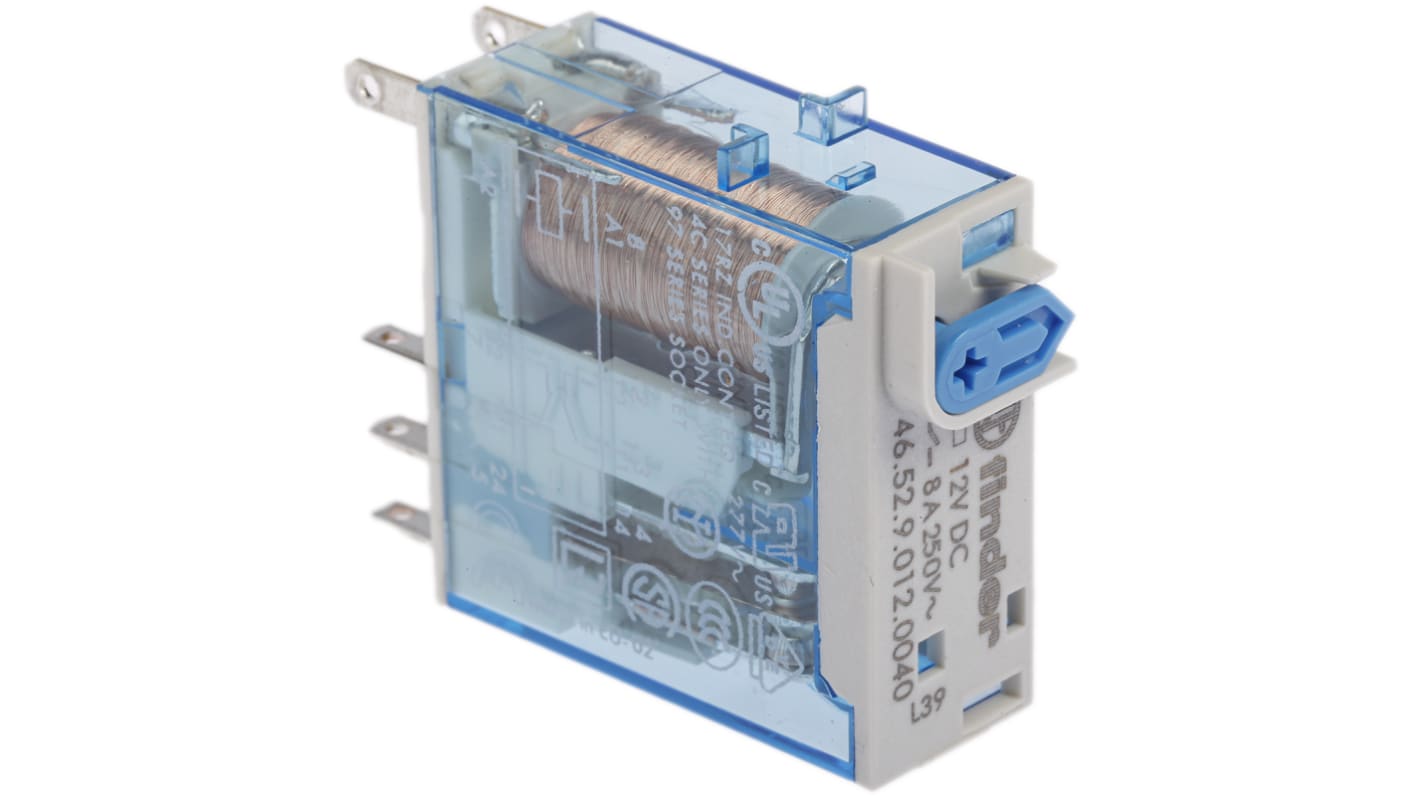

Finder Plug In Power Relay, 12V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 534-5055
- Distrelec Article No.:
- 137-44-388
- Mfr. Part No.:
- 46.52.9.012.0040
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£8.44
(exc. VAT)
£10.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 293 unit(s) ready to ship
- Plus 75 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £8.44 |
5 - 9 | £8.17 |
10 + | £7.84 |
*price indicative
- RS Stock No.:
- 534-5055
- Distrelec Article No.:
- 137-44-388
- Mfr. Part No.:
- 46.52.9.012.0040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 12V dc | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 8A | |
Number of Poles | 2 | |
Series | 46 Series | |
Latching | No | |
Terminal Type | Quick Connect | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 15V dc | |
Length | 29mm | |
Coil Resistance | 300Ω | |
Coil Power | 500mW | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +70°C | |
Isolation Coil To Contact | 6kV | |
Life | 100000 Cycles | |
Contact Material | Silver Alloy | |
Depth | 12.4mm | |
Height | 32.8mm | |
Maximum Switching Power AC | 2 kVA | |
Application | General Purpose | |
Dimensions | 12.4x32.8x29mm | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Series 46 Series | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 15V dc | ||
Length 29mm | ||
Coil Resistance 300Ω | ||
Coil Power 500mW | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 6kV | ||
Life 100000 Cycles | ||
Contact Material Silver Alloy | ||
Depth 12.4mm | ||
Height 32.8mm | ||
Maximum Switching Power AC 2 kVA | ||
Application General Purpose | ||
Dimensions 12.4x32.8x29mm | ||
- COO (Country of Origin):
- IT
Finder 46 Series Power Relay, 12V DC Coil Voltage, DPDT Contact Configuration - 46.52.9.012.0040
This power relay is designed for general-purpose applications, operating at a coil voltage of 12V DC. The dimensions are compact, measuring 12.4mm in depth, 32.8mm in height, and 29mm in length. This relay offers reliable performance for various automation needs.
Features & Benefits
• DPDT contact configuration enables versatile switching options
• Switching current capacity of 8A supports diverse loads
• Quick connect terminals for fast and efficient installation
• High voltage isolation of 6kV enhances safety measures
• Switching current capacity of 8A supports diverse loads
• Quick connect terminals for fast and efficient installation
• High voltage isolation of 6kV enhances safety measures
Applications
• Utilised in control panels
• Ideal for road and tunnel lighting systems
• Commonly used in lifts and lifting mechanisms
• Employed in bottling plants for reliable operation
• Suitable for shipyard where durability is crucial
• Ideal for road and tunnel lighting systems
• Commonly used in lifts and lifting mechanisms
• Employed in bottling plants for reliable operation
• Suitable for shipyard where durability is crucial
How does the relay ensure safe operation under high-voltage conditions?
The high-voltage isolation rating of 6kV allows for secure function as it effectively separates the coil from the contact circuit, shielding the operational components from power surges and potential faults.
What is the significance of the quick connect terminals in this relay?
Quick connect terminals facilitate simpler connections, improving installation time while ensuring a secure electrical link, which is essential for maintaining consistent performance.
What environments can this relay operate in without compromising functionality?
This relay can function efficiently in a broad temperature range from -40°C to +70°C, allowing it to withstand extreme conditions found in industrial settings without affecting its operational capabilities.
Approvals
UL recognised
