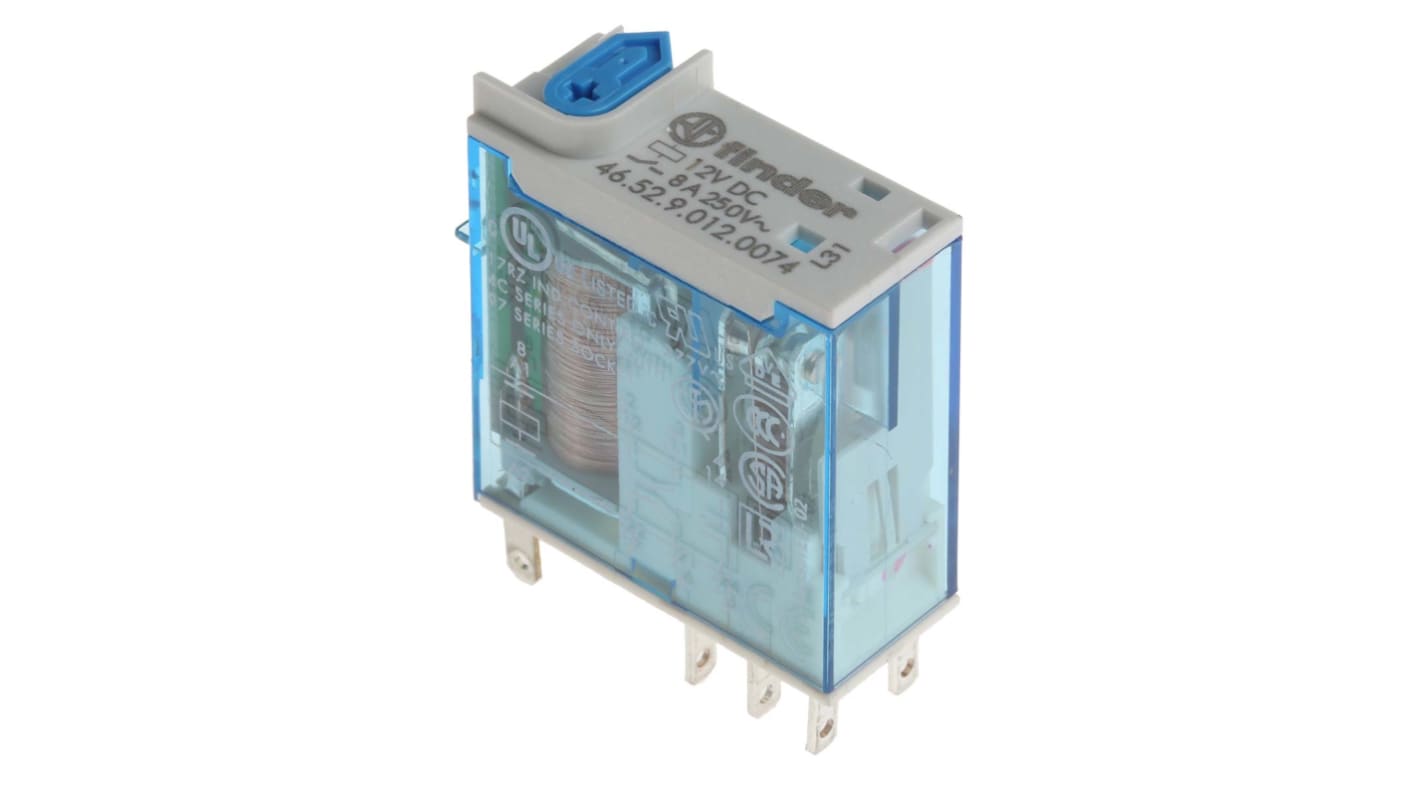

Finder PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 534-5320
- Mfr. Part No.:
- 46.52.9.012.0074
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£10.30
(exc. VAT)
£12.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 434 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.30 |
5 - 9 | £9.98 |
10 + | £9.55 |
*price indicative
- RS Stock No.:
- 534-5320
- Mfr. Part No.:
- 46.52.9.012.0074
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 12V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 8A | |
Number of Poles | 2 | |
Series | 46 Series | |
Latching | No | |
Terminal Type | PCB Pin | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 15V dc | |
Length | 29mm | |
Coil Resistance | 300Ω | |
Coil Power | 500mW | |
Maximum Operating Temperature | +70°C | |
Isolation Coil To Contact | 6kV | |
Minimum Operating Temperature | -40°C | |
Height | 32.8mm | |
Depth | 12.4mm | |
Contact Material | Silver Alloy | |
Maximum Switching Power AC | 2 kVA | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Series 46 Series | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 15V dc | ||
Length 29mm | ||
Coil Resistance 300Ω | ||
Coil Power 500mW | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 6kV | ||
Minimum Operating Temperature -40°C | ||
Height 32.8mm | ||
Depth 12.4mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 2 kVA | ||
Application General Purpose | ||
- COO (Country of Origin):
- IT
Finder Series 46 Power Relay, 12V DC Coil Voltage, DPDT Contact Configuration - 46.52.9.012.0074
This power relay is suited for various automation and control applications across different industries. Its reliability and performance make it ideal for controlling blinds, grilles, elevators, and panels. With a coil voltage of 12V DC and a switching current of 8A, it plays a crucial role in ensuring efficient operation within electrical systems.
Features & Benefits
• Dual-pole configuration for flexible control
• Supports 8A switching current for managing substantial loads
• Designed for PCB mount to facilitate installation
• Coil resistance of 300Ω for effective operation
• High isolation rated at 6kV between coil and contacts
• Silver alloy contacts for enhanced durability
• Supports 8A switching current for managing substantial loads
• Designed for PCB mount to facilitate installation
• Coil resistance of 300Ω for effective operation
• High isolation rated at 6kV between coil and contacts
• Silver alloy contacts for enhanced durability
Applications
• Suitable for automation for blinds and shutters
• Ideal for lift and lift control systems
• Shipyard equipment interfaces
• Road and tunnel lighting systems
• Bottling plant machinery for consistent operation
• Ideal for lift and lift control systems
• Shipyard equipment interfaces
• Road and tunnel lighting systems
• Bottling plant machinery for consistent operation
What is the maximum switching voltage for DC applications?
The maximum switching voltage for DC is 15V, allowing for safe handling of low-voltage systems.
How do I install this relay in my control panel?
Ensure secure PCB mounting and connect the terminals according to your control circuit configuration.
What environmental conditions can this relay withstand?
It operates efficiently within a temperature range of -40°C to +70°C, suitable for varied settings.
Can this relay handle inductive loads?
Yes, the relay is capable of accommodating a variety of loads, including inductive types, ensuring application versatility.
Is maintenance required for this relay?
Regular checks for cleanliness and secure connections are recommended for optimal performance and longevity.
Approvals
UL recognised
