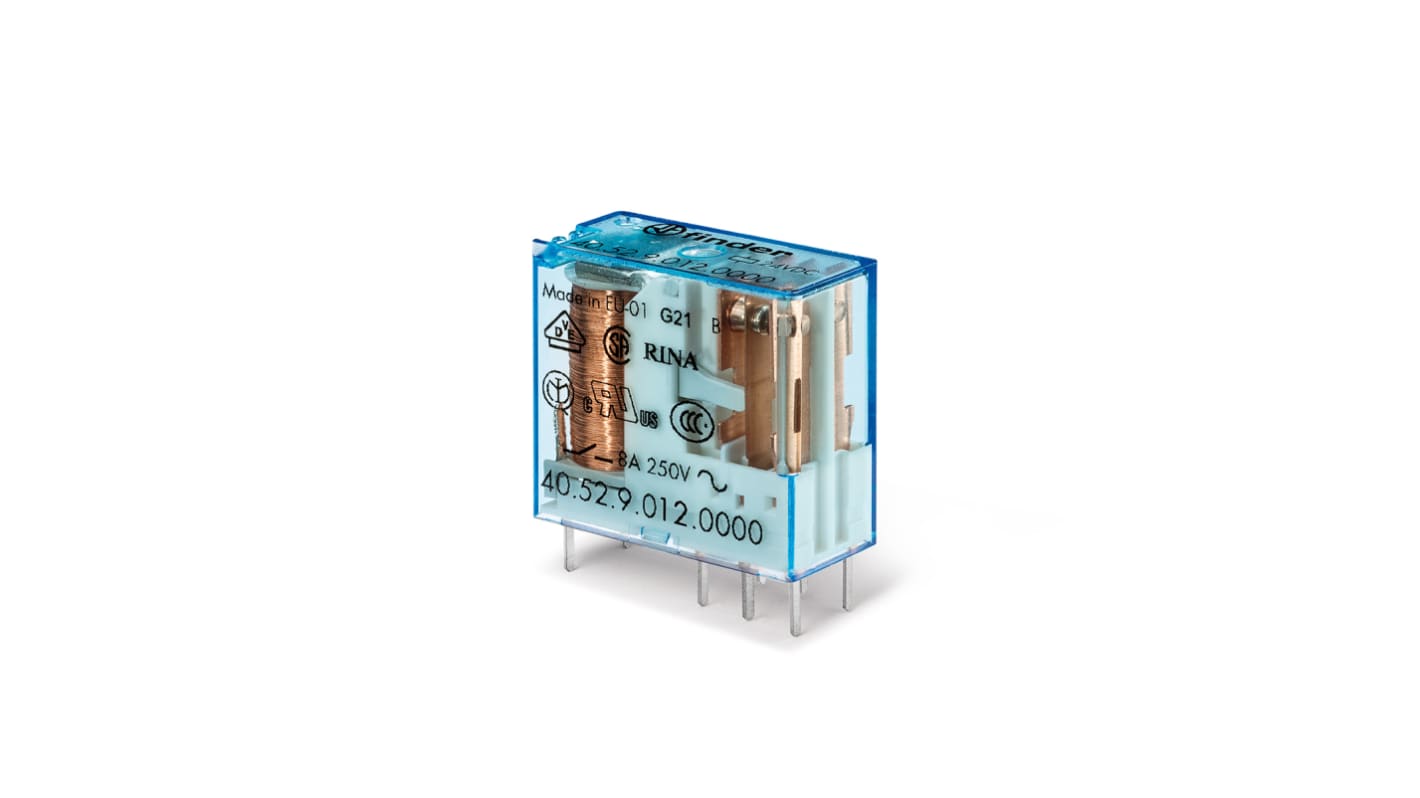

Finder PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 182-9776
- Distrelec Article No.:
- 137-44-345
- Mfr. Part No.:
- 40.52.9.012.0000
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£6.47
(exc. VAT)
£7.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 613 unit(s) ready to ship from another location
- Plus 46 unit(s) shipping from 23 October 2025
- Plus 50 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £6.47 |
25 - 49 | £5.69 |
50 - 99 | £5.50 |
100 - 249 | £5.07 |
250 + | £4.19 |
*price indicative
- RS Stock No.:
- 182-9776
- Distrelec Article No.:
- 137-44-345
- Mfr. Part No.:
- 40.52.9.012.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 12V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 8A | |
Number of Poles | 2 | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V | |
Length | 29mm | |
Coil Resistance | 220 O | |
Coil Power | 650mW | |
Depth | 12.4mm | |
Series | 40 Series | |
Minimum Operating Temperature | -40°C | |
Height | 25mm | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver Alloy | |
Life | 10 x 10^6 cycles | |
Isolation Coil To Contact | 6kV | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V | ||
Length 29mm | ||
Coil Resistance 220 O | ||
Coil Power 650mW | ||
Depth 12.4mm | ||
Series 40 Series | ||
Minimum Operating Temperature -40°C | ||
Height 25mm | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Alloy | ||
Life 10 x 10^6 cycles | ||
Isolation Coil To Contact 6kV | ||
- COO (Country of Origin):
- IT
Finder Series 40 Power Relay, DPDT Contact Configuration, 12V DC Coil Voltage - 40.52.9.012.0000
This power relay is intended for efficient switching in various electronic applications. Featuring a 12 V DC coil voltage and DPDT configuration, it serves as a dependable component for control panels, automation systems, and other uses. Its robust design ensures functionality across different environments, making it suitable for both commercial and industrial settings.
Features & Benefits
• Offers a switching current of up to 8A
• Suitable for PCB mounting for straightforward installation
• Utilises silver alloy contacts for improved conductivity
• Supports a maximum switching voltage of 400V AC
• Provides exceptional insulation between coil and contact rated at 6kV
• Functions effectively in extreme temperatures from -40°C to +85°C
• Suitable for PCB mounting for straightforward installation
• Utilises silver alloy contacts for improved conductivity
• Supports a maximum switching voltage of 400V AC
• Provides exceptional insulation between coil and contact rated at 6kV
• Functions effectively in extreme temperatures from -40°C to +85°C
Applications
• Automation in blinds and shutters
• Control panels in medical and dentistry equipment
• Vending machines for consistent operations
• Door and gate openers for enhanced security
• Electronic circuit boards in a variety of devices
• Control panels in medical and dentistry equipment
• Vending machines for consistent operations
• Door and gate openers for enhanced security
• Electronic circuit boards in a variety of devices
How does this relay handle high voltage applications?
It has a maximum switching voltage rating of 400V AC, making it suitable for high voltage operations.
What is the best way to install it on a PCB?
For optimal performance, align the pins with compatible PCB holes and ensure secure soldering.
Can it function in extreme temperatures?
Yes, it operates effectively between -40°C to +85°C, accommodating various conditions.
Is it compatible with automation systems?
Yes, it is designed for integration into a variety of automation applications, ensuring reliable switching.
What maintenance is required to ensure proper functioning?
Regularly inspect connections for wear and verify the relay's switching capabilities to maintain durability and performance.
