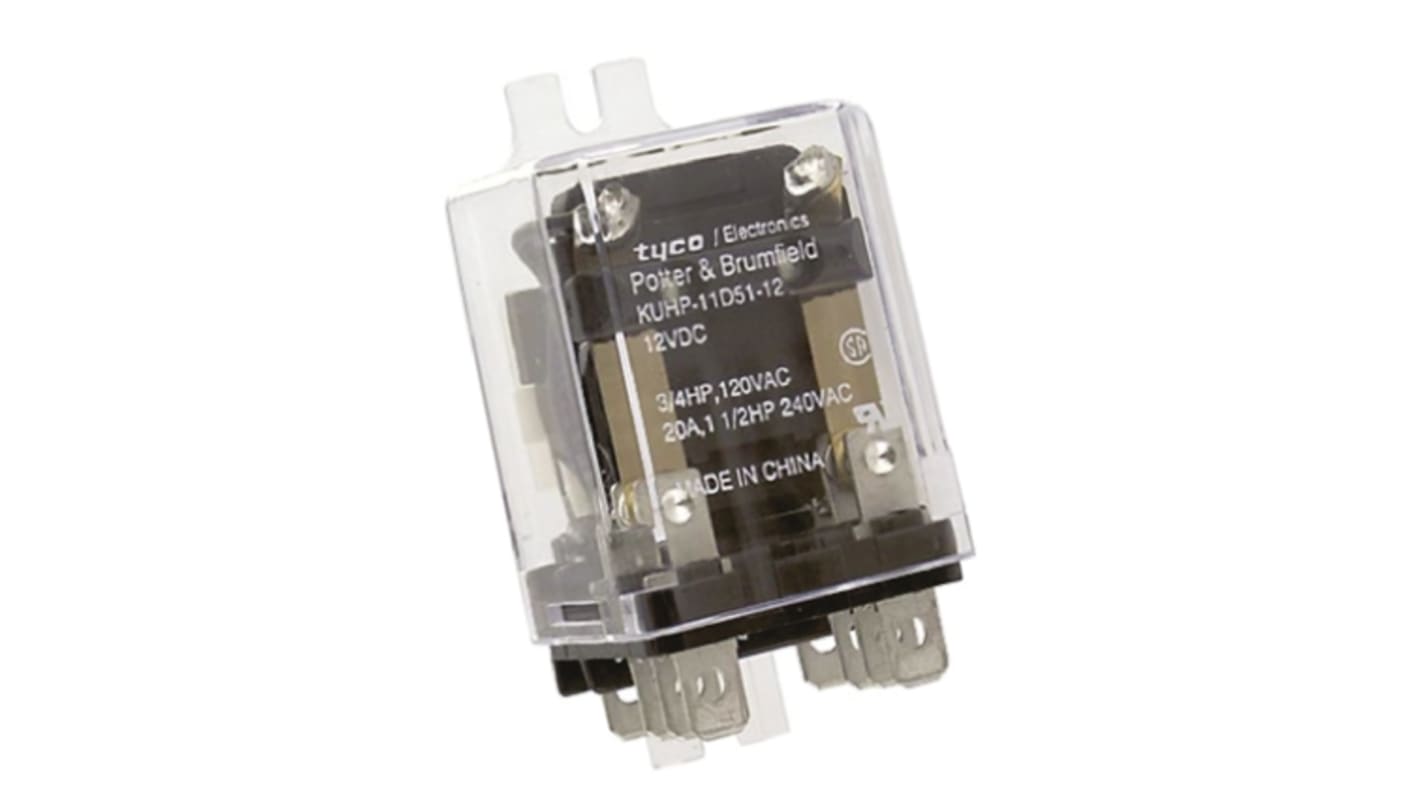

TE Connectivity Panel Power Relay, 12V dc Coil, 20A Switching Current, DPDT
- RS Stock No.:
- 781-2636
- Mfr. Part No.:
- KUHP-11D51-12 7-1393114-7
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£23.89
(exc. VAT)
£28.67
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
- Plus 19 unit(s) shipping from 12 May 2026
- Plus 3 unit(s) shipping from 30 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £23.89 |
| 5 - 9 | £23.20 |
| 10 + | £22.17 |
*price indicative
- RS Stock No.:
- 781-2636
- Mfr. Part No.:
- KUHP-11D51-12 7-1393114-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Mount Type | Panel | |
| Series | KUHP | |
| Terminal Type | Quick Connect | |
| Switching Current | 20A | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -45°C | |
| Switching Power | 1.2W | |
| Coil Resistance | 120Ω | |
| Maximum Operating Temperature | 70°C | |
| Width | 35.7mm | |
| Standards/Approvals | CSA, UR, UL | |
| Length | 73.7mm | |
| Coil Power | 1.2W | |
| Height | 38.9mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Mount Type Panel | ||
Series KUHP | ||
Terminal Type Quick Connect | ||
Switching Current 20A | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -45°C | ||
Switching Power 1.2W | ||
Coil Resistance 120Ω | ||
Maximum Operating Temperature 70°C | ||
Width 35.7mm | ||
Standards/Approvals CSA, UR, UL | ||
Length 73.7mm | ||
Coil Power 1.2W | ||
Height 38.9mm | ||
Contact Material Silver Alloy | ||
KUHP Series Relay
The KUHP series are enclosed 30A switching capability power relays.
.250" combination push-on/solder terminals
Slotted flanges for bracket mounting to a chassis
Designed to meet VDE space requirements
Class B coil insulation
