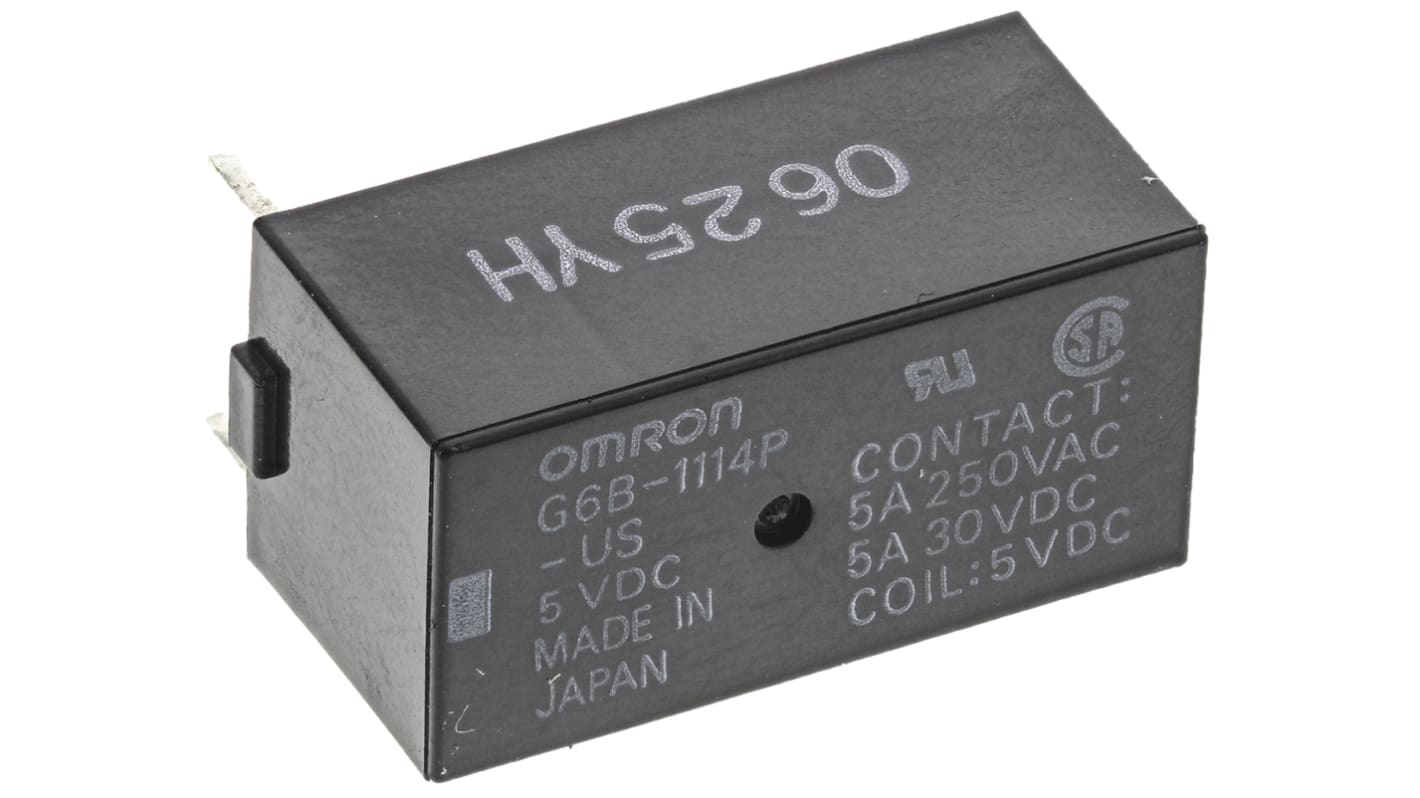

Omron PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 683-9340
- Mfr. Part No.:
- G6B-1114P-US 5DC
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£5.68
(exc. VAT)
£6.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 172 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
- Plus 75 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £5.68 |
25 - 49 | £5.41 |
50 - 99 | £5.13 |
100 - 249 | £4.85 |
250 + | £4.57 |
*price indicative
- RS Stock No.:
- 683-9340
- Mfr. Part No.:
- G6B-1114P-US 5DC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 5V dc | |
Contact Configuration | SPST | |
Mounting Type | PCB Mount | |
Switching Current | 5A | |
Number of Poles | 1 | |
Series | G6B | |
Latching | No | |
Terminal Type | Through Hole | |
Length | 21mm | |
Coil Resistance | 125Ω | |
Coil Power | 200mW | |
Maximum Operating Temperature | +70°C | |
Contact Material | Silver | |
Minimum Operating Temperature | -25°C | |
Height | 10mm | |
Life | 50000000 (Electrical) cycles | |
Depth | 10mm | |
Isolation Coil To Contact | 3kV ac | |
Maximum Switching Power AC | 1.25 kVA | |
Maximum Switching Power DC | 150 W | |
Application | Power | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Series G6B | ||
Latching No | ||
Terminal Type Through Hole | ||
Length 21mm | ||
Coil Resistance 125Ω | ||
Coil Power 200mW | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver | ||
Minimum Operating Temperature -25°C | ||
Height 10mm | ||
Life 50000000 (Electrical) cycles | ||
Depth 10mm | ||
Isolation Coil To Contact 3kV ac | ||
Maximum Switching Power AC 1.25 kVA | ||
Maximum Switching Power DC 150 W | ||
Application Power | ||
- COO (Country of Origin):
- JP
Omron PCB Power Relays - G6B Series
The Omron G6B series PCB power relay is a subminiature, low power consumption device that features a unique moving loop armature that aids in the reduction of relay size, magnetic interference and contact bounce time. Omron G6B power relays are high capacity, high dialectric strength, fully sealed devices with an impulse withstand voltage of 6kV. The G6B series would be ideal for output applications of control equipment.
Subminiature: 20x10x10mm
Low 200 mW power consumption
Low 200 mW power consumption
Approvals
UL recognised; CSA certified
