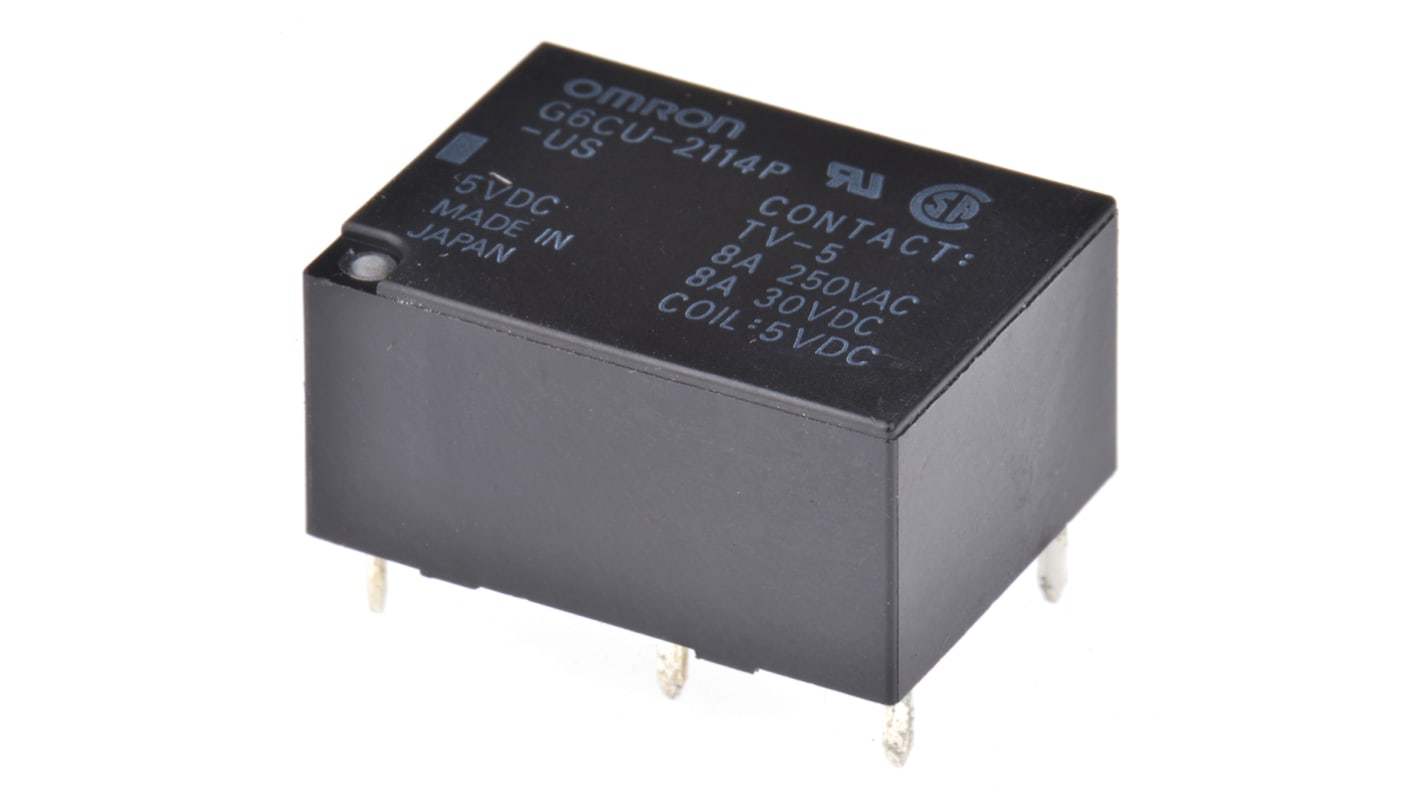

Omron PCB Mount Latching Power Relay, 5V dc Coil, 8A Switching Current, SPDT
- RS Stock No.:
- 683-9425
- Mfr. Part No.:
- G6CU-2114P-US 5DC
- Brand:
- Omron
Subtotal (1 unit)*
£6.67
(exc. VAT)
£8.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 93 unit(s) ready to ship
- Plus 10 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.67 |
*price indicative
- RS Stock No.:
- 683-9425
- Mfr. Part No.:
- G6CU-2114P-US 5DC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Latching | Yes | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 125V dc | |
| Length | 20mm | |
| Coil Resistance | 125Ω | |
| Depth | 15mm | |
| Minimum Operating Temperature | -25°C | |
| Height | 10mm | |
| Contact Material | Silver | |
| Maximum Operating Temperature | +70°C | |
| Maximum Switching Power AC | 2 kVA | |
| Maximum Switching Power DC | 240 W | |
| Application | Power | |
| Dimensions | 20 x 10 x 15mm | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Latching Yes | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 20mm | ||
Coil Resistance 125Ω | ||
Depth 15mm | ||
Minimum Operating Temperature -25°C | ||
Height 10mm | ||
Contact Material Silver | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Power AC 2 kVA | ||
Maximum Switching Power DC 240 W | ||
Application Power | ||
Dimensions 20 x 10 x 15mm | ||
- COO (Country of Origin):
- JP
G6C Latching
Low power consumption
Flux protection or fully sealed types with single or double winding coils available
Compact size, L20xW15xH10 mm
Flux protection or fully sealed types with single or double winding coils available
Compact size, L20xW15xH10 mm
Approvals
UL, CSA
