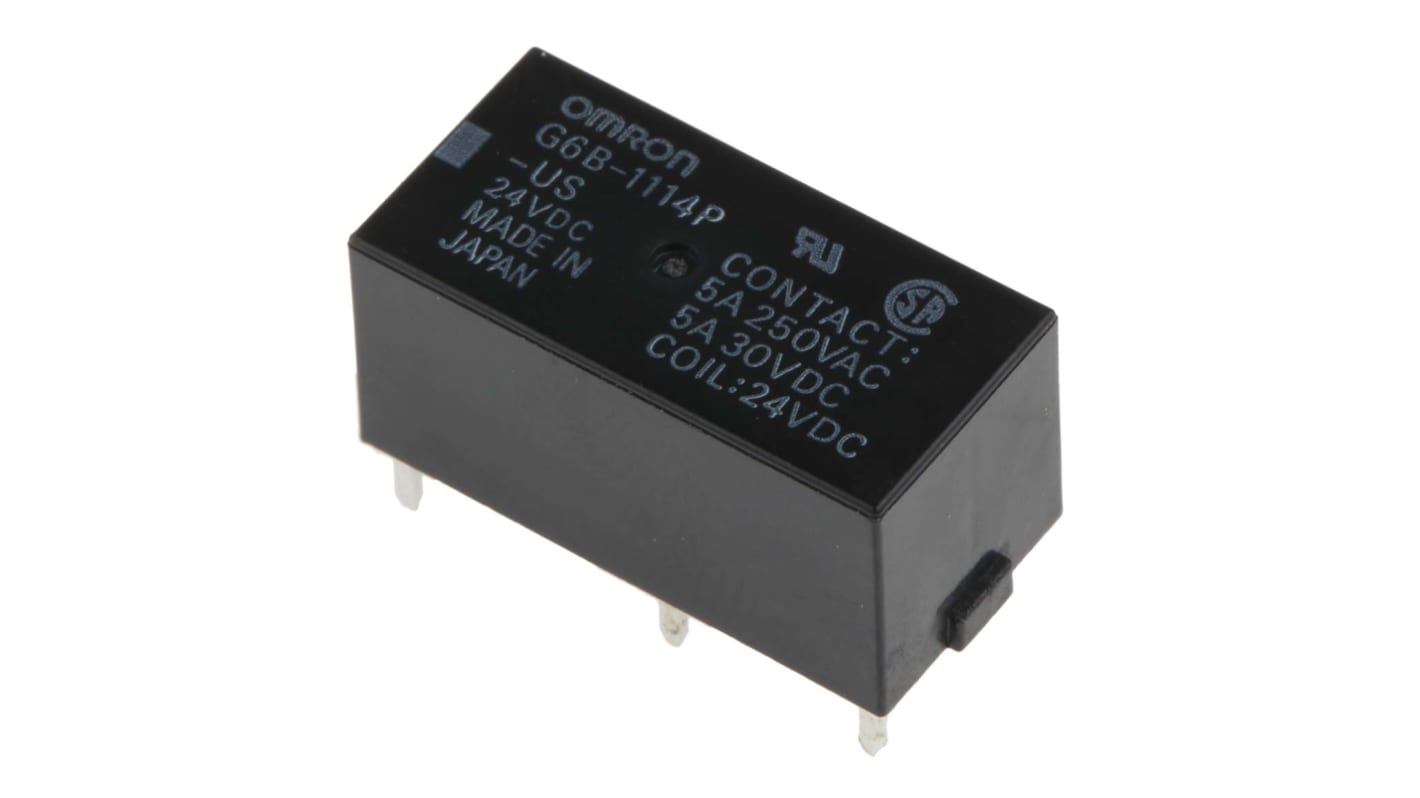

Omron PCB Power Relay, 24V dc Coil, 5A Switching Current, SPST

RS Stock No.:: 683-9346
Distrelec Article No.:: 137-03-795
Mfr. Part No.:: G6B-1114P-US 24DC
Brand:: Omron

Omron PCB Power Relay, 24V dc Coil, 5A Switching Current, SPST

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£5.70

(exc. VAT)

£6.84

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

461 unit(s) ready to ship
Plus 176 unit(s) ready to ship from another location
Plus 451 unit(s) shipping from 16 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 24	£5.70
25 - 49	£5.16
50 - 99	£4.63
100 - 249	£4.01
250 +	£3.48

*price indicative

RS Stock No.:: 683-9346
Distrelec Article No.:: 137-03-795
Mfr. Part No.:: G6B-1114P-US 24DC
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Product Type	Power Relay
	Contact Configuration	SPST
	Mount Type	PCB
	Series	G6B
	Terminal Type	Solder
	Switching Current	5A
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	380V ac
	Switching DC Voltage	125V dc
	Switching Power	360W
	Coil Resistance	2.9kΩ
	Maximum Operating Temperature	70°C
	Height	10mm
	Coil Power	200mW
	Length	21mm
	Standards/Approvals	VDE, UL, RoHS, EN, CSA
	Width	10mm
	Contact Material	Silver Alloy
	Contact Resistance	30mΩ

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Product Type Power Relay
	Contact Configuration SPST
	Mount Type PCB
	Series G6B
	Terminal Type Solder
	Switching Current 5A
	Minimum Operating Temperature -25°C
	Switching AC Voltage 380V ac
	Switching DC Voltage 125V dc
	Switching Power 360W
	Coil Resistance 2.9kΩ
	Maximum Operating Temperature 70°C
	Height 10mm
	Coil Power 200mW
	Length 21mm
	Standards/Approvals VDE, UL, RoHS, EN, CSA
	Width 10mm
	Contact Material Silver Alloy
	Contact Resistance 30mΩ

PCB Relay G6B Data Sheet

COO (Country of Origin):: JP

Omron G6B Series Power Relay, 24V DC Coil Voltage, 5A Switching Current - G6B-1114P-US 24DC

This power relay is designed for high-performance applications within the automation and electrical fields. Featuring a Compact design with dimensions of 21mm in length, 10mm in depth, and 10mm in height, it operates on a Coil voltage of 24 V DC. This SPST configuration relay is PCB mountable, making it an excellent choice for streamlined integration within various systems, ensuring efficient power management.

Features & Benefits

• Supports a switching current of 5A for reliable operation
• Can handle a maximum switching voltage of 380V AC
• Built to withstand up to 125V DC for diverse use
• Offers a high isolation Coil to contact of 3 kV AC
• Utilises a through hole Terminal type for secure mounting

Applications

• Ideal for power control in automation systems
• Utilised in industrial electrical equipment installations
• Designed for switching loads in heavy machinery
• Suitable for DC power in electronics
• Perfect for integration in consumer electrical products

What are the environmental limits this relay can operate in?

It can function effectively within an operating temperature range from -25°C to +70°C, providing versatility in varying conditions.

How does the relay ensure durability in operational cycles?

With a life cycle rated for 50 million electrical operations, it provides longevity and reliability even in demanding environments.

What type of Terminal does this relay use for installation?

This relay features a through hole Terminal type, ensuring secure and stable mounting on PCB boards.
