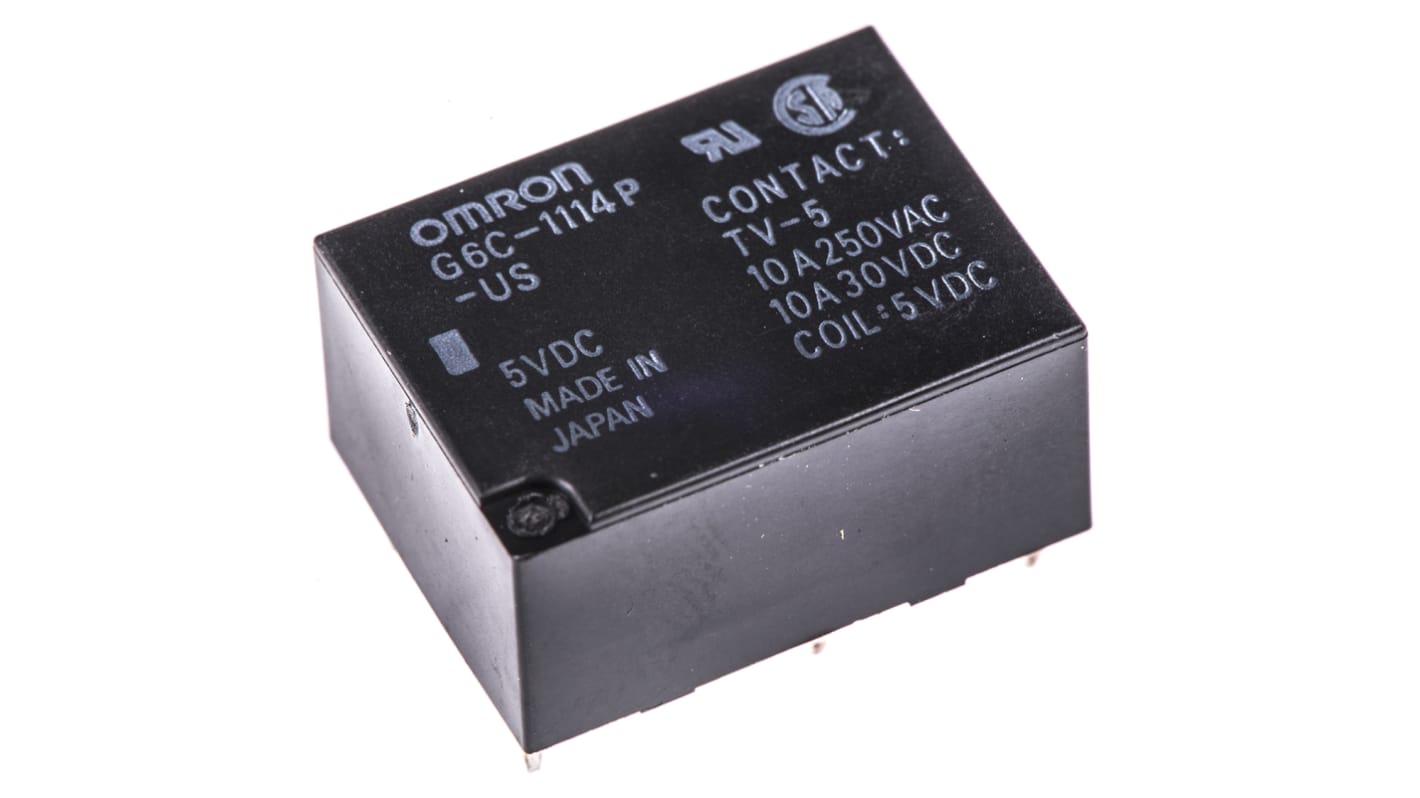

Omron PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPST
- RS Stock No.:
- 683-9368
- Mfr. Part No.:
- G6C-1114P-US 5DC
- Brand:
- Omron
133 In stock - FREE next working day delivery available
14 available from Europe for delivery within 1 working day(s).
Added
Price Each
£6.13
(exc. VAT)
£7.36
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £6.13 |
| 25 - 49 | £5.09 |
| 50 + | £4.83 |
- RS Stock No.:
- 683-9368
- Mfr. Part No.:
- G6C-1114P-US 5DC
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
G6C Series
Low power consumption, 200mW
Flux protection or fully sealed types available
Compact size, L20xW15xH10 mm
Flux protection or fully sealed types available
Compact size, L20xW15xH10 mm
Approvals
UL, CSA (SEV for those with SV within the Manufacturer part number)
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 5V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 10A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 20mm |
| Coil Resistance | 125Ω |
| Maximum Operating Temperature | +70°C |
| Series | G6C |
| Contact Material | Silver |
| Minimum Operating Temperature | -25°C |
| Height | 10mm |
| Depth | 15mm |
| Maximum Switching Power AC | 2.5 kVA |
| Maximum Switching Power DC | 300 W |
| Application | Power |
- RS Stock No.:
- 683-9368
- Mfr. Part No.:
- G6C-1114P-US 5DC
- Brand:
- Omron
