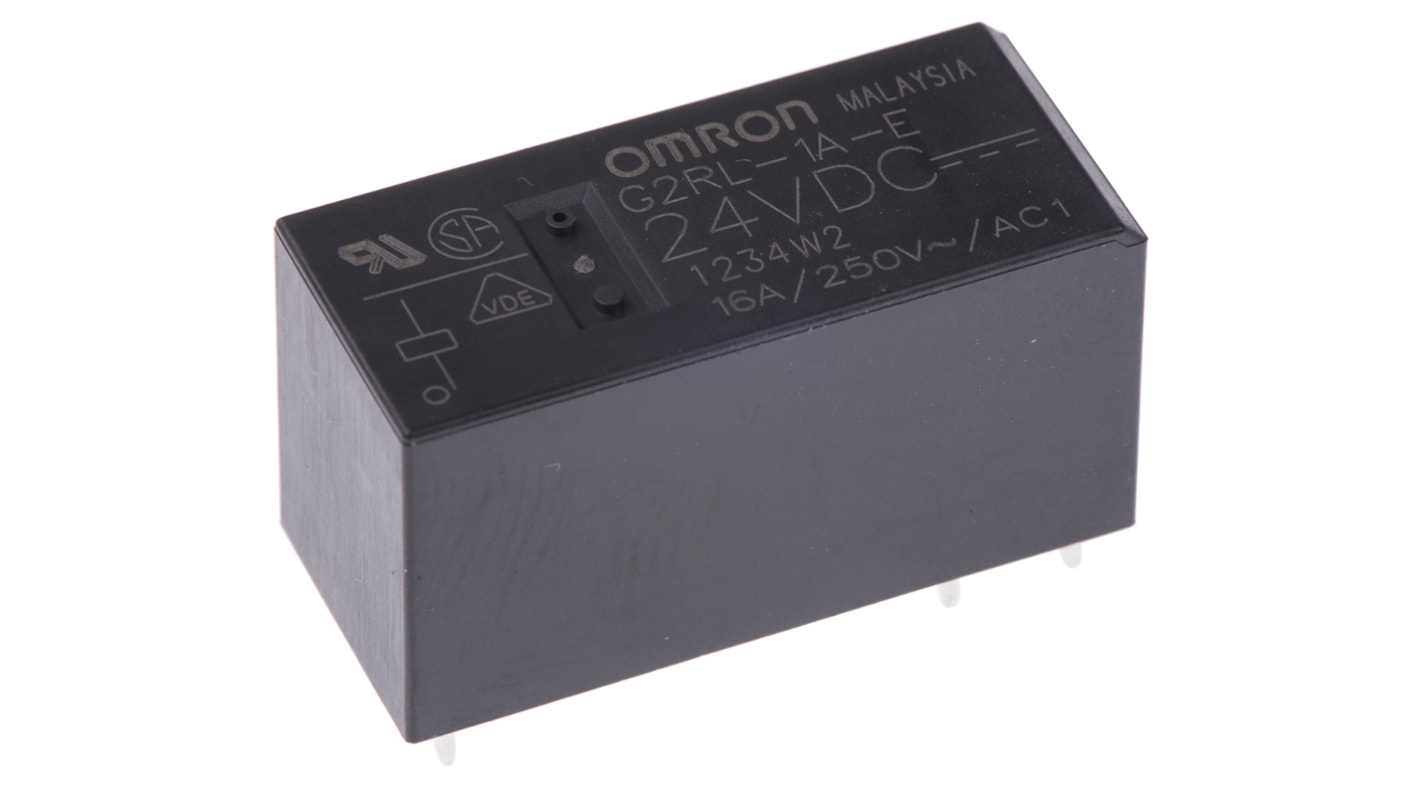

Omron PCB Power Relay, 24 V dc Coil, 16 A Switching Current, SPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£3.32

(exc. VAT)

£3.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 42 unit(s) ready to ship from another location
  • Plus 81 unit(s) shipping from 12 March 2026
  • Plus 100 unit(s) shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£3.32
25 - 49£2.69
50 - 99£2.43
100 - 249£2.23
250 +£1.87

*price indicative

Packaging Options:
RS Stock No.:
683-8842
Mfr. Part No.:
G2RL-1A-E DC24
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Product Type

Power Relay

Coil Voltage

24 V dc

Contact Configuration

SPST

Mount Type

PCB

Series

G2RL

Terminal Type

Through Hole

Switching Current

16 A

Switching DC Voltage

300 V dc

Switching AC Voltage

440 V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Coil Resistance

1.4kΩ

Width

12.7 mm

Height

15.7mm

Length

29mm

Standards/Approvals

IEC/EN 60079-15, RoHS, VDE

Coil Power

400mW

Contact Material

Silver Alloy

Contact Resistance

100mΩ

G2RL Series


Low profile 15.7mm height (max.)

10mm creepage/clearance

Meets EN60335-1 requirements

Tracking resistance: CTI>250

H15.7, W12.7, D29mm

Approvals

UL recognised; CSA certified; VDE
