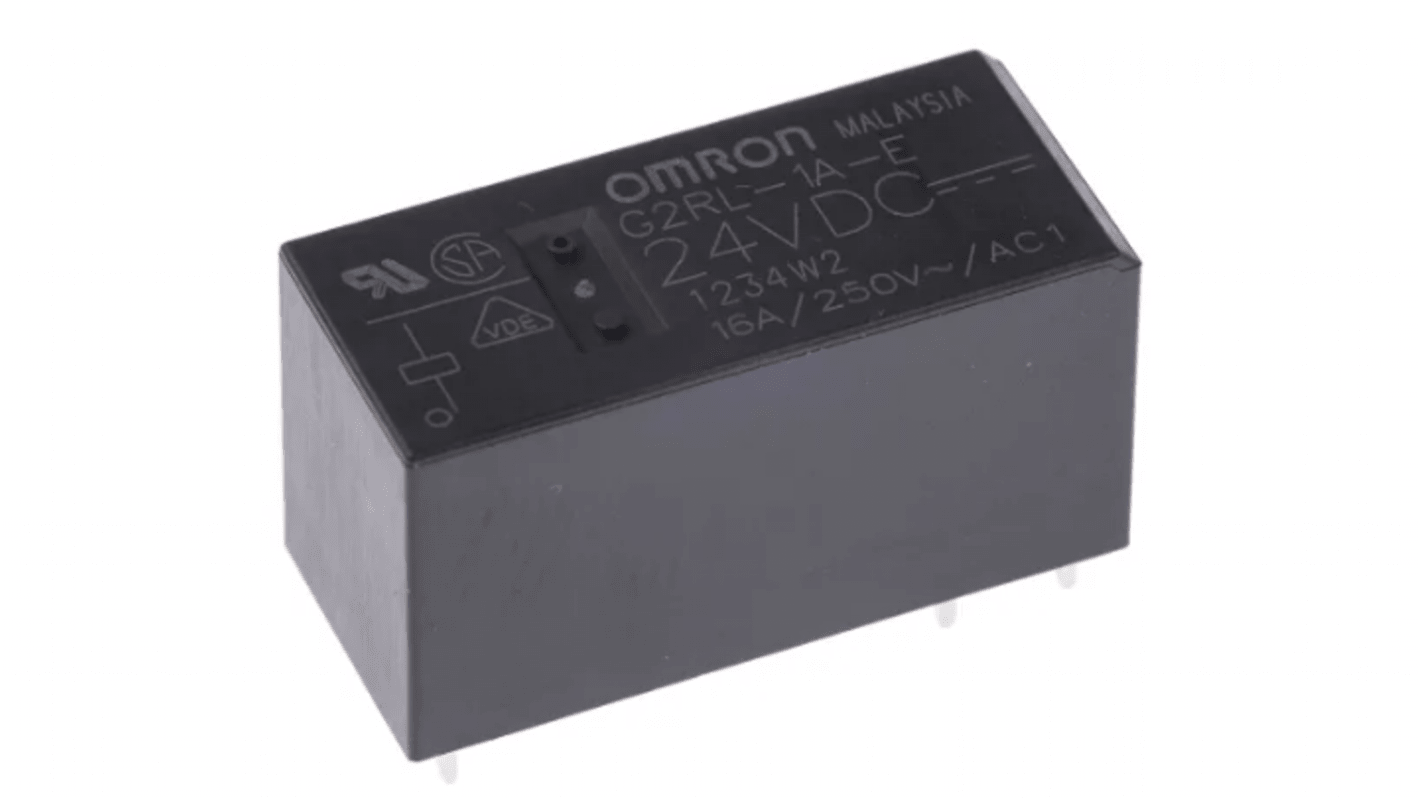

Omron PCB Mount Non-Latching Relay, 24V dc Coil, 12A Switching Current, SPST
- RS Stock No.:
- 232-6222
- Mfr. Part No.:
- G2RL-1A-E-PW1 DC24
- Brand:
- Omron
Available to back order for despatch 05/05/2025
Price Each (In a Tube of 100)
£4.053
(exc. VAT)
£4.864
(inc. VAT)
Units | Per unit | Per Tube* |
|---|---|---|
| 100 - 400 | £4.053 | £405.30 |
| 500 - 900 | £3.968 | £396.80 |
| 1000 + | £3.883 | £388.30 |
*price indicative
- RS Stock No.:
- 232-6222
- Mfr. Part No.:
- G2RL-1A-E-PW1 DC24
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
The Omron G2RL series low profile power relay with 15.7 mm height, ideal for incorporation in miniature equipment's. It has a 1 pole and use for home appliances and industrial machinery.
A wide variety of single pole high-capacity (16 A)
IEC/EN 60335-1 conformed. (-HA Model)
Satisfies ambient operating temperature requirement of 85°C and 105°C (-CV Model)
Clearance and creepage distance: 8 mm / 8 mm min
Reduced power consumption with volt
IEC/EN 60335-1 conformed. (-HA Model)
Satisfies ambient operating temperature requirement of 85°C and 105°C (-CV Model)
Clearance and creepage distance: 8 mm / 8 mm min
Reduced power consumption with volt
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 12A |
| Number of Poles | 1 |
| Coil Resistance | 1.44 kΩ |
| Coil Power | 400mW |
| Isolation Coil To Contact | 10kV |
| Series | G2RL |
| Number of Coils | Single |
