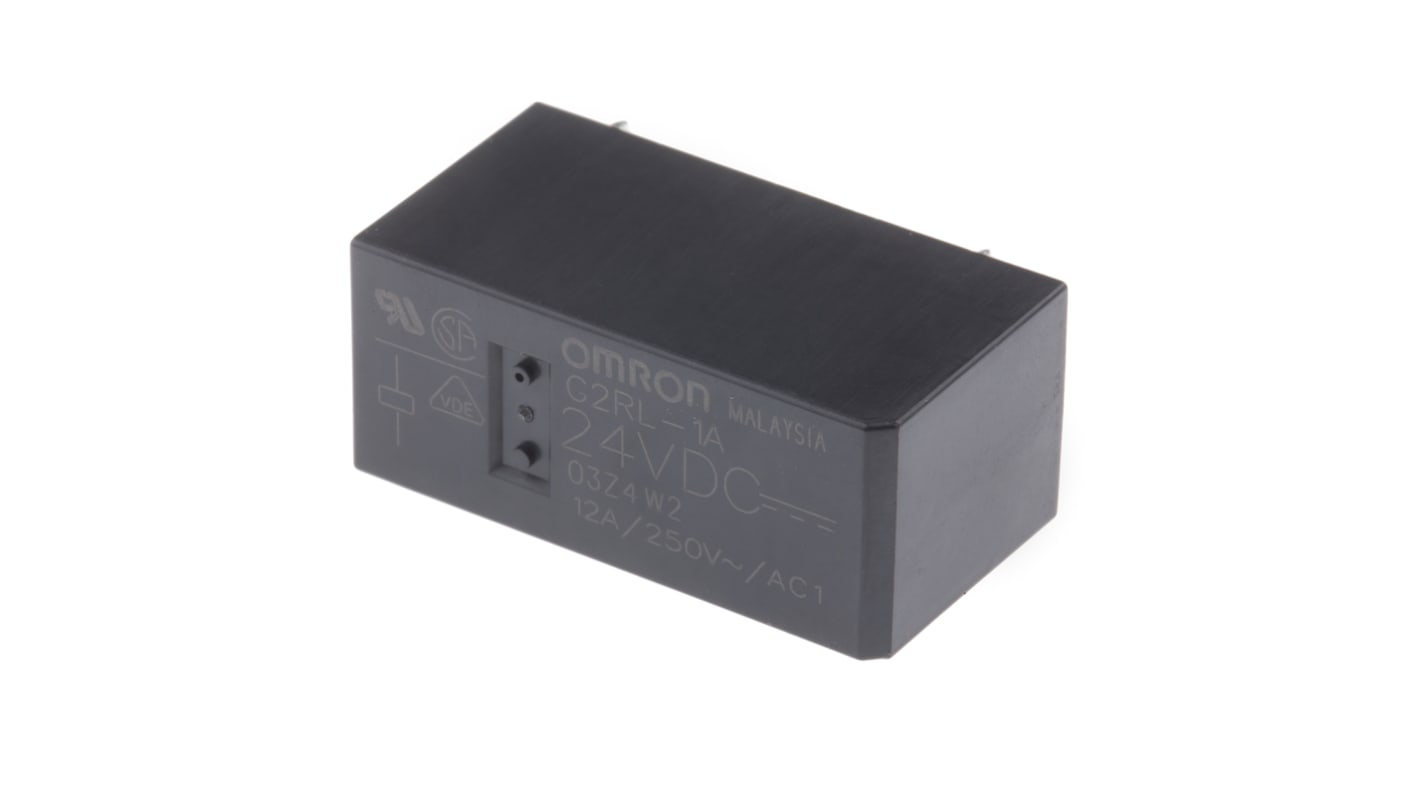

Omron PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£3.27

(exc. VAT)

£3.92

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
  • Plus 4 unit(s) shipping from 29 October 2025
  • Plus 50 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£3.27
25 - 49£2.74
50 - 99£2.62
100 - 249£2.55
250 +£2.02

*price indicative

Packaging Options:
RS Stock No.:
683-8808
Mfr. Part No.:
G2RL-1A DC24
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

10A

Number of Poles

1

Latching

No

Series

G2RL

Terminal Type

Through Hole

Length

29mm

Coil Resistance

1440Ω

Coil Power

400mW

Maximum Operating Temperature

+85°C

Height

15.7mm

Contact Material

Silver

Depth

12.7mm

Isolation Coil To Contact

5kV ac

Minimum Operating Temperature

-40°C

Life

20000000 (Electrical) cycles

Maximum Switching Power AC

3 kVA

Application

Power

G2RL Series


Low profile 15.7mm height (max.)
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm

Approvals

UL recognised; CSA certified; VDE
