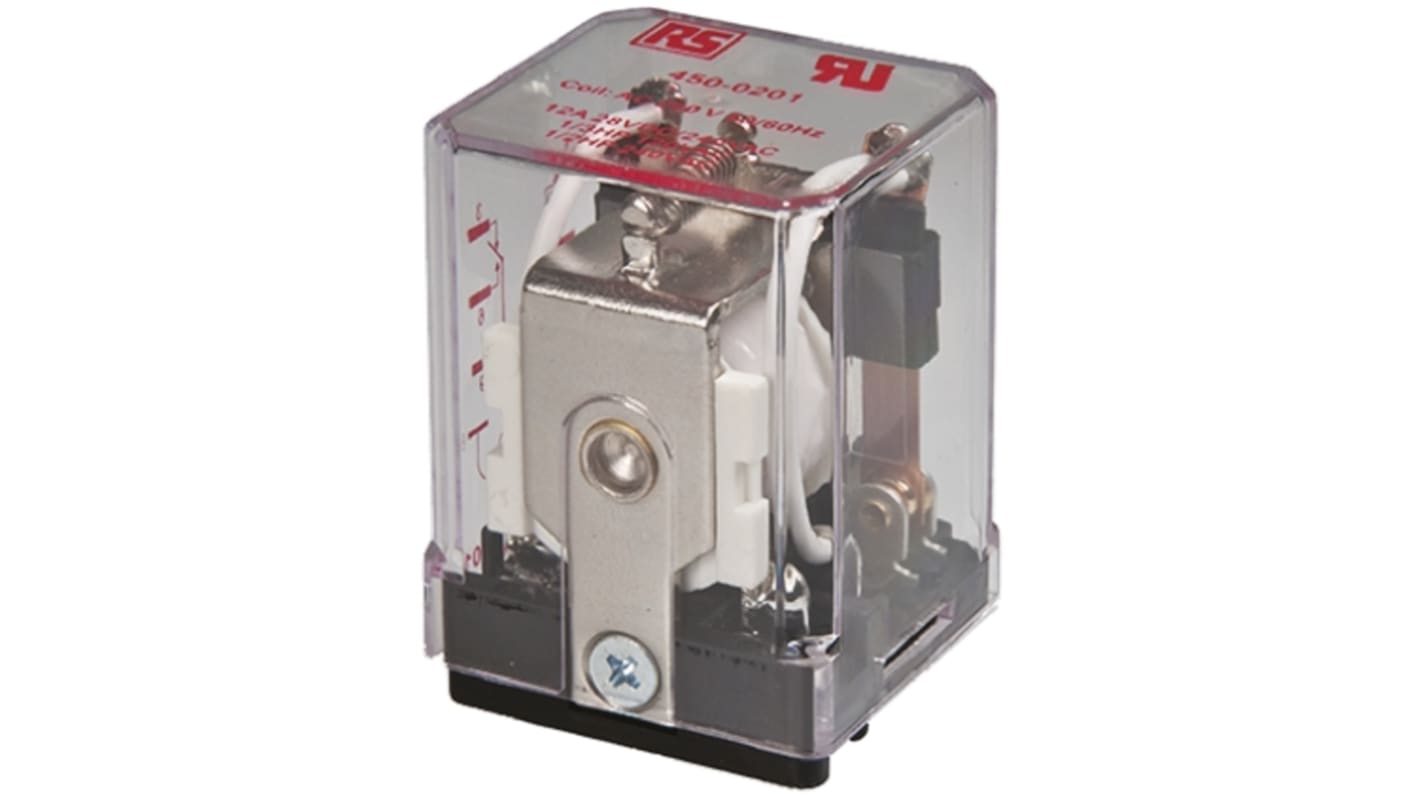

RS PRO Plug In Power Relay, 110V ac Coil, 12A Switching Current, 4PDT
- RS Stock No.:
- 613-3689
- Brand:
- RS PRO
Image representative of range
Subtotal (1 unit)*
£5.94
(exc. VAT)
£7.13
(inc. VAT)
FREE delivery for orders over £50.00
- 27 unit(s) ready to ship
Units | Per unit |
---|---|
1 + | £5.94 |
*price indicative
- RS Stock No.:
- 613-3689
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coil Voltage | 110V ac | |
Contact Configuration | 4PDT | |
Mounting Type | Plug In | |
Switching Current | 12A | |
Number of Poles | 4 | |
Latching | No | |
Terminal Type | PCB Pin | |
Maximum Switching Voltage AC | 240V ac | |
Maximum Switching Voltage DC | 28V dc | |
Length | 40.8mm | |
Coil Resistance | 1800Ω | |
Coil Power | 2.5W | |
Life | 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
Depth | 27.4mm | |
Standards Met | RoHS Compliant | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -45°C | |
Maximum Operating Temperature | +55°C | |
Isolation Coil To Contact | 2.2kV ac | |
Height | 35mm | |
Maximum Switching Power DC | 1.5 W | |
Maximum Switching Power AC | 2.5VA | |
Application | Power | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coil Voltage 110V ac | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 12A | ||
Number of Poles 4 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 240V ac | ||
Maximum Switching Voltage DC 28V dc | ||
Length 40.8mm | ||
Coil Resistance 1800Ω | ||
Coil Power 2.5W | ||
Life 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Depth 27.4mm | ||
Standards Met RoHS Compliant | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature +55°C | ||
Isolation Coil To Contact 2.2kV ac | ||
Height 35mm | ||
Maximum Switching Power DC 1.5 W | ||
Maximum Switching Power AC 2.5VA | ||
Application Power | ||
