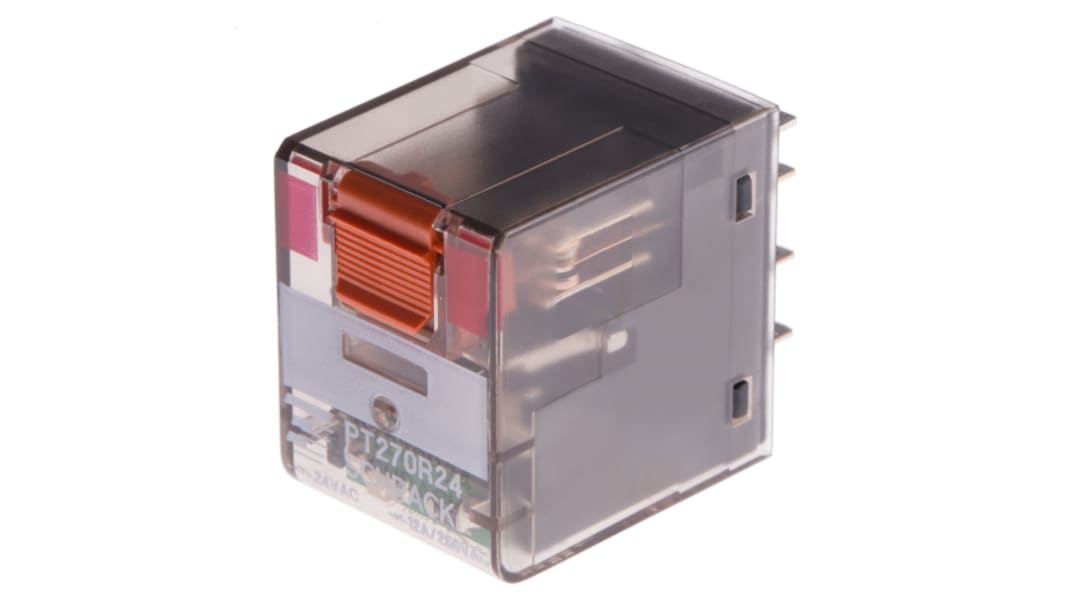

TE Connectivity PCB Mount Power Relay, 24V ac Coil, 12A Switching Current, DPDT

RS Stock No.:: 535-2413
Mfr. Part No.:: PT270R24 1415002-1
Brand:: TE Connectivity

TE Connectivity PCB Mount Power Relay, 24V ac Coil, 12A Switching Current, DPDT

25 In stock - FREE next working day delivery available

Added

Price Each

£9.65

(exc. VAT)

£11.58

(inc. VAT)

Units	Per unit
1 +	£9.65

RS Stock No.:: 535-2413
Mfr. Part No.:: PT270R24 1415002-1
Brand:: TE Connectivity

Technical Reference

Legislation and Compliance

Product Details

PT Series With LED Indicator

Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Isolation coil to contact; 2.5kV
Contact material: AgNi
Mechanical life; AC; 20 x 10⁶, DC; 30 x 10⁶
Plug-in type
Dimensions: W22.5 x D28 x H29 mm

Specifications

Attribute	Value
Coil Voltage	24V ac
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	12A
Number of Poles	2
Latching	No
Terminal Type	Quick Connect
Maximum Switching Voltage AC	400V ac
Length	28mm
Coil Resistance	192Ω
Coil Power	1W
Isolation Coil To Contact	2.5kV
Maximum Operating Temperature	+70°C
Series	PT
Minimum Operating Temperature	-40°C
Contact Material	Silver Nickel Alloy
Height	35mm
Depth	22.5mm
Maximum Switching Power AC	3 kVA
Application	Compact
