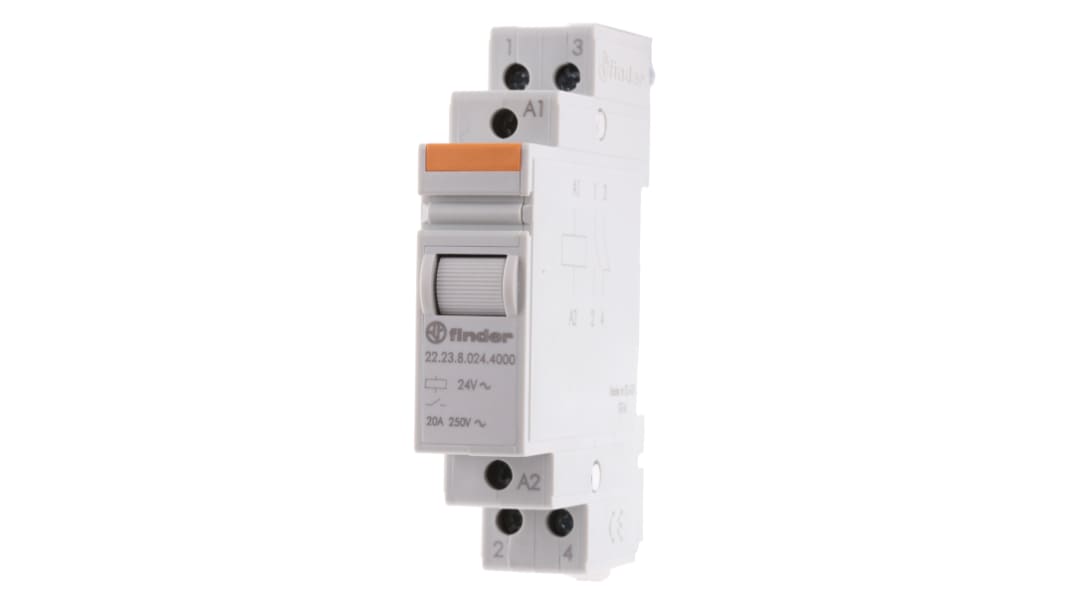

Finder DIN Rail Power Relay, 24V ac Coil, 20A Switching Current, SPST-NC, SPST-NO
- RS Stock No.:
- 511-1155
- Mfr. Part No.:
- 22.23.8.024.4000
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£33.27
(exc. VAT)
£39.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
- Plus 15 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £33.27 |
5 - 9 | £32.25 |
10 + | £30.85 |
*price indicative
- RS Stock No.:
- 511-1155
- Mfr. Part No.:
- 22.23.8.024.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V ac | |
Contact Configuration | SPST-NC, SPST-NO | |
Mounting Type | DIN Rail | |
Switching Current | 20A | |
Number of Poles | 3 | |
Latching | No | |
Series | 22 Series | |
Terminal Type | Screw | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 24V dc | |
Coil Resistance | 41Ω | |
Coil Power | 3W | |
Standards Met | CE, EAC | |
Height | 84mm | |
Depth | 58.4mm | |
Contact Material | Silver Alloy | |
Life | 500000 Cycles | |
Maximum Operating Temperature | +40°C | |
Minimum Operating Temperature | -40°C | |
Isolation Coil To Contact | 4kV | |
Maximum Switching Power AC | 5 kVA | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V ac | ||
Contact Configuration SPST-NC, SPST-NO | ||
Mounting Type DIN Rail | ||
Switching Current 20A | ||
Number of Poles 3 | ||
Latching No | ||
Series 22 Series | ||
Terminal Type Screw | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 24V dc | ||
Coil Resistance 41Ω | ||
Coil Power 3W | ||
Standards Met CE, EAC | ||
Height 84mm | ||
Depth 58.4mm | ||
Contact Material Silver Alloy | ||
Life 500000 Cycles | ||
Maximum Operating Temperature +40°C | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 4kV | ||
Maximum Switching Power AC 5 kVA | ||
- COO (Country of Origin):
- IT
Finder 22 Series Power Relay, 24V AC Coil Voltage, 20A Switching Current - 22.23.8.024.4000
This power relay is a modular monostable relay designed for high-performance applications up to 20A. With a robust 24V AC coil voltage, this device supports various contact configurations, including SPST-NC and SPST-NO. Constructed for DIN rail mounting, it features a compact design with dimensions of 58.4mm in depth and 84mm in height, ensuring ease of installation in diverse settings.
Features & Benefits
• Contact material is AgSnO2 for enhanced conductivity
• High switching capacity of 5kVA for versatile applications
• Insulation strength of 4kV between coil and contacts prevents faults
• Operational temperature range from -40°C to +40°C for reliability
• 500,000 mechanical life cycles provide long-lasting service
• Terminal type allows for easy screw connections
• High switching capacity of 5kVA for versatile applications
• Insulation strength of 4kV between coil and contacts prevents faults
• Operational temperature range from -40°C to +40°C for reliability
• 500,000 mechanical life cycles provide long-lasting service
• Terminal type allows for easy screw connections
Applications
• Ideal for control systems in hotel room energy management
• Suitable for streetlights and car park lighting solutions
• Utilised in bathroom lighting control and automation
• Effective in pump control in industrial settings
• Supports office lighting control for enhanced energy efficiency
• Suitable for streetlights and car park lighting solutions
• Utilised in bathroom lighting control and automation
• Effective in pump control in industrial settings
• Supports office lighting control for enhanced energy efficiency
What is the maximum switching voltage for this relay?
The maximum switching voltage for AC applications is 250V AC, while for DC, it is 24V DC, making it flexible for different systems.
How does the coil resistance affect the relay's operation?
A coil resistance of 41 Ω ensures efficient operation with a coil power consumption of only 3W, reducing energy use while maintaining performance.
What contact configurations are available for this relay?
The relay offers a choice between SPST-NO and SPST-NC configurations, providing flexibility for various electrical control setups.
What types of devices can this relay control?
This relay can effectively control lighting systems, pumps, and other high-current devices, making it suitable for various automation needs.
How is the relay mounted for installation?
The relay is designed for direct DIN rail mounting, allowing for quick and secure installation in control panels and distribution boards.
